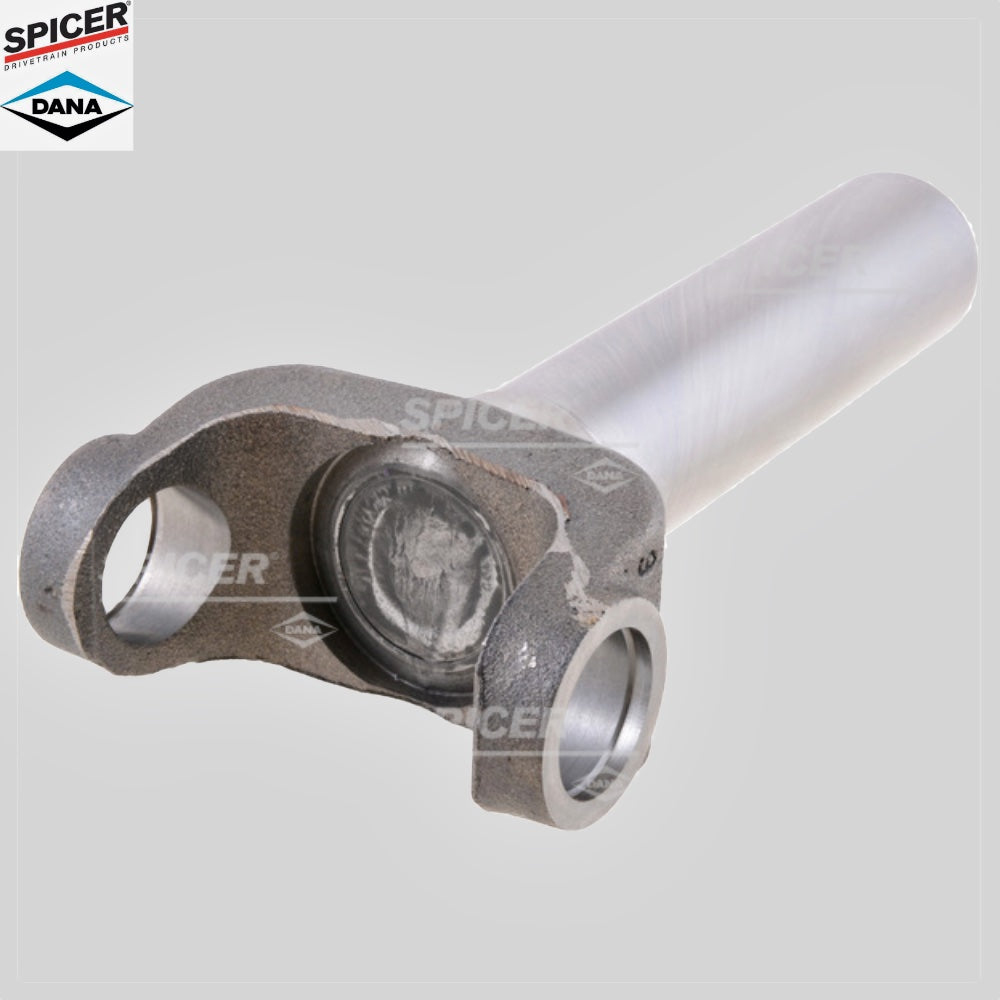

Spicer C4 Transmission Slip Yoke 1330 series - 27/28 spline - 2-3-13691X
Spicer C4 Transmission Slip Yoke 1330 series - 27/28 spline - 2-3-13691X
Couldn't load pickup availability
High Quality and Brand-New Transmission Slip Yoke
Compatible U-Joint Kits: SPI-5-213X,SPI-5-1330X,SPI-SPL25-1X
|
Brand |
Spicer |
|
Series |
1330 |
|

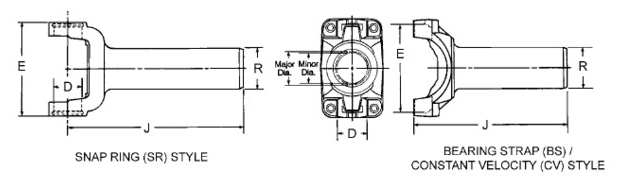

Outside Yoke Dimension (E) In. |
3.875 |
|
Bearing Cap Diameter (D) In. |
1.062 |
|
To End Of Spline (J) In. |
7.860 |
|
Hub Diameter (R) In. |
1.497 |
|
Spline O.D. (STD) |
1.220 |
|
No. Of Splines |
27/28 I |
|
Involute |
I |
|
Style |
SR |
|
Material |
Steel |
|
Number of Splines Based On |
28 |
|
VMRS |
024002038 |
|
C-Line to Washer Face |
1 |
|
Type of Hub |
Ground Hub |
|
Package Type |
EACH |
|
Package Qty |
1 |
|
Weight |
2.65 LB |
Fast and free US continental shipping
No hassle returns
1 Year warranty
ISO9001 Quality control
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
-
Free Shipping
We will cover the shipping costs on this item to all the USA contiguous States. We have you covered!
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
