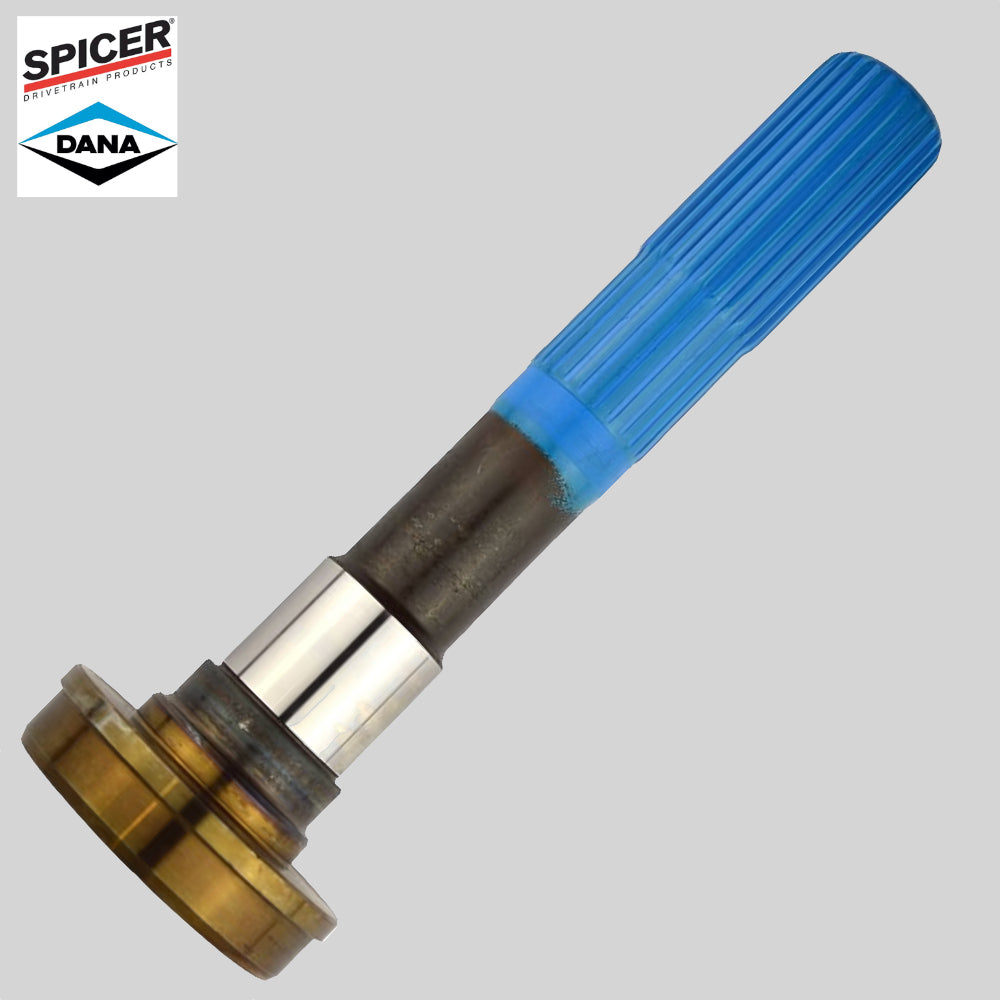

3-53-2571 Spicer Driveshaft Midship Tube Shaft 1310-1480 Series 23/24l Splines
3-53-2571 Spicer Driveshaft Midship Tube Shaft 1310-1480 Series 23/24l Splines
Brand: Spicer
Couldn't load pickup availability
For Use With Outboard Slip Yoke
Invoice MIDSHIP TUBE SHAFT
Series 1310-1480
Material Steel
Spline O.D. 1.5620
Number Of Splines 23/24 I
Involute Y
Fits Tube Diameter 3.5
Fits Tube Wall 0.083
Spline End To Brg Shoulder (Y) 8.750
Spline End To Weld (K) In. 9.875
Spline Length (L) In. 3.000
Shoulder Diameter (B) In. 1.812
Shoulder Length (G) In. 0.880
Bearing Diameter (C) In. 1.575
VMRS 024002060
Butt Diameter 3.345
Style 2
Bearing Diameter (Max) 1.5752
Bearing Diameter (Min) 1.5747
Bearing Diameter Length 1.5
Bearing Diameter Radius 0.19
