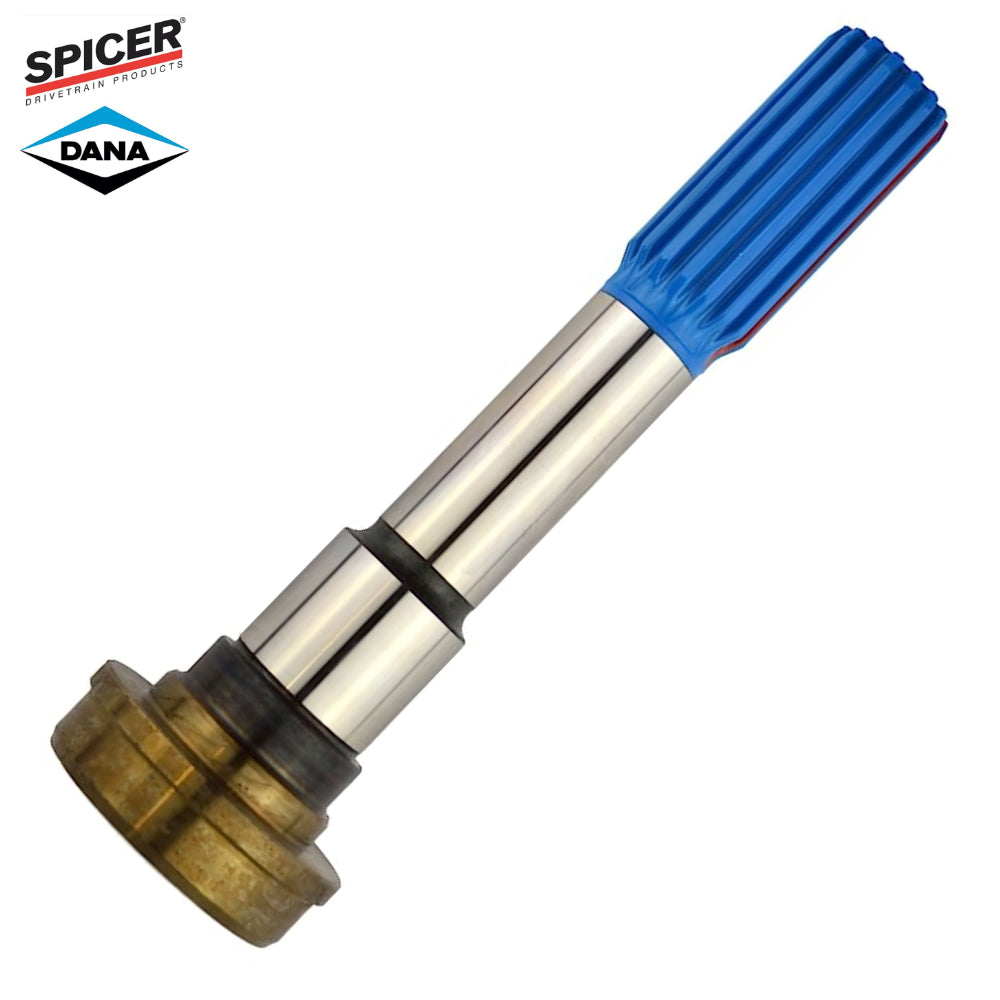

Spicer Driveshaft Midship Tube Shaft 1310-1410 Series 1.500x16 Spline 3-53-1551
Spicer Driveshaft Midship Tube Shaft 1310-1410 Series 1.500x16 Spline 3-53-1551
Brand: Spicer
Couldn't load pickup availability
For Use With Outboard Slip Yoke
Series 1310-1410
Invoice MIDSHIP TUBE SHAFT
Material Steel
Spline O.D. 1.5000
Number Of Splines 15/16
Involute N
Fits Tube Diameter 3
Fits Tube Wall 0.083
Spline End To Brg Shoulder (Y) 8.240
Spline End To Weld (K) In. 9.375
Spline Length (L) In. 3.000
Shoulder Diameter (B) In. 1.812
Shoulder Length (G) In. 0.812
Bearing Diameter (C) In. 1.575
VMRS 024002060
Butt Diameter 2.845
Style 2
Bearing Diameter (Max) 1.5752
Bearing Diameter (Min) 1.5747
Bearing Diameter Length 1.5
Bearing Diameter Radius 0.19
