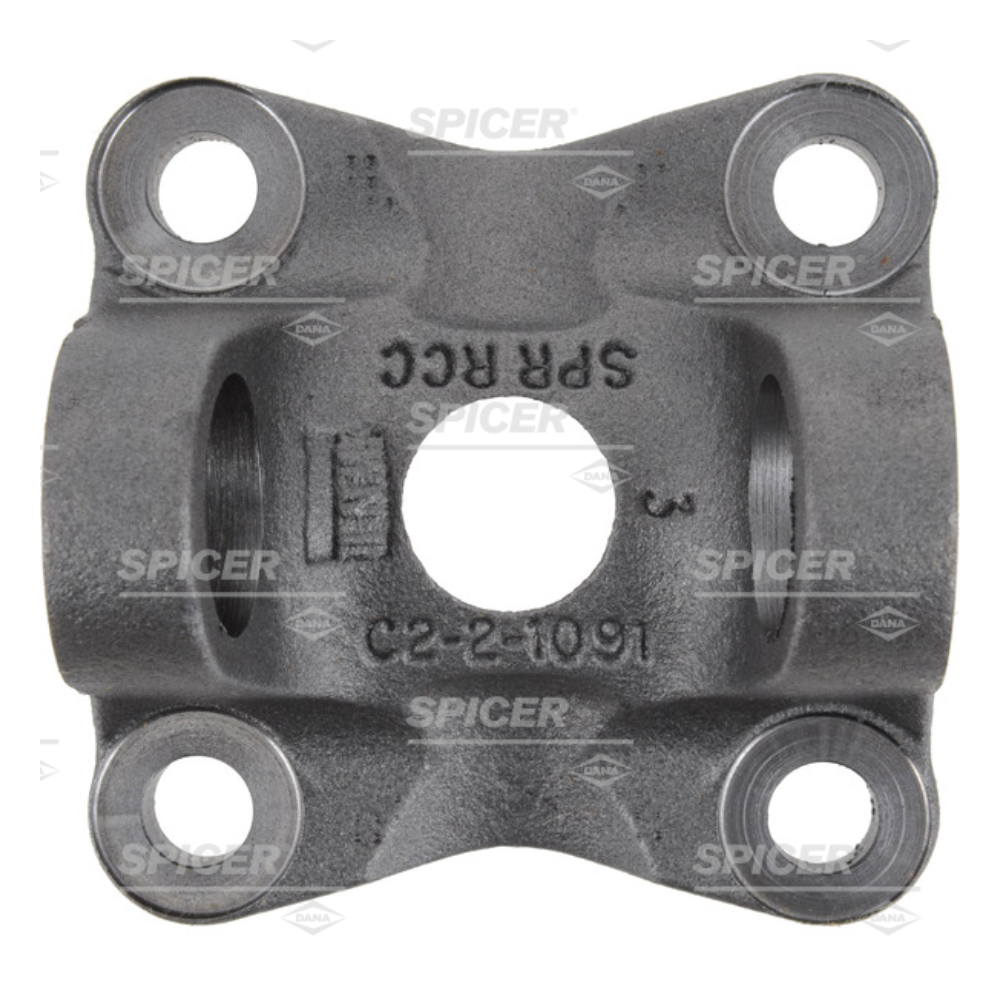

SPICER Driveshaft Flange Yoke 1310 Series 4x .489 Holes on 3.937BC - 2-2-1989
SPICER Driveshaft Flange Yoke 1310 Series 4x .489 Holes on 3.937BC - 2-2-1989
SPICER Driveshaft Flange Yoke 1310 Series 4x .489 Holes on 3.937BC - 2-2-1989

SPICER Driveshaft Flange Yoke 1310 Series 4x .489 Holes on 3.937BC - 2-2-1989

SKU: 2-2-1989S-EB-USA-M-1
Regular price
$45.00
Sale price
$45.00
Shipping calculated at checkout.

You are buying a Brand New SPICER Flange Yoke



Brand



Spicer

Series



1310

Flange Or Swing Dia. In.

(A)

4.906

Bolt Circle Dia. In.

(B)

3.937

Bolt Hole Dia. In



.489 - DRILLED

Number Of Bolt Holes



4

Pilot Dia. M=Male F=Female

(C)

2.162 - FEMALE

Flange Face To C/L In.

(G)

1.930

Material



Steel

Outside Yoke Dimension In.

(E)

3.469

Yoke Bearing Dimension In.

(D)

1.062

Design



Square

VMRS



024002016

Package Qty



1

Weight



2.36 LB

Country of Origin



United States
