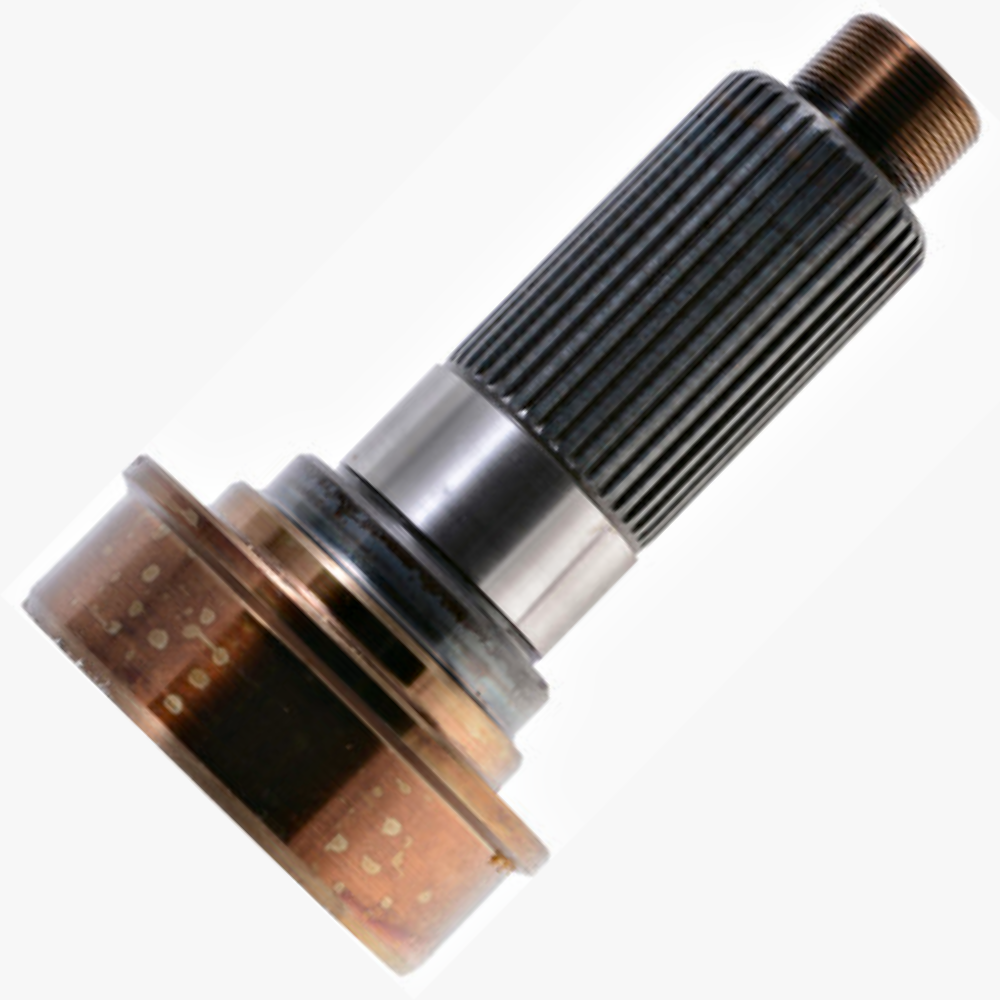

Spicer 6-53-411 Driveshaft Midship Stub Shaft 4"x.180" Tube Dia 1710 Series
Spicer 6-53-411 Driveshaft Midship Stub Shaft 4"x.180" Tube Dia 1710 Series
Brand: Spicer
Couldn't load pickup availability
Brand Spicer
Brand: Spicer
For Use With: End Yoke Or Companion Flange
Series: 1710
Spline O.D.: 1.950
Number Of Splines: 38 I
Involute: Yes
Fits Tube Diameter: 4.000
Fits Tube Wall: .180
Spline End To Brg Shoulder (Y): 4.060
Spline End To Weld (K) In.: 5.150
Spline Length (L) In.: 2.840
Thread Size: 1.250-18
Shoulder Diameter (B) In.: 2.440
Shoulder Length (G) In.: .812
Bearing Diameter (C) In.: 1.968
Butt Diameter: 3.743
Style: 2
Bearing Diameter (Max): 1.9685
Bearing Diameter (Min): 1.968
Fast shipping within USA Contiguous
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
Share
![Spicer 6-53-411 Driveshaft Midship Stub Shaft 4"x.180" Tube Dia 1710 Series](http://makodriveshafts.com/cdn/shop/products/6-53-411s.jpg?v=1636988521&width=1445)
![Spicer 6-53-411 Driveshaft Midship Stub Shaft 4"x.180" Tube Dia 1710 Series](http://makodriveshafts.com/cdn/shop/products/midshipdiagram_701dcd14-a48f-42fc-84fa-78d2760c18e2.jpg?v=1636988521&width=1445)
![](http://makodriveshafts.com/cdn/shop/files/Midship_Spline_Diagram.jpg?v=1725404006&width=1500)
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
