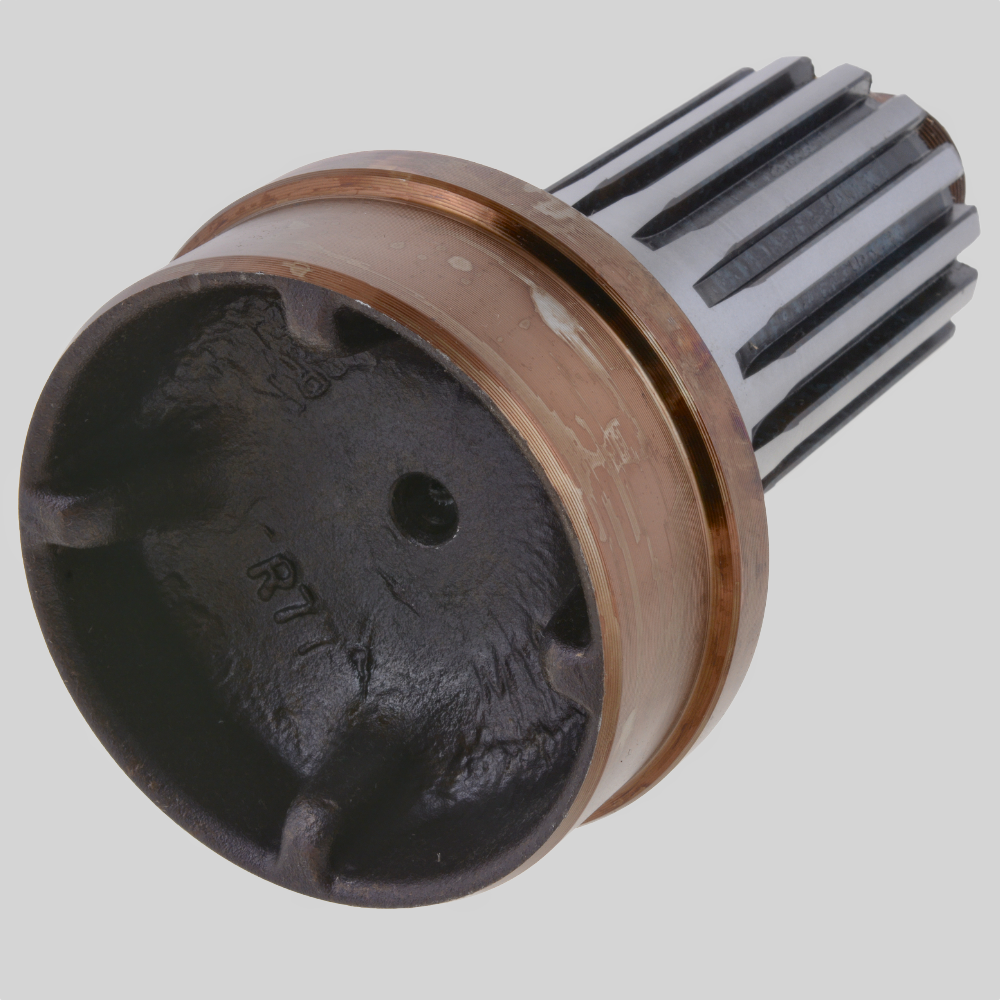

Spicer 6-53-311 Driveshaft Midship Stub Shaft 1710 Series fits Tube Dia 4"x.134"
Spicer 6-53-311 Driveshaft Midship Stub Shaft 1710 Series fits Tube Dia 4"x.134"
Brand: Spicer
Couldn't load pickup availability
Made in USA
Brand: Spicer
For Use With: End Yoke Or Companion Flange
Series: 1710
Material: Steel
Spline O.D.: 2.350
Number Of Splines: 16
Involute: N
Fits Tube Diameter: 4.000
Fits Tube Wall: .134
Spline End To Brg Shoulder (Y): 4.000
Spline End To Weld (K) In.: 5.312
Spline Length (L) In.: 2.625
Thread Size: 1.250-18
Shoulder Diameter (B) In.: 2.875
Shoulder Length (G) In.: .812
Bearing Diameter (C) In.: 2.362
Butt Diameter: 3.743
Style: 2
Bearing Diameter (Max): 2.3622
Bearing Diameter (Min): 2.3617
