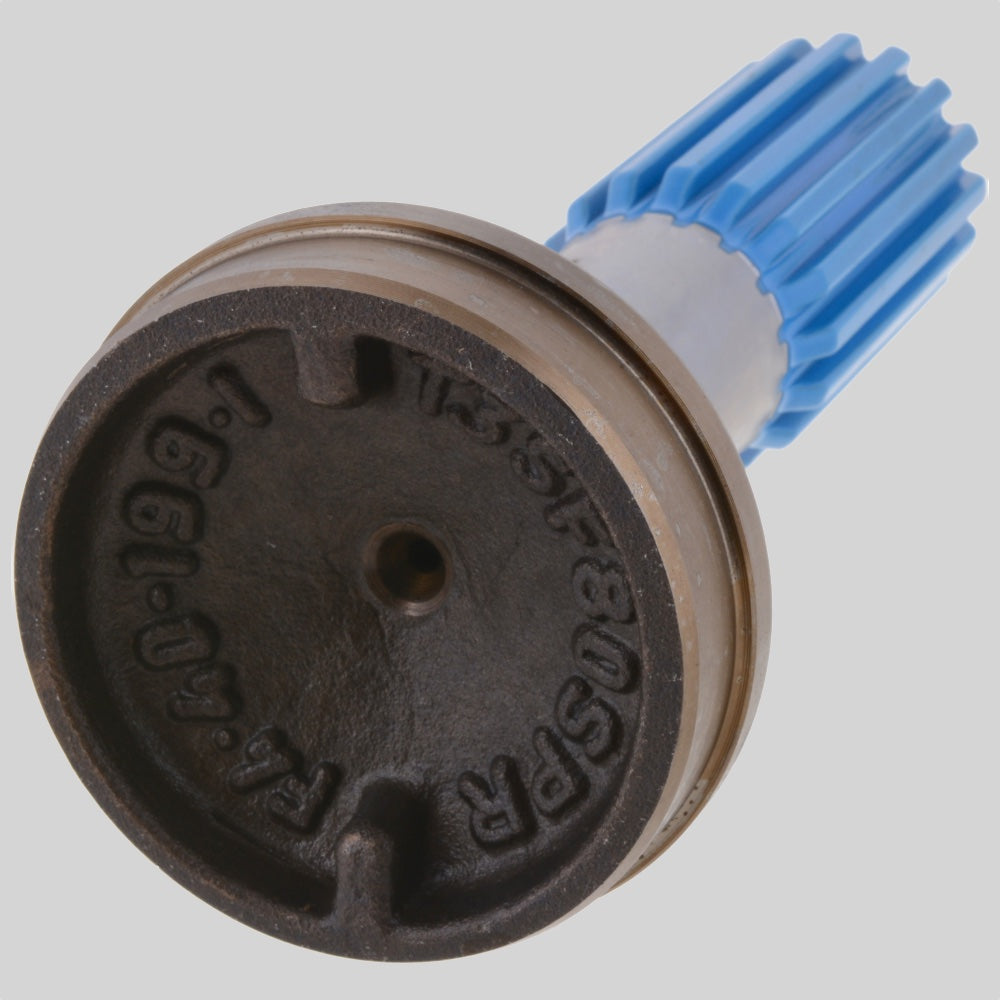

Spicer 4-40-761 Tube Stub Shaft 1.750 x 16 spline 3.5 x .095 Tube 1550 Series
Spicer 4-40-761 Tube Stub Shaft 1.750 x 16 spline 3.5 x .095 Tube 1550 Series
Spicer 4-40-761 Tube Stub Shaft 1.750 x 16 spline 3.5 x .095 Tube 1550 Series

Spicer 4-40-761 Tube Stub Shaft 1.750 x 16 spline 3.5 x .095 Tube 1550 Series

SKU: 4-40-761SB
Regular price
$81.00
Sale price
$81.00
Shipping calculated at checkout.

Brand: Spicer

Series: 1550

Glidecote Spline: Yes

Major Diameter: 1.750

Spline Count: 16

Involute Spline: No

Fits Tube Diameter: 3.500

Fit Tube Wall Thickness: .095

End Of Spline To Weld (K): 6.781

Length Of Spline (L): 3.000

End Of Spline To Radius (R): 5.812

Butt Diameter: 3.321

Fast shipping from Florida to USA Contiguous

Tracking number provided

OE Spec
