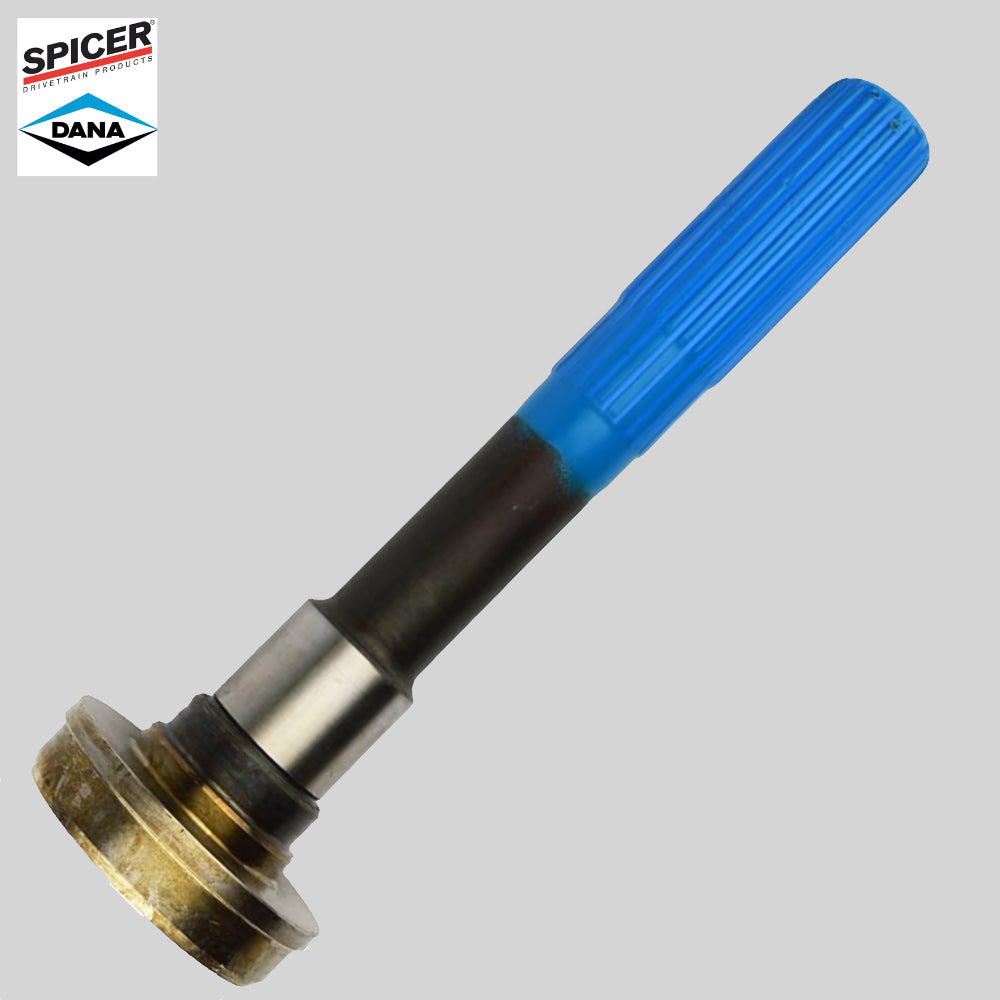

Spicer 3-53-2591 Driveshaft Midship Stub Shaft 1310-1480 Series 3.5" x.083" Tube
Spicer 3-53-2591 Driveshaft Midship Stub Shaft 1310-1480 Series 3.5" x.083" Tube
Brand: Spicer
Made in USA
Brand: Spicer
For Use With: Outboard Slip Yoke
Series: 1310-1480
Spline O.D.: 1.4370
Number Of Splines: 21/22 I
Involute: Yes
Fits Tube Diameter: 3.5
Fits Tube Wall: 0.083
Spline End To Brg Shoulder (Y): 9.510
Spline End To Weld (K) In.: 10.630
Spline Length (L) In.: 3.500
Shoulder Diameter (B) In.: 1.810
Shoulder Length (G) In.: 0.880
Bearing Diameter (C) In.: 1.575
Butt Diameter: 3.345
Style: 2
Bearing Diameter (Max): 1.5752
Bearing Diameter (Min): 1.5747
Bearing Diameter Length: 1.5
Bearing Diameter Radius: 0.188
