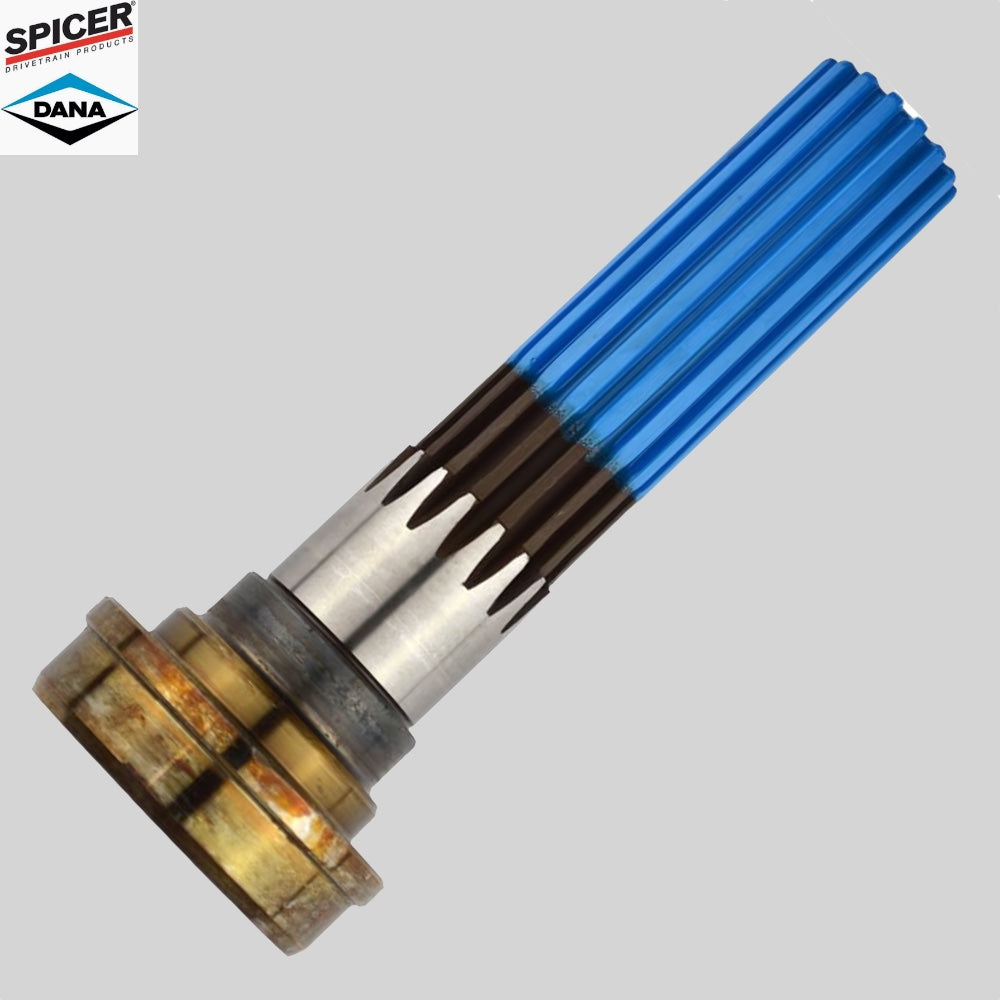

You are buying a SPICER Brand-
New Midship Stub Shaft
|
Brand |
Spicer |
|
For Use With |
Outboard Slip Yoke |
|
Series |
1310-1410 |
|
Material |
Steel |
|
Spline O.D. |
1.5000 |
|
Number Of Splines |
16 |
|
Involute |
N |
|
Fits Tube Diameter |
3 |
|
Fits Tube Wall |
0.083 |
|
Spline End To Brg Shoulder (Y) |
5.940 |
|
Spline End To Weld (K) In. |
7.062 |
|
Spline Length (L) In. |
4.438 |
|
Shoulder Diameter (B) In. |
1.810 |
|
Shoulder Length (G) In. |
0.875 |
|
Bearing Diameter (C) In. |
1.575 |
|
Butt Diameter |
2.845 |
|
VMRS |
024002060 |
|
Style |
1 |
|
Bearing Diameter (Max) |
1.5752 |
|
Bearing Diameter (Min) |
1.5747 |
|
Bearing Diameter Length |
1.5 |
|
Weight |
4.45 LB |
|
Country of Origin |
Mexico |
To be used with an Outboard Slip Yoke
