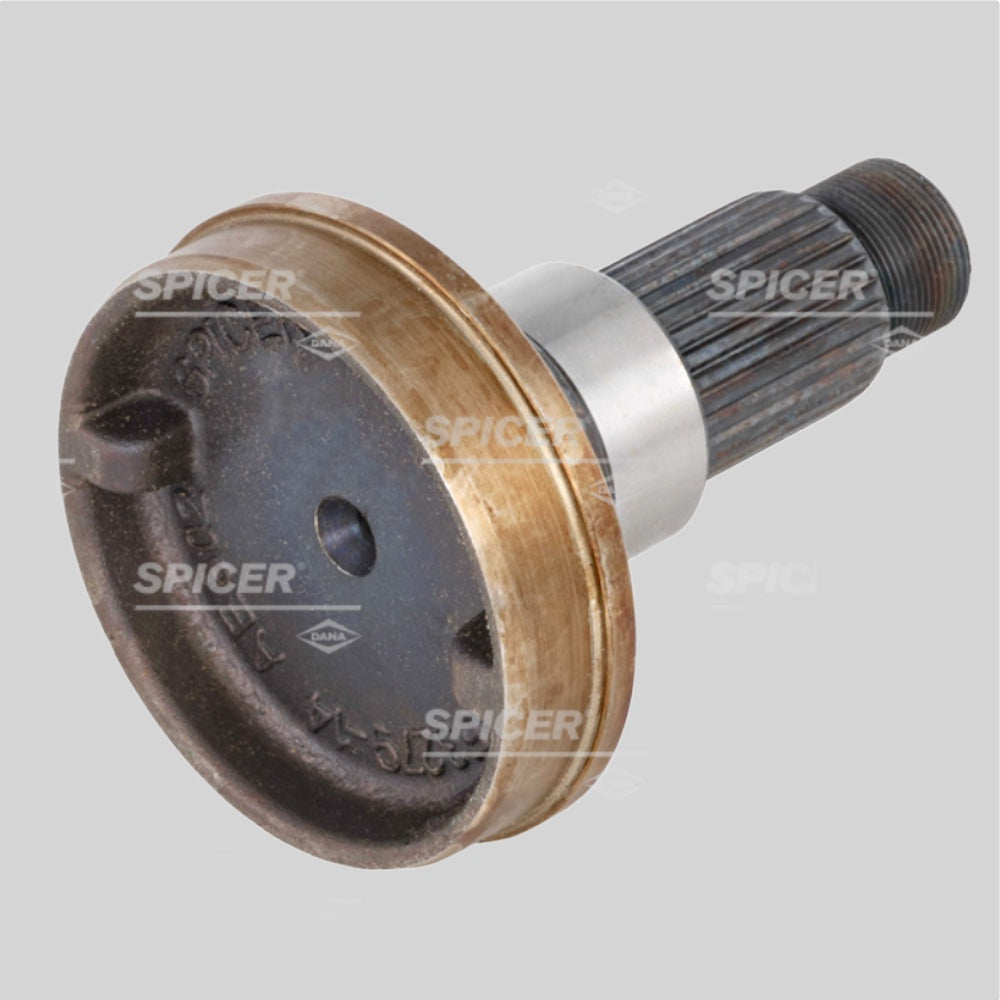

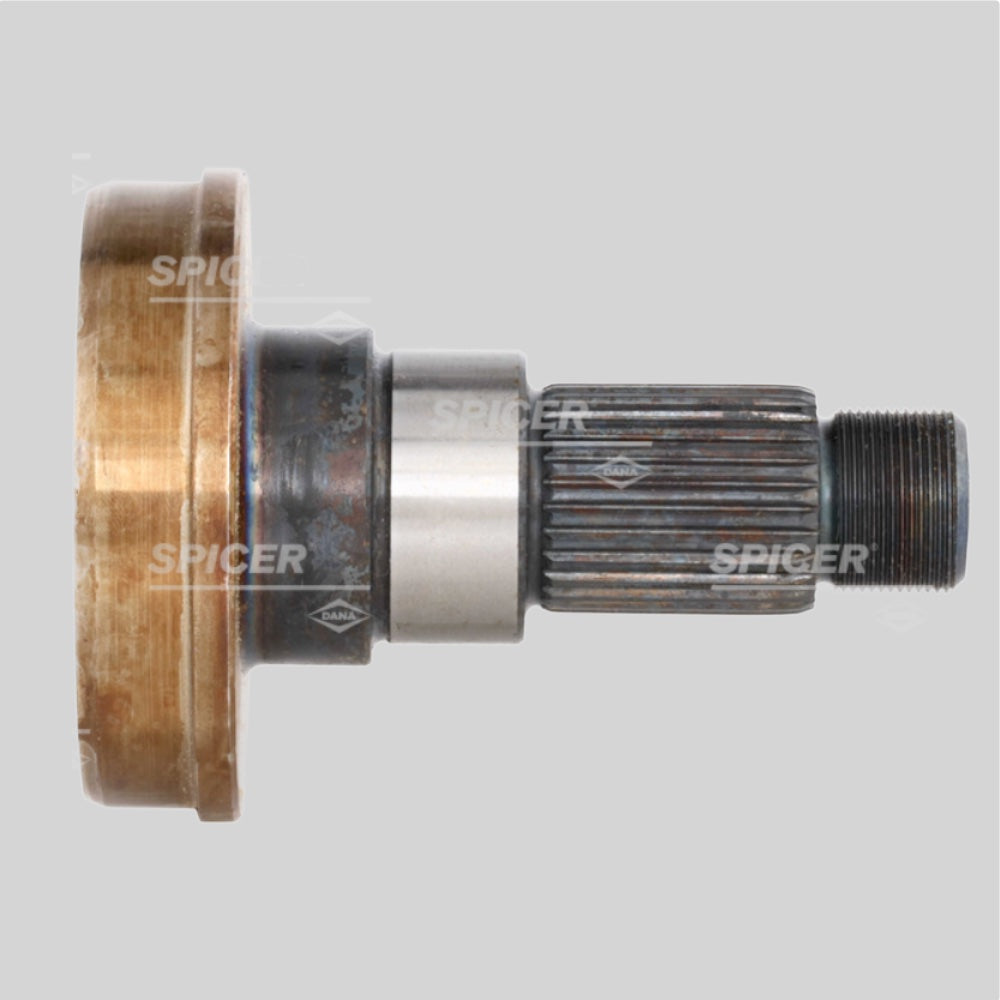

Spicer 3-53-08000 Driveshaft Midship Stub Shaft Tube Diameter 3.500" x .083"
Spicer 3-53-08000 Driveshaft Midship Stub Shaft Tube Diameter 3.500" x .083"
Brand: Spicer
Couldn't load pickup availability
Brand: Spicer
For Use With: END YOKE OR COMPANION FLANGE
Spline O.D.: 1.250
Number Of Splines: 29 I
Involute: Yes
Fits Tube Diameter: 3.500
Fits Tube Wall: .083
Spline End To Brg Shoulder (Y): 2.149
Spline End To Weld (K) In.: 3.268
Spline Length (L) In.: 1.527
Thread Size: 1.000-20
Shoulder Diameter (B) In.: 1.811
Shoulder Length (G) In.: .688
Bearing Diameter (C) In.: 1.574
Butt Diameter: 3.334
Style: 2
Bearing Diameter (Max): 1.5748
Bearing Diameter (Min): 1.5743
