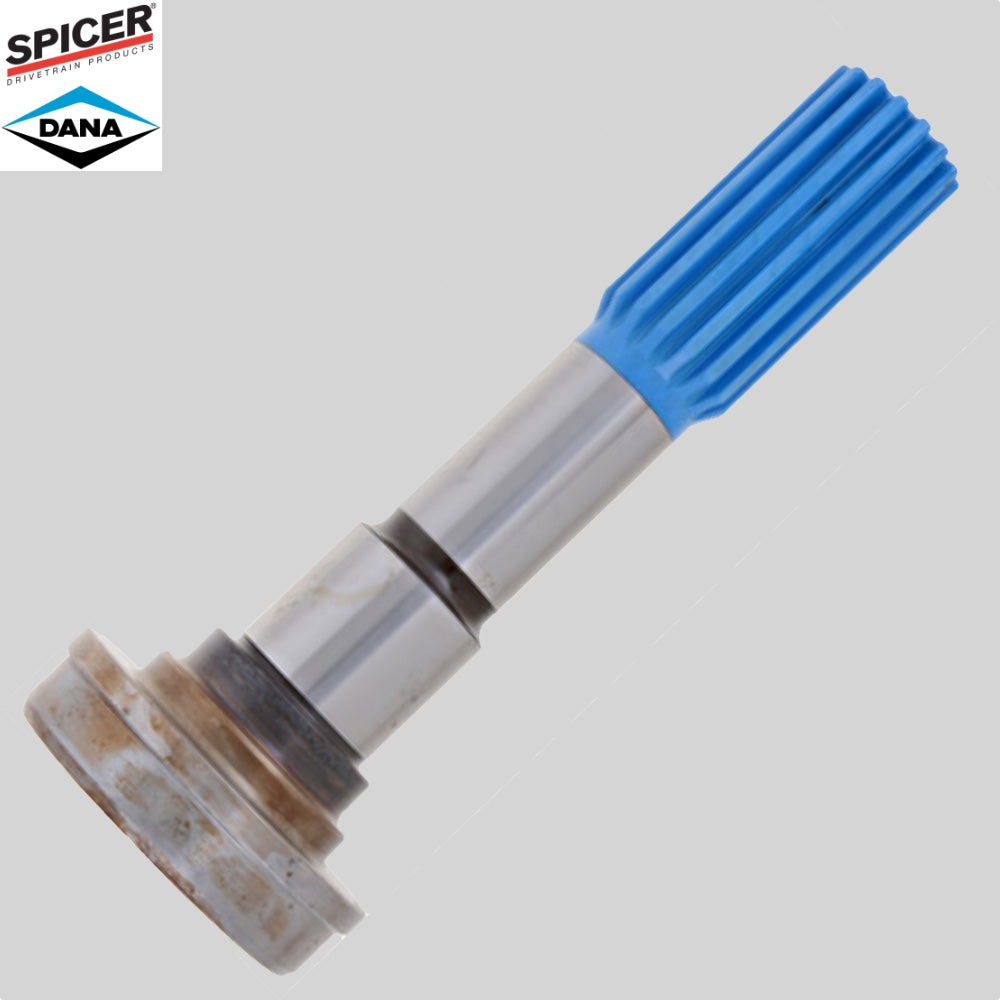

Spicer 3-53-07832 Driveshaft Midship Stub Shaft 1310-1480 Series 3.5"x.083" Tube
Spicer 3-53-07832 Driveshaft Midship Stub Shaft 1310-1480 Series 3.5"x.083" Tube
Brand: Spicer
Brand: Spicer
For Use With: Outboard Slip Yoke
Series: 1310-1480
Spline O.D.: 1.5620
Number Of Splines: 16
Involute: No
Fits Tube Diameter: 3.500
Fits Tube Wall: 0.083
Spline End To Brg Shoulder (Y): 7.470
Spline End To Weld (K) In.: 8.578
Spline Length (L) In.: 3.000
Shoulder Diameter (B) In.: 1.940
Shoulder Length (G) In.: 0.810
Bearing Diameter (C) In.: 1.575
Butt Diameter: 3.345
Style: 2
Bearing Diameter (Max): 1.5752
Bearing Diameter (Min): 1.5747
Bearing Diameter Length: 1.53
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
All orders received before 1pm EST should ship out on the same day that the purchase has been completed
Shipping is calculated on Business Days Only
We do not ship on weekends nor do we offer weekend deliveries
We offer Next Day shipping options, however do not accept liability
for delays encountered outside of our control such as courier delays or
weather conditions
For a shipping requirement not shown on the checkout page please contact us for more options
We do offer an LTL Freight service if required for large orders
We do offer International Shipping however we may be restricted depending on your region
Share
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
