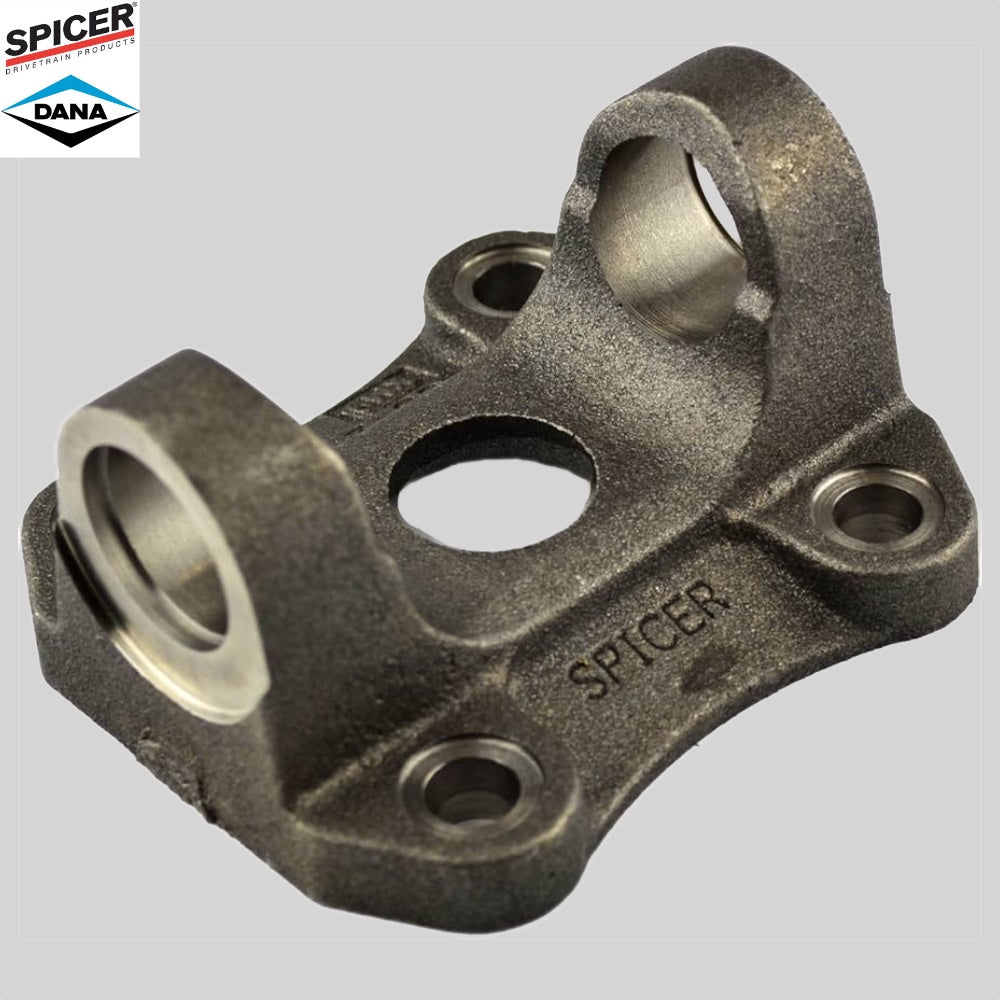

Spicer 3-2-1819 Driveshaft Flange Yoke 1410 series 4 x.500" Holes Made in USA
Spicer 3-2-1819 Driveshaft Flange Yoke 1410 series 4 x.500" Holes Made in USA
Brand: Spicer
Brand Spicer
Series 1410
Flange Or Swing Dia. In. (A) 5.240
Bolt Circle Dia. In. (B) 4.250
Bolt Hole Dia. In (B) .500 - DRILLED
Number Of Bolt Holes 4
Pilot Dia. M=Male F=Female (C) 2.000 - FEMALE
Flange Face To C/L In. (G) 1.620
Material Steel
Outside Yoke Dimension In.(E) 4.438
Yoke Bearing Dimension In. (D) 1.188
Design Square
VMRS 024002016
