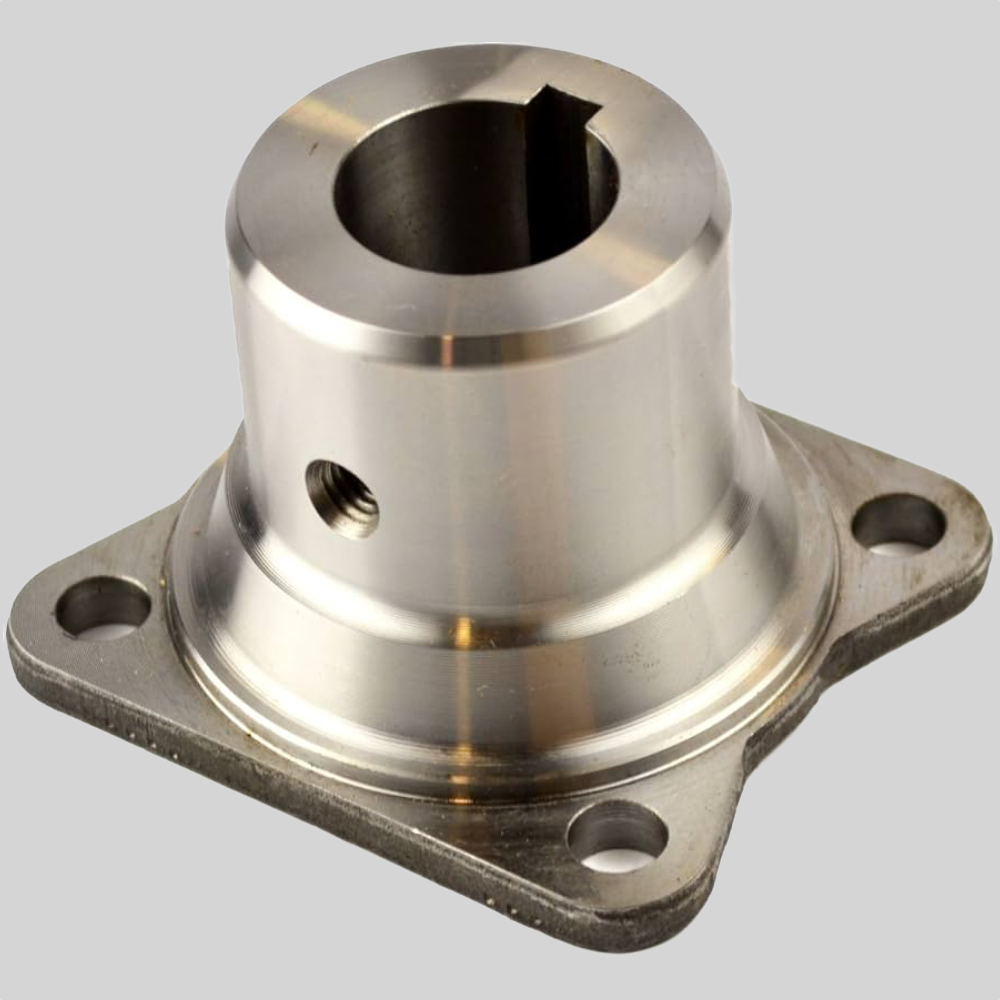

Spicer 3-1-163 Driveshaft Companion Flange 1350 Series USA Made 2.750" - F Pilot
Spicer 3-1-163 Driveshaft Companion Flange 1350 Series USA Made 2.750" - F Pilot
Brand: Spicer
Made in USA
Brand Spicer
Flange Type Rectangular
Series 1350
Flange Width Diameter (A) In. 4.562
Bolt Circle Diameter (B) In. 3.750
Number Of Holes 4
Bore Diameter (D) In. 1.25
Key Width (K) In. 0.312
Pilot Diameter (C) In. 2.750 - FEMALE
Set Screw Hole Diameter In. 0.375
Set Loc. ( Hub & Keyway At 12) 6
Hub Diameter (E) In. 2.250
Rect Length Thru Hole (F) 2.000
Rect Flange Face End Of Hub (G) 2.562
Circle Flange Face To End Of Hub 2.562
Bolt Hole Diameter (In.) .438-20 - TAPPED
Material Steel
Actual Hole Diameter (Max) 1.2505
Actual Hole Diameter (Min) 1.2495
Actual Keyway Width (Max) 0.3155
Actual Keyway Width (Min) 0.3135
