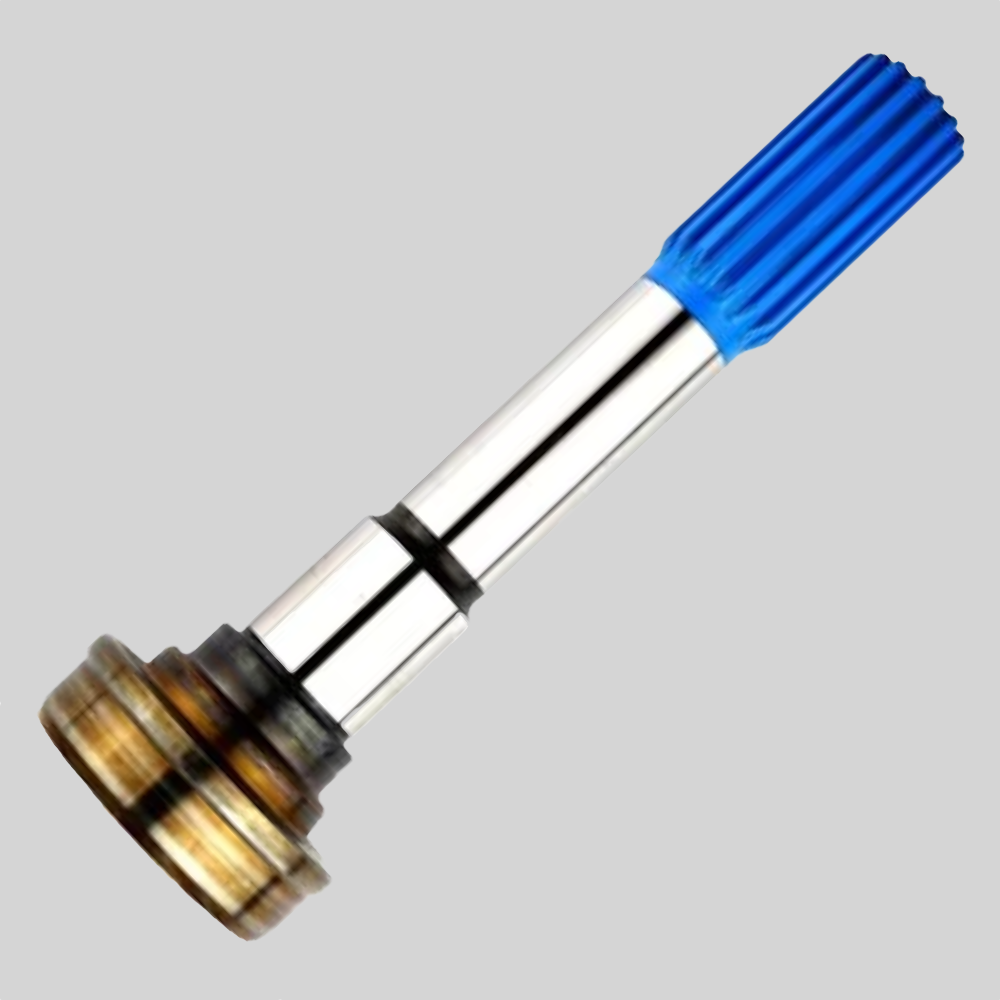

Spicer 2-53-691 Driveshaft Midship Stub Shaft 1210-1350 Series Tube 3" x .065"
Spicer 2-53-691 Driveshaft Midship Stub Shaft 1210-1350 Series Tube 3" x .065"
Brand: Spicer
Couldn't load pickup availability
Brand: Spicer
For Use With: Outboard Slip Yoke
Series: 1210-1350
Spline O.D.: 1.3750
Number Of Splines: 15/16
Involute: No
Fits Tube Diameter: 3
Fits Tube Wall: 0.065
Spline End To Brg Shoulder (Y): 7.812
Spline End To Weld (K) In.: 8.875
Spline Length (L) In.: 2.500
Shoulder Diameter (B) In.: 1.688
Shoulder Length (G) In.: 0.812
Bearing Diameter (C) In.: 1.378
Butt Diameter: 2.881
Style: 2
Bearing Diameter (Max): 1.3784
Bearing Diameter (Min): 1.3779
Bearing Diameter Length: 1.54
Bearing Diameter Radius: 0.19
