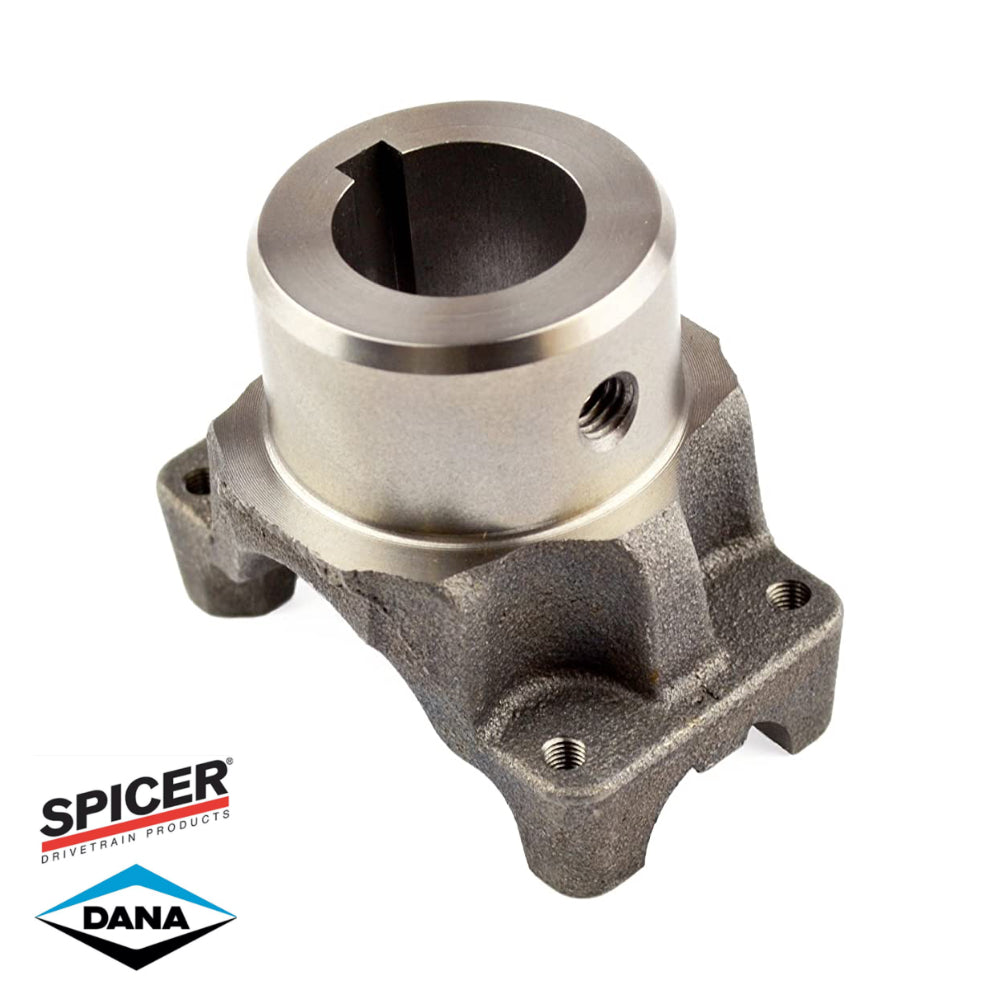

Spicer 2-4-783-1 Driveshaft End Yoke 1310 Series Round Bore 2.935" C/L To End
Spicer 2-4-783-1 Driveshaft End Yoke 1310 Series Round Bore 2.935" C/L To End
Couldn't load pickup availability
Made in USA
Brand Spicer
Series 1310
Invoice End yoke
Yoke Style BS
Hub Diameter R 2.120
C/L To End Hub S 2.935
Type Straight Round Hole
Outside Yoke Dimension (In) E 3.219
Yoke Bearing Dimension (In) D 1.062
Involute Spline N
Hole Diameter (In) P 1.250
Sae Keyway Width (In) X 0.314
Set Screw Hole Diameter (In) 0.375
Keyway Location W 12
Set Screw Location W 6
VMRS 024001003
Length Thru Hole Q 1.495
Material Steel
Joint Angle #1 22
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
