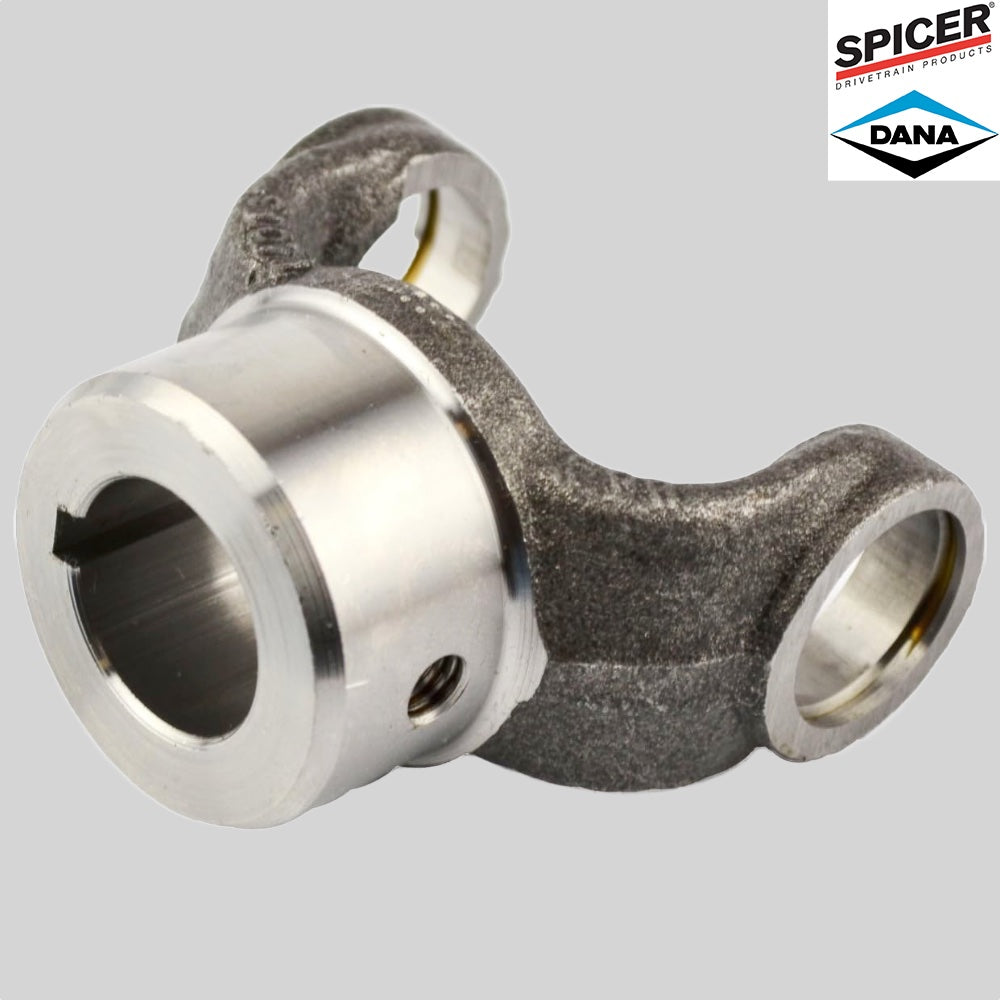

Spicer 2-4-503 Driveshaft End Yoke 1310 Series 1.125" Bore w/0.25" keyway

Spicer 2-4-503 Driveshaft End Yoke 1310 Series 1.125" Bore w/0.25" keyway

Part # / SKU: 2-4-503S

Regular price $69.00 USD
Regular price Sale price $69.00 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 8

You are buying a Brand New Genuine Spicer End Yoke



 Made in USA

Brand

Spicer

Series

1310

Yoke Style

SR

Hub Diameter R

2.125

C/L To End Hub S

2.562

Type

Straight Round Hole

Outside Yoke Dimension (In) E

3.469

Yoke Bearing Dimension (In) D

1.062

Involute Spline

N

Hole Diameter (In) P

1.125

Sae Keyway Width (In) X

0.250

Set Screw Hole Diameter (In)

0.375

Keyway Location W

12

Set Screw Location W

6

VMRS

056002014

Material

Steel

Joint Angle #1

17

Hole Diameter - Max

1.1255

Hole Diameter - Min

1.1245

Keyway Width - Max

0.253

Keyway Width - Min

0.251




Fast and Free shipping to USA Contiguous

No hassle returns

One Year warranty

OE Spec


Care Instructions

All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer

Shipping & Returns

This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
