Spicer 2-2-349 Driveshaft Flange Yoke 1310 series, 4x.380" Holes on 2.875" BC
Spicer 2-2-349 Driveshaft Flange Yoke 1310 series, 4x.380" Holes on 2.875" BC
Spicer 2-2-349 Driveshaft Flange Yoke 1310 series, 4x.380" Holes on 2.875" BC

Spicer 2-2-349 Driveshaft Flange Yoke 1310 series, 4x.380" Holes on 2.875" BC

SKU: 2-2-349S
Regular price
$75.00
Sale price
$75.00
Shipping calculated at checkout.

You are Buying a Brand New Genuine Spicer Flange Yoke



Brand

Spicer

Series

1310

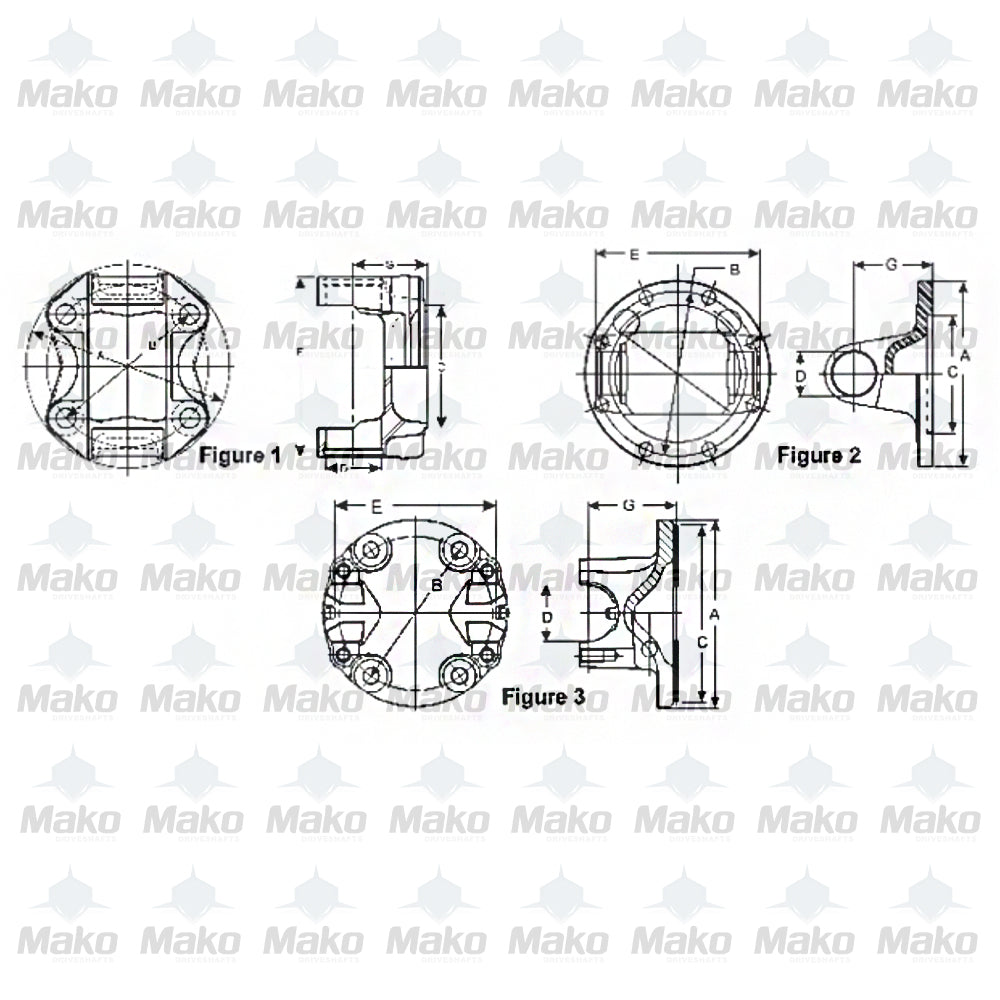

Flange Or Swing Dia. In. (A)

3.625

Bolt Circle Dia. In. (B)

2.875

Bolt Hole Dia. In (B)

.380 - DRILLED

Number Of Bolt Holes

4

Pilot Dia. M=Male F=Female (C)

3.625

Flange Face To C/L In. (G)

1.375

Outside Yoke Dimension In.(E)

3.469

Yoke Bearing Dimension In. (D)

1.062



Superior Quality

Fast and Free shipping to US Contiguous

No hassle returns

One year warranty
