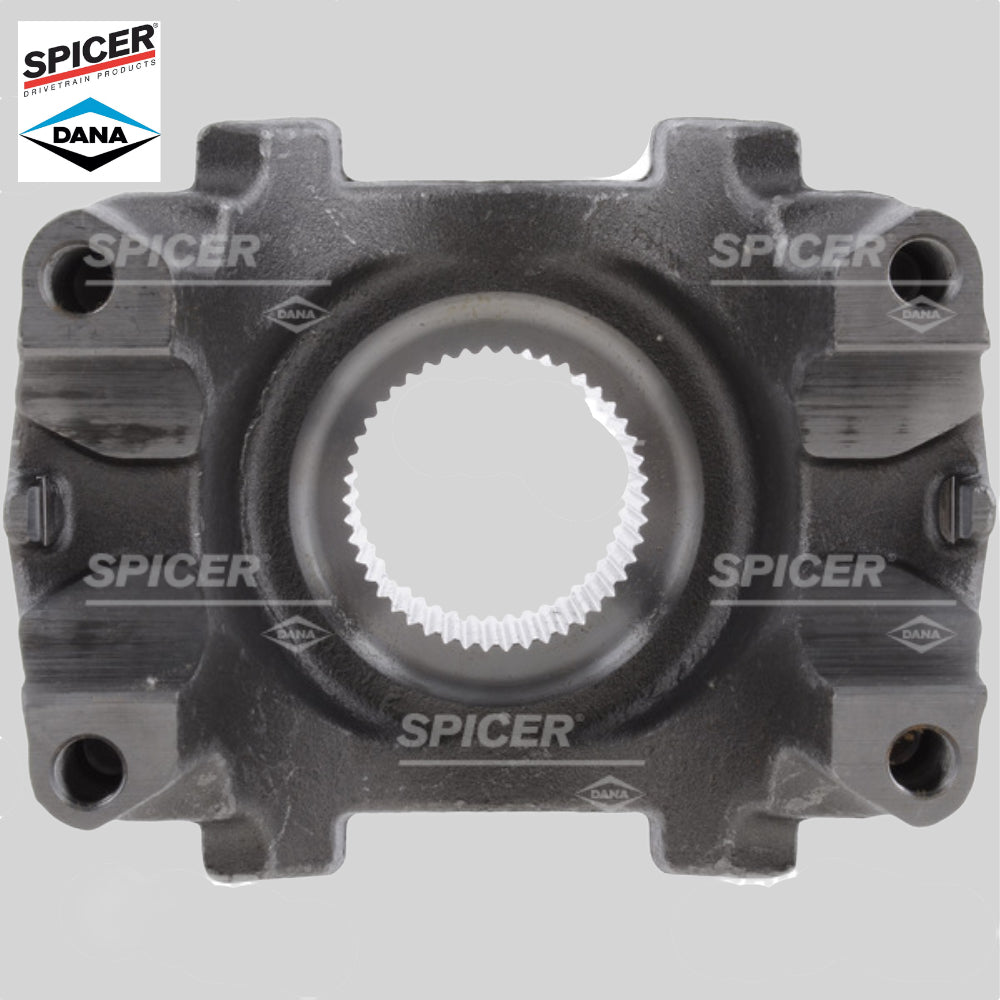

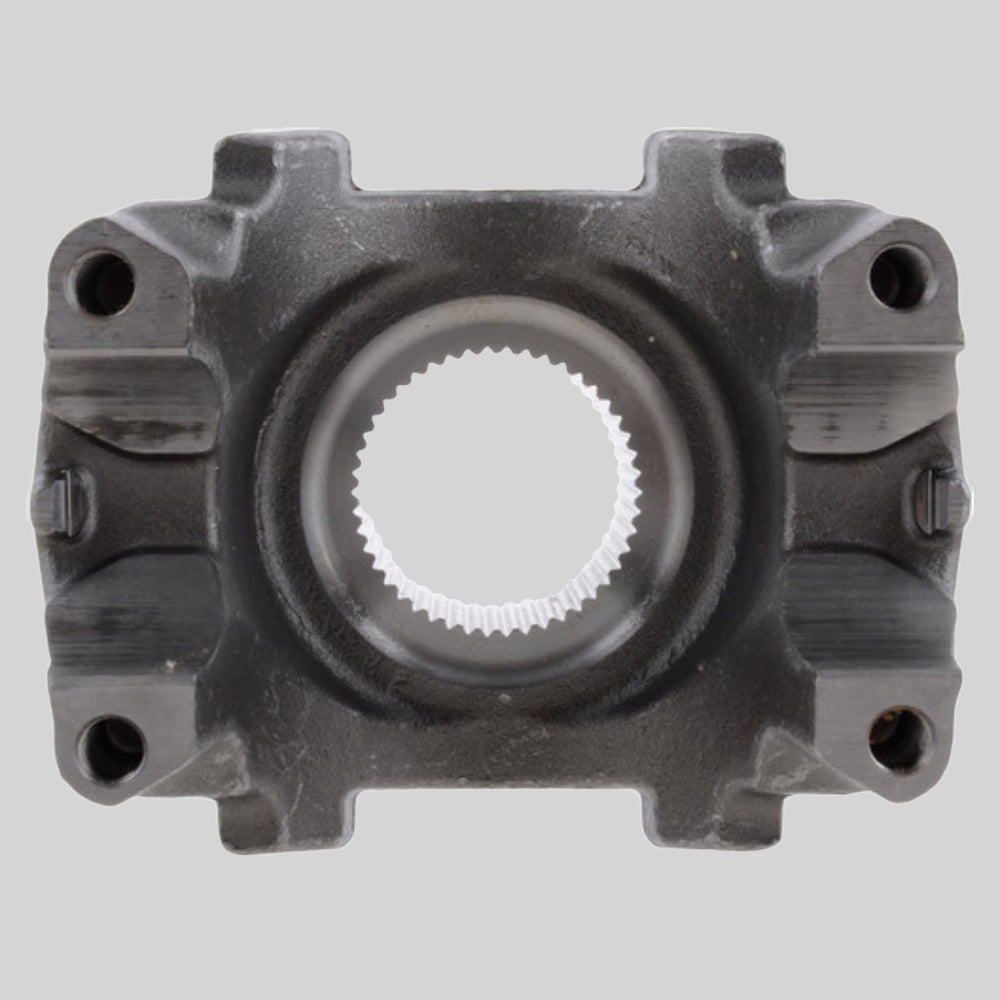

Spicer 170-4-1271-1 Driveshaft End Yoke 46 Splined Bore SPL170 Series 5.590" C/L to End
Spicer 170-4-1271-1 Driveshaft End Yoke 46 Splined Bore SPL170 Series 5.590" C/L to End
Brand: Spicer
Series SPL170
Spline Count 46
Invoice END YOKE
Yoke Style HR
Hub Diameter R 2.879
C/L To End Hub S 5.590
Type Splined Hole
Outside Yoke Dimension (In) E 6.456
Yoke Bearing Dimension (In) D 2.166
Major Diameter 2.390
Involute Spline I
VMRS 024001003
Length Thru Hole Q 2.750
C-Bore Depth 0.157
Includes Slinger/Plug N
Assembly N
Material Steel
Joint Angle #1 25
C-Bore Diameter 2.4409
Fast shipping from Florida
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
Share
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
