Spicer 1330 Series Rear Driveshaft Yoke with U-Joint fits Toyota Tacoma / Hilux
Spicer 1330 Series Rear Driveshaft Yoke with U-Joint fits Toyota Tacoma / Hilux
Brand: Spicer
Couldn't load pickup availability
Brand New and Superior Quality - Genuine SPICER

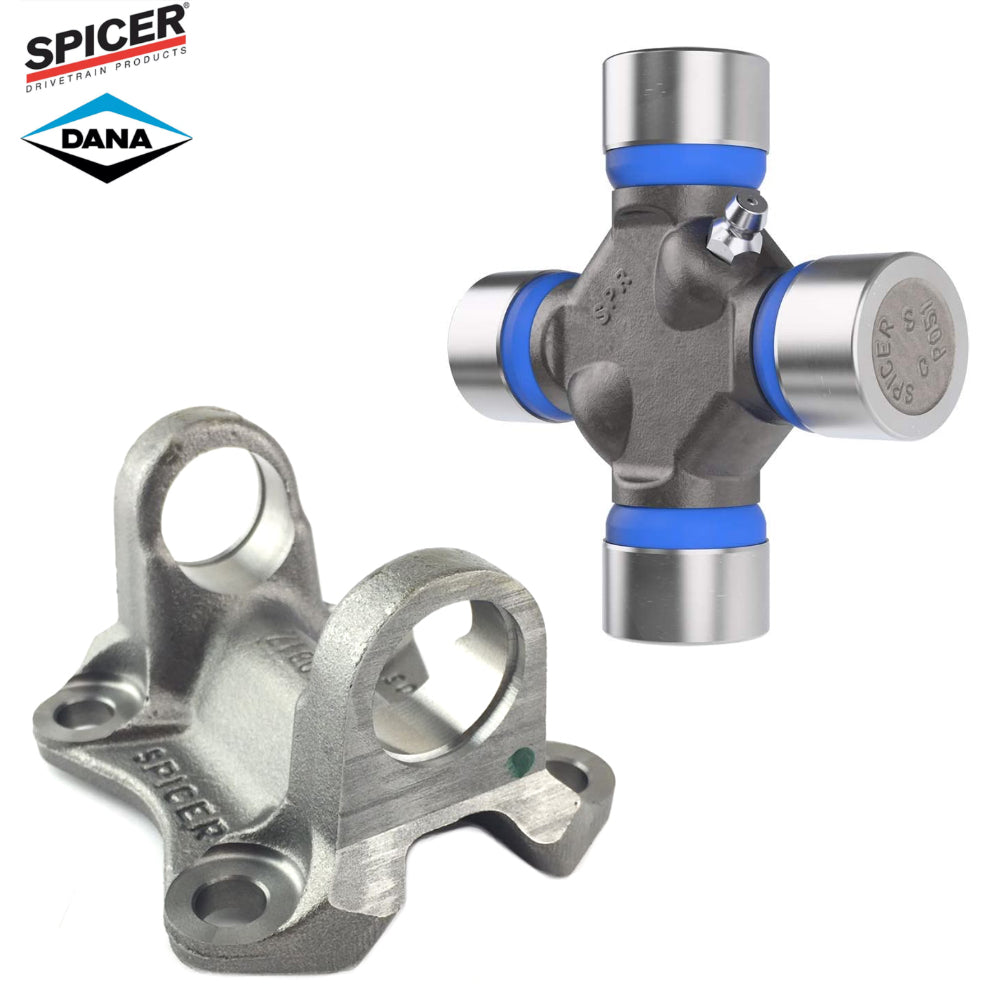

This is a 1330 Series Flange Yolk and Universal Joint Kit
|

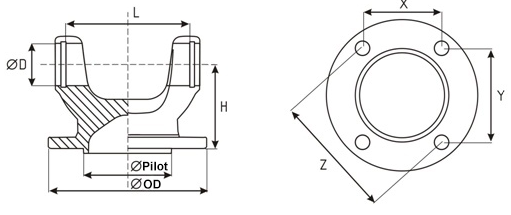

Genuine Spicer Flange | |
|
Series |
1330 (1.062 X 3.625) |
|
(OD) |
4.528 |
|
Pilot |
1.811M |
|
(H) |
1.653 |
|
(Z) |
3.661 |
|
Alt Ref: 3302-185 / 2-2-01904 / 5001904 / 5001905 |
|
Uses 5-213X Universal joint |
|
PCD = 3.661" (93mm) |
|
Hole centers = 2.589" x 2.589" (66mm x 66mm) |
|
Male Pilot = 1.811" (46mm) |

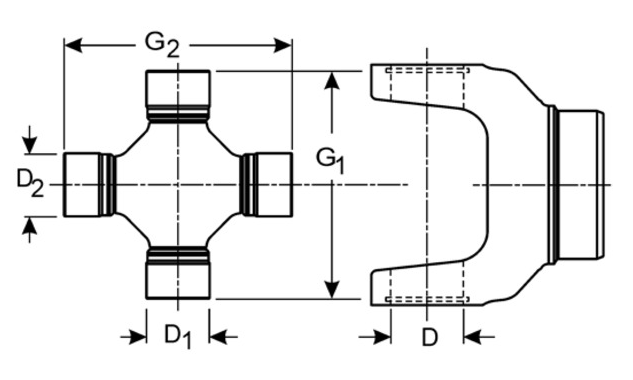

Spicer Universal Joint:
| Brand | Spicer |
| Greaseable | Y |
| Type | OSR Style |
| OEM Series | 1330 |
| Bearing Cap Diameter (1) | 1.062 |
| Bearing Cap Diameter (2) | 1.062 |
| Snap Ring (1) | 3.625 |
| Snap Ring (2) | 3.625 |
| VMRS | 24002046 |
| Bearing Cap Type | Round |
| Snap Ring Type | External |
| Snap Ring Included | Y |
| Grease Fitting Location | One straight lube fitting in cross |
| Material | Steel |
| Model Number | SPICER 1330 |
| Bearing Cap Finish | Ground |
| Seal Material | Rubber |
| Seal Color/Finish | Blue |
| Coating Type | None |
| Pre Greased | N |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Y |
| Hardware Included | N |
| Length A (In) | 3.625 |
| Length B (In) | 3.625 |
| Length A (mm) | 92.1 |
| Length B (mm) | 92.1 |
| Bearing Cap Type A | OSR |
| Bearing Cap Type B | OSR |
| Bearing Cap Diameter A (mm) | 1.062 |
| Bearing Cap Diameter B (mm) | 1.062 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.37 LB |
| Country of Origin | United States |
