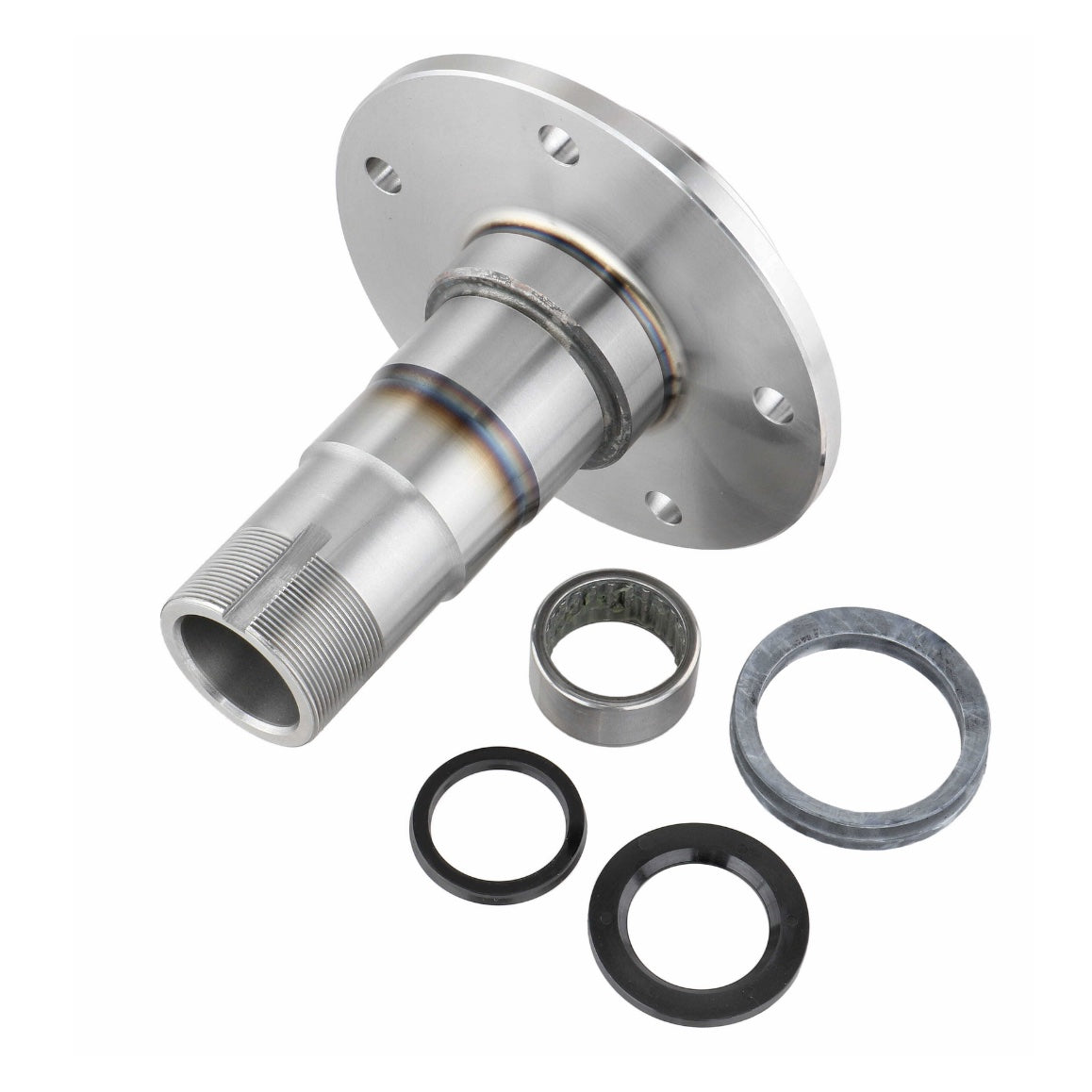

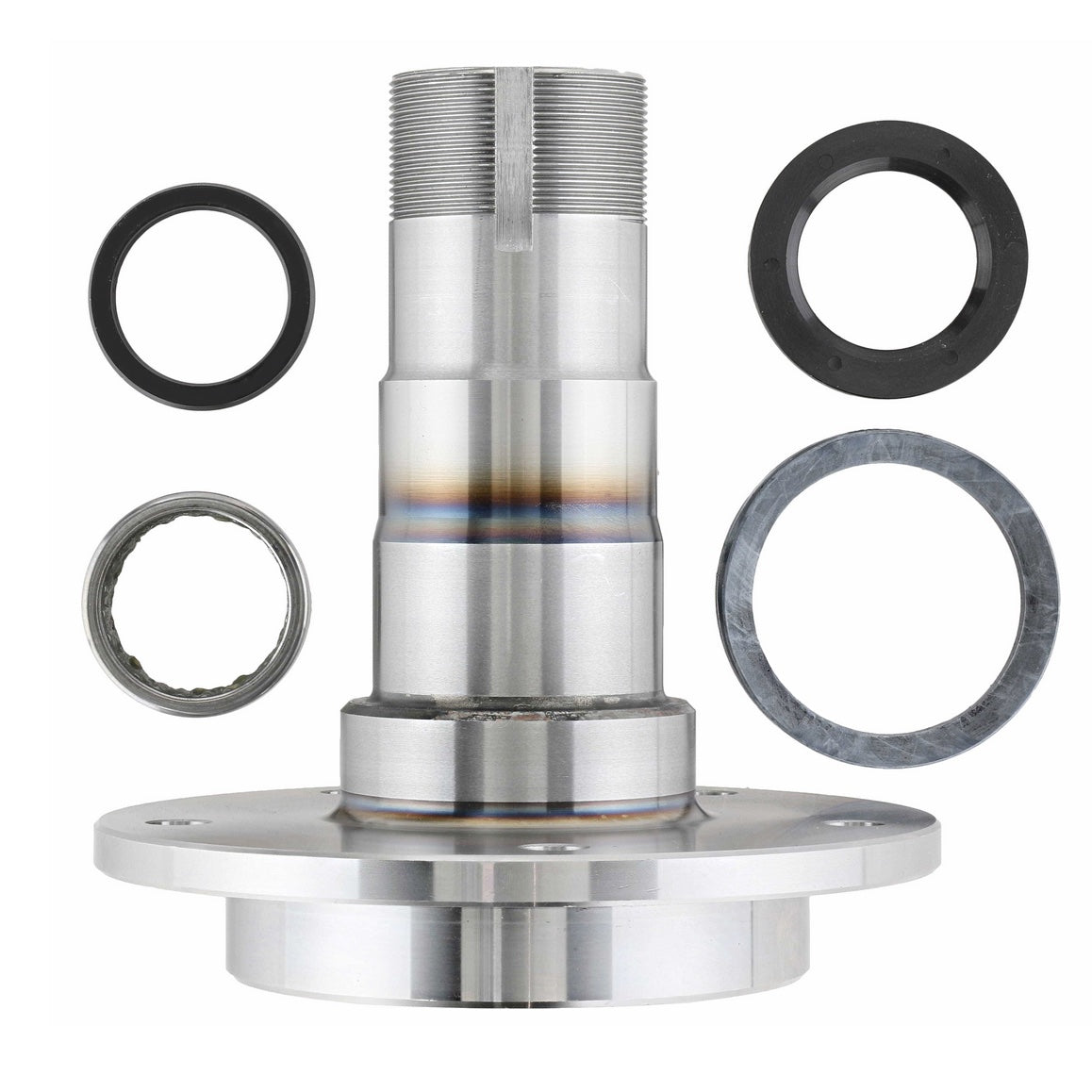

Spicer 10086724 Axle Spindle Assembly for Ford with Dana 60 Axle 5 Bolt Holes

Spicer 10086724 Axle Spindle Assembly for Ford with Dana 60 Axle 5 Bolt Holes

Part # / SKU: 10086724S

Regular price $110.24 USD
Regular price Sale price $110.24 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 0

Fits Ford at the front with Reverse Rotation Dana 60 Axle

1978-1997 Ford F-350

1999-2014 Ford F-350 Super Duty

1978-1979 Ford F-250

2002-2013 Ford F-250 Super Duty

2000-2004 Ford F-450 Super Duty

2000-2004 Ford F-550 Super Duty

Brand: Spicer

Axle Model: M60

Bolt Circle (In): 5.260

Number Of Bolt Holes: 5

Hole Diameter (In): 0.479/0.469

End To End Length (In): 6.880

Outer Wheel Brg Od (In): 4.490

Inner Wheel Brg Od (In): 3.580

Seal Surface Od (In): 1.875

Keyway Slot (In): 0.275/0.283

Bore Inside Diamet (In): 1.530/1.500

Fast and free shipping from Florida to USA Contiguous

Tracking number provided

OE Spec

Brand

Series

Vehicle Make

Vehicle Model

VMRS

Determine your Series

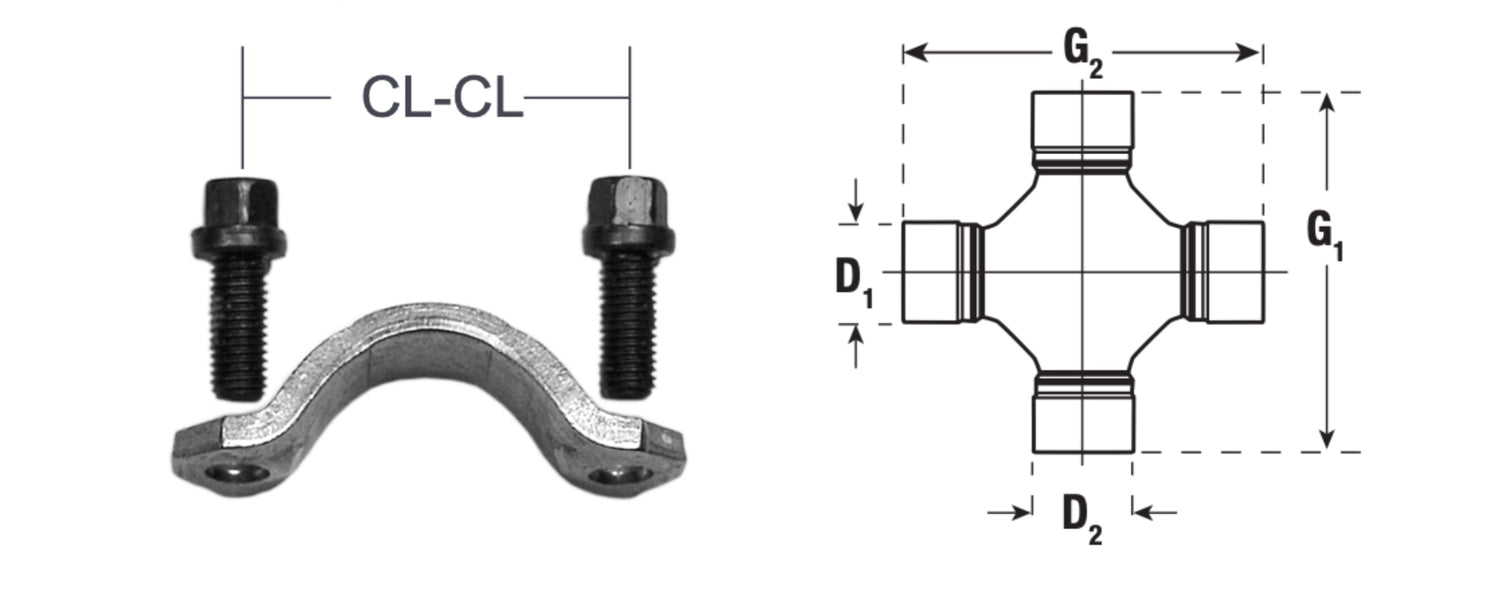

Determine the Series of your U-Joint
