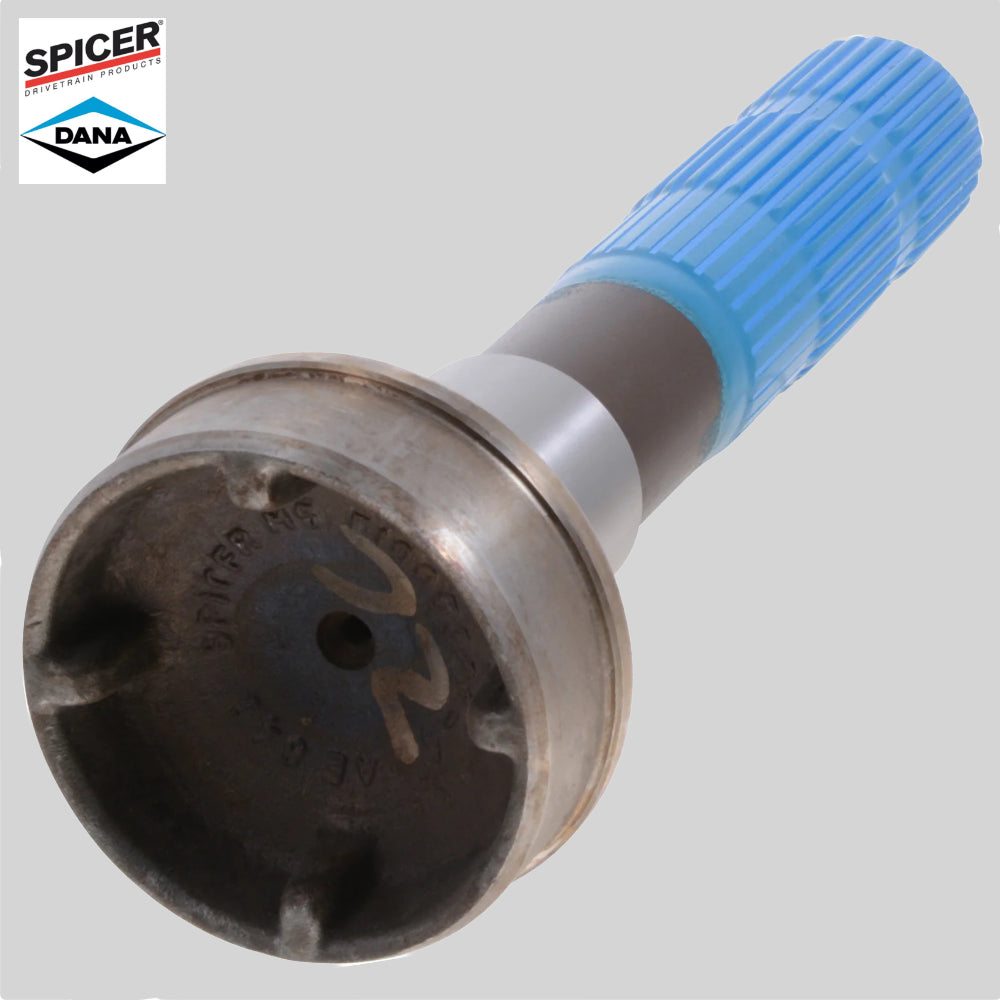

Spicer 100-53-21 Driveshaft Midship Stub Shaft 4"x.095" Tube Dia SPL100 Series
Spicer 100-53-21 Driveshaft Midship Stub Shaft 4"x.095" Tube Dia SPL100 Series
Brand: Spicer
Couldn't load pickup availability
Brand: Spicer
For Use With: Slip Yoke
Series: SPL100
Spline O.D.: 1.9370
Number Of Splines: 29/30 I
Involute: Yes
Fits Tube Diameter: 4.000
Fits Tube Wall: .095
Spline End To Brg Shoulder (Y): 9.520
Spline End To Weld (K) In.: 10.661
Spline Length (L) In.: 4.000
Shoulder Diameter (B) In.: 2.441
Bearing Diameter (C) In.: 1.968
Butt Diameter: 3.821
Style: 2
Bearing Diameter (Max): 1.9685
Bearing Diameter (Min): 1.968
Bearing Diameter Length: 1.688
Bearing Diameter Radius: 0.19
