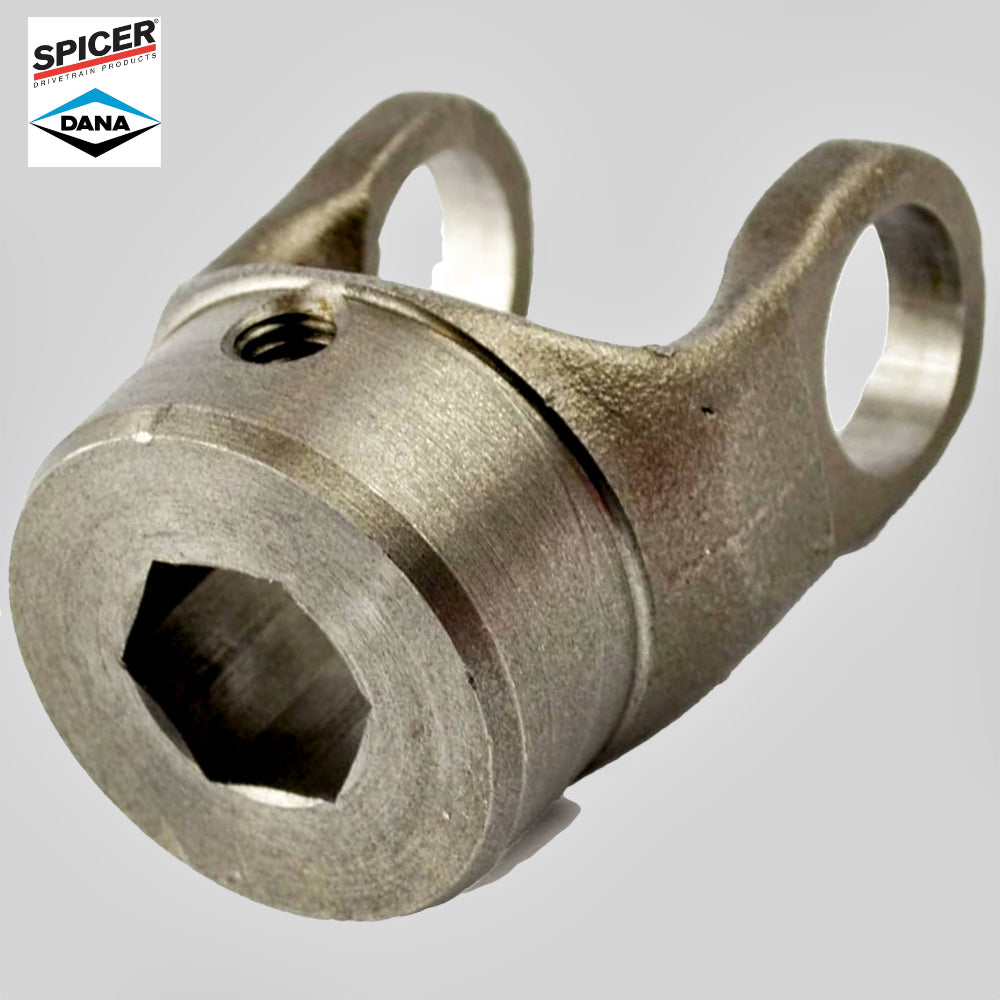

Spicer 10-4-282 Driveshaft End Yoke Hex Bore 1000 series .875 Bore 2.000 hub
Spicer 10-4-282 Driveshaft End Yoke Hex Bore 1000 series .875 Bore 2.000 hub
Brand: Spicer
Couldn't load pickup availability
Brand Spicer
Series 1000
Invoice PTO JOINT COMPONENT
Hub Diameter R 2.000
C/L To End Hub S 2.500
Type Splined Hole
Inside Yoke Dimension (In) K 1.500
Yoke Bearing Dimension (In) D 0.938
Involute Spline N
Hole Diameter (In) P 0.875
Set Screw Hole Diameter (In) 0.375
Keyway Location W 3
Set Screw Location W 3
VMRS 056002014
