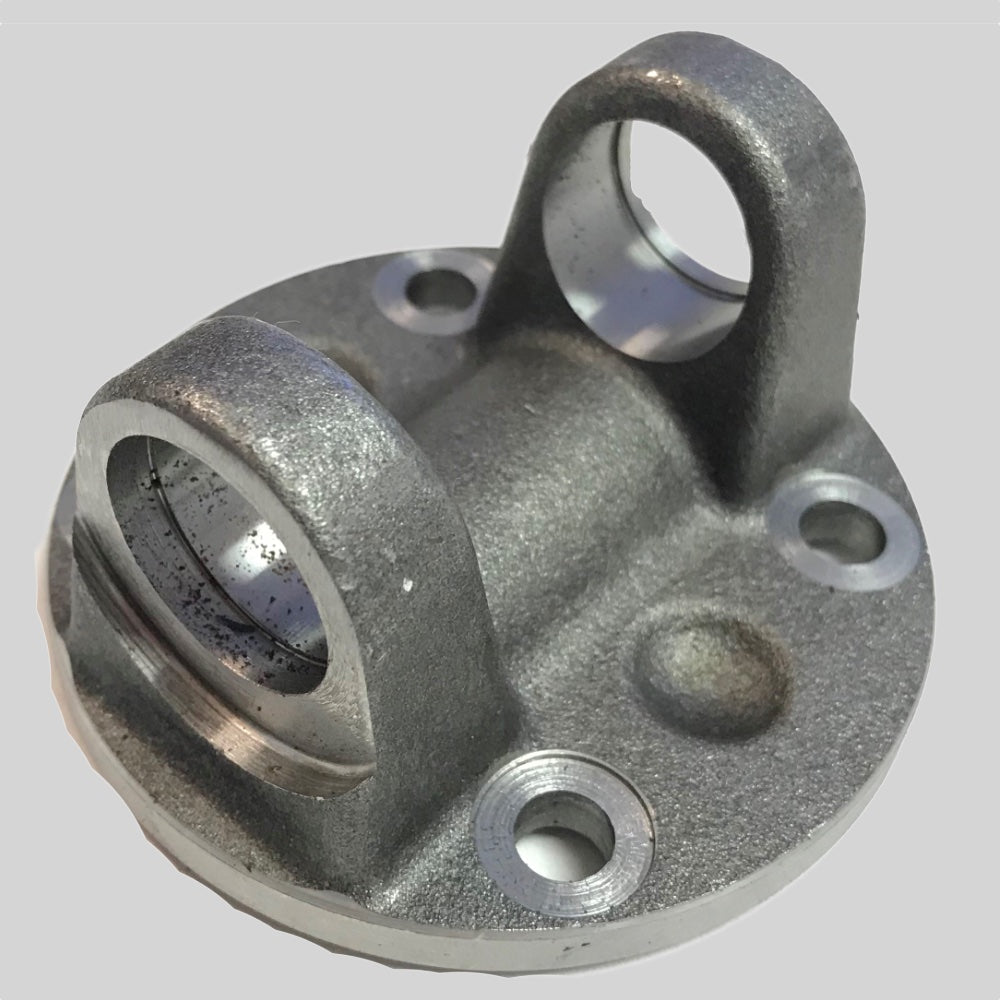

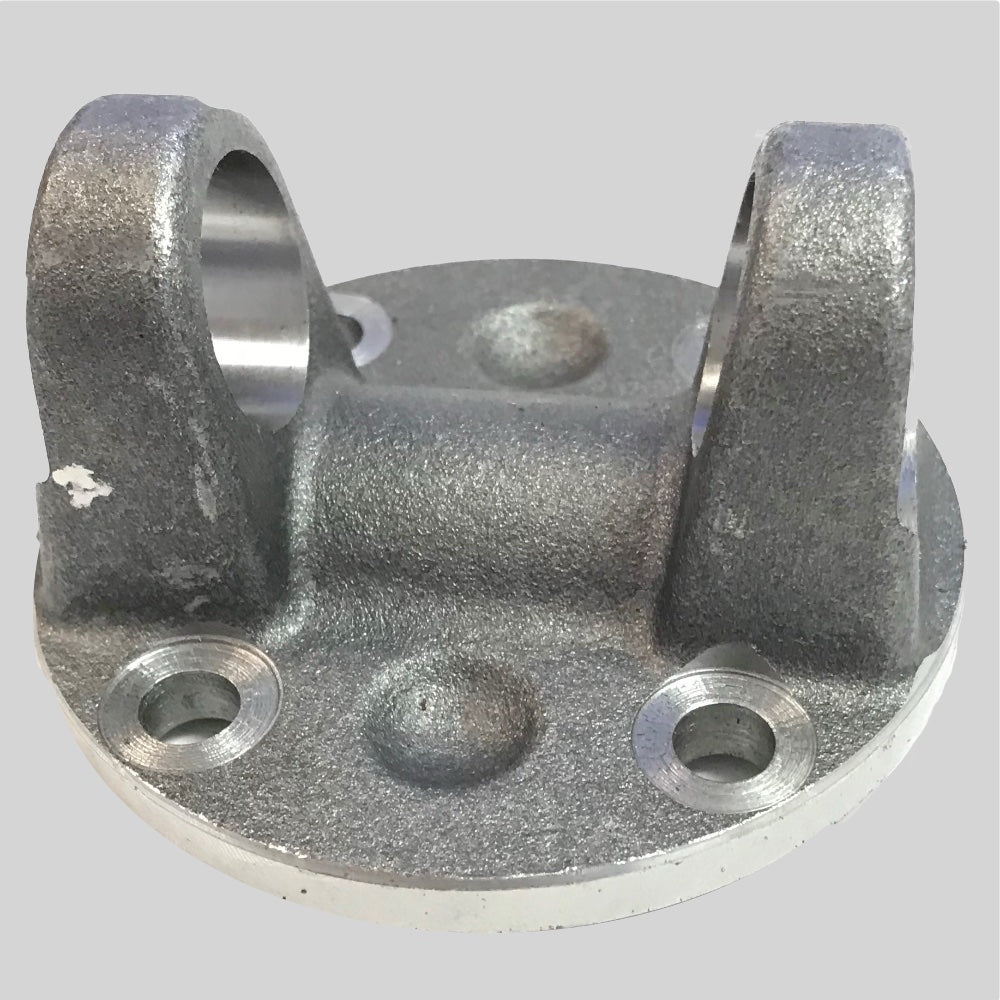

New Driveshaft Flange Yoke 1100 series 4 x .312 Holes on 2.750BC 2.250M pilot
New Driveshaft Flange Yoke 1100 series 4 x .312 Holes on 2.750BC 2.250M pilot
New Driveshaft Flange Yoke 1100 series 4 x .312 Holes on 2.750BC 2.250M pilot

New Driveshaft Flange Yoke 1100 series 4 x .312 Holes on 2.750BC 2.250M pilot

SKU: FY1140-70
Regular price
$33.00
Sale price
$33.00
Shipping calculated at checkout.

You are buying a Superior Quality Flange Yoke

Design Style



Snap Ring Design

U-Joint Series



1100

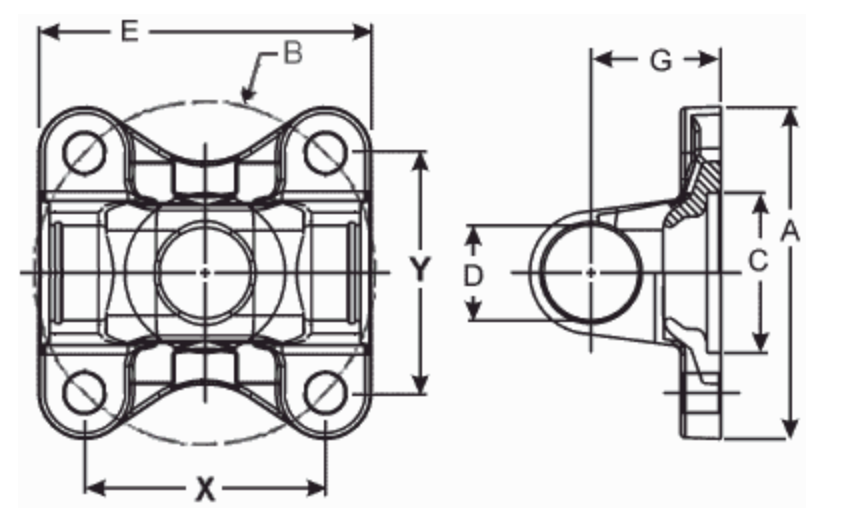

Universal Joint Retaining Width



2.656

Universal Joint Bearing Diameter

D

0.938

Flange Diameter

A

3.375

Bolt Circle Diameter

B

2.750

Horizontal Distance Between Holes (center to center)



0.000

Vertical Distance Between Holes (center to center)



0.000

Bolt Hole Diameter



.312-D

Bolt Hole Quantity



4.000

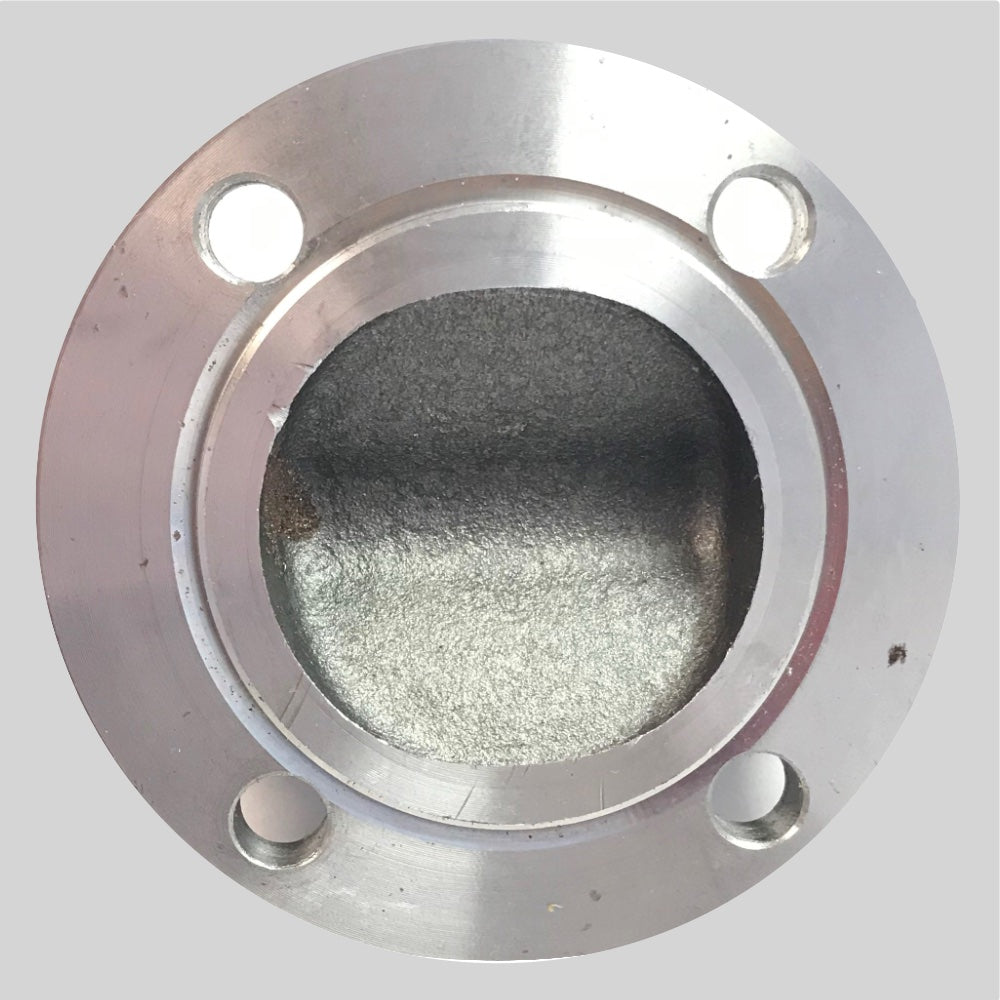

Pilot Diameter (M-Male, F-Female)

C

2.250M

Centerline of Joint to Flange Face

G

1.188






Fast and Free shipping to USA Contiguous

No hassle 30 day returns

Superior Quality

One Year Warranty
