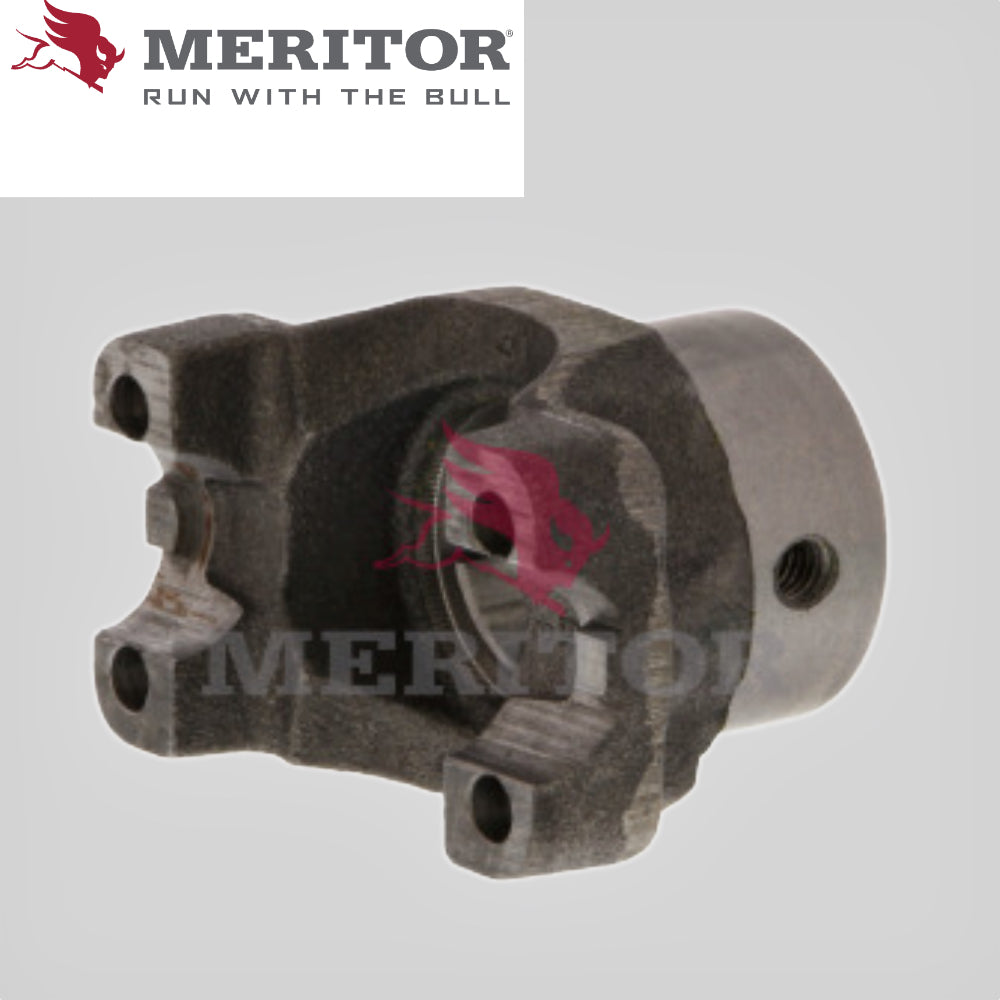

Meritor 2-4-783-1 Driveshaft End Yoke 1310 Series Round Bore 2.935" C/L To End

Meritor 2-4-783-1 Driveshaft End Yoke 1310 Series Round Bore 2.935" C/L To End

Part # / SKU: 2-4-783-1M

Brand: Meritor

$106.28 USD
$106.28 USD
Sale Sold out
Shipping calculated at checkout.
Stock Available: 3



Brand    Meritor
Series    1310
Invoice    End yoke
Yoke Style    BS
Hub Diameter R    2.120
C/L To End Hub S    2.935
Type    Straight Round Hole
Outside Yoke Dimension (In) E    3.219
Yoke Bearing Dimension (In) D    1.062
Involute Spline    N
Hole Diameter (In) P    1.250
Sae Keyway Width (In) X    0.314
Set Screw Hole Diameter (In)    0.375
Keyway Location W    12
Set Screw Location W    6
Length Thru Hole Q    1.495
Material    Steel
Joint Angle #1    22
Hole Diameter - Max    1.2505
Hole Diameter - Min    1.2495
Keyway Width - Max    0.3155
Keyway Width - Min    0.3135
