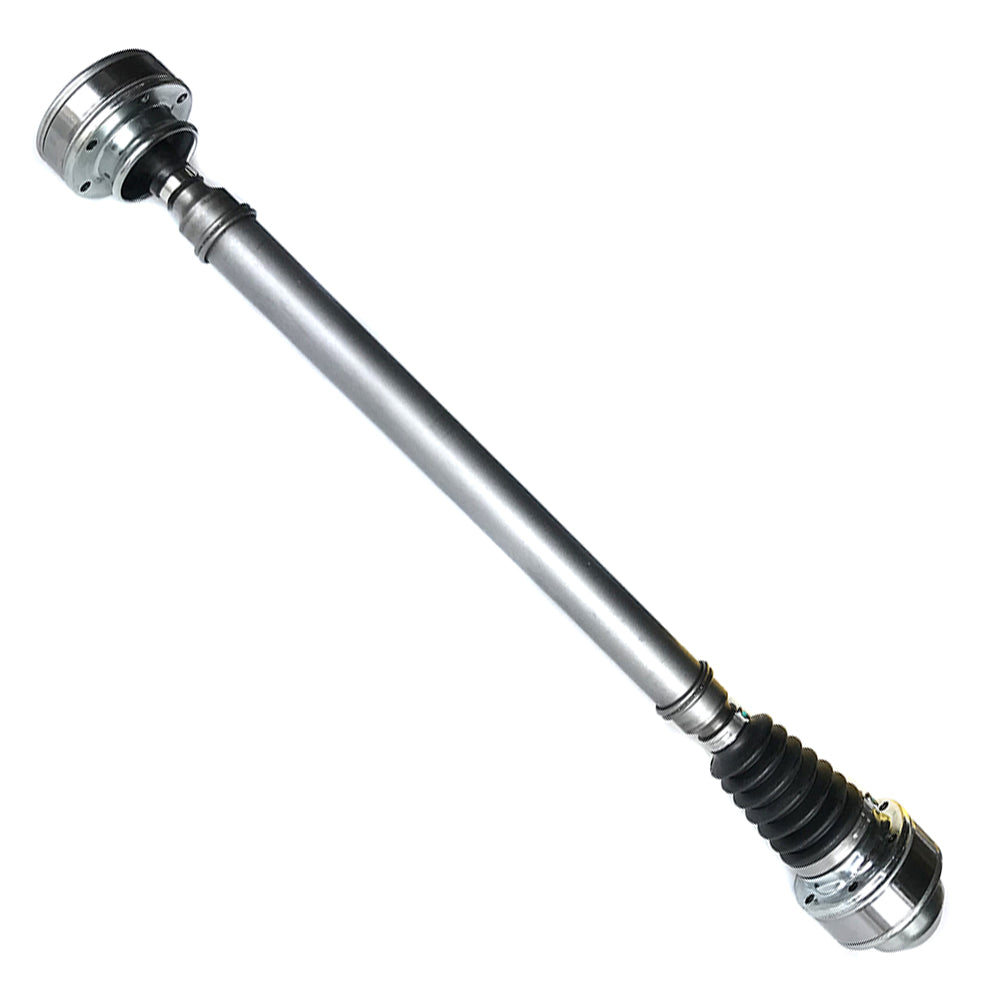

Front Propeller Driveshaft JEEP LIBERTY KJ 2.4 / 3.7 V6 Complete 29.3" P52111596
Front Propeller Driveshaft JEEP LIBERTY KJ 2.4 / 3.7 V6 Complete 29.3" P52111596
Brand: Mako
Couldn't load pickup availability
JEEP LIBERTY KJ 2.4 / 3.7 V6 Complete Front Driveshaft Propeller Shaft 2002-2004
You are buying 1x complete front end Jeep 4X4 driveshaft 29.3"
These are High-Quality Shafts and have been tried, tested and trusted by our customers for many years.
(these are for shafts with cv joints front and rear only - Please refer to pictures)
Working length: 29.3"
OEM Interchange Part Numbers
52111596AA, 52111506AB, 52111594AA, 52111596AA, 52111506AB
65-9324, 419324, 1701-325953, 225100, N93247, AA1659324
2002-2004
Jeep Liberty KJ 2.4
2002-2004
Jeep Liberty KJ 3.7 V6
To measure your working length you will need to measure from the flat face of one mounting flange to the flat face of the opposite mounting flange. With 1/4" over or under the size being acceptable due to how the vehicle is positioned when taking the measurement.
Alternatively, you can measure the shaft itself from the flat outer edge of the diff side CV Joint to the flat outer edge of the Transfer case CV Joint.
We do NOT work off weld to weld measurements!
Specifications:
29.3" working length
Direct replacement
Greased and ready to install
High speed balanced
OEM ref: 52111596AA, 52111506AB, 52111594AA, 52111596AA, 52111506AB
1-year warranty (warranty does not cover shafts that have damaged or torn boots)
Features:
High-quality
Fast shipping
No hassle returns
The tracking number provided.
Additional Info: We also sell CV Joints, Boot Kits and Boot Retainers for this driveshaft
Notes:
These Jeep front driveshafts come in 5 different lengths. We have noticed that working with the data from Jeep or even the original part number, we have had cases where the data is incorrect.
Due to this, we ask our customers to confirm the length of the shaft before purchasing.
You will need the length between the two mounting flanges. This can easily be done even while the shaft is on the vehicle.
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase


Driveshafts & PTO & Tubing Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!

For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
