2-4-473 Genuine Dana Spicer 1310 Series End Yoke PTO 1" Round Bore .250 Keyway
2-4-473 Genuine Dana Spicer 1310 Series End Yoke PTO 1" Round Bore .250 Keyway
Brand: Spicer
Couldn't load pickup availability

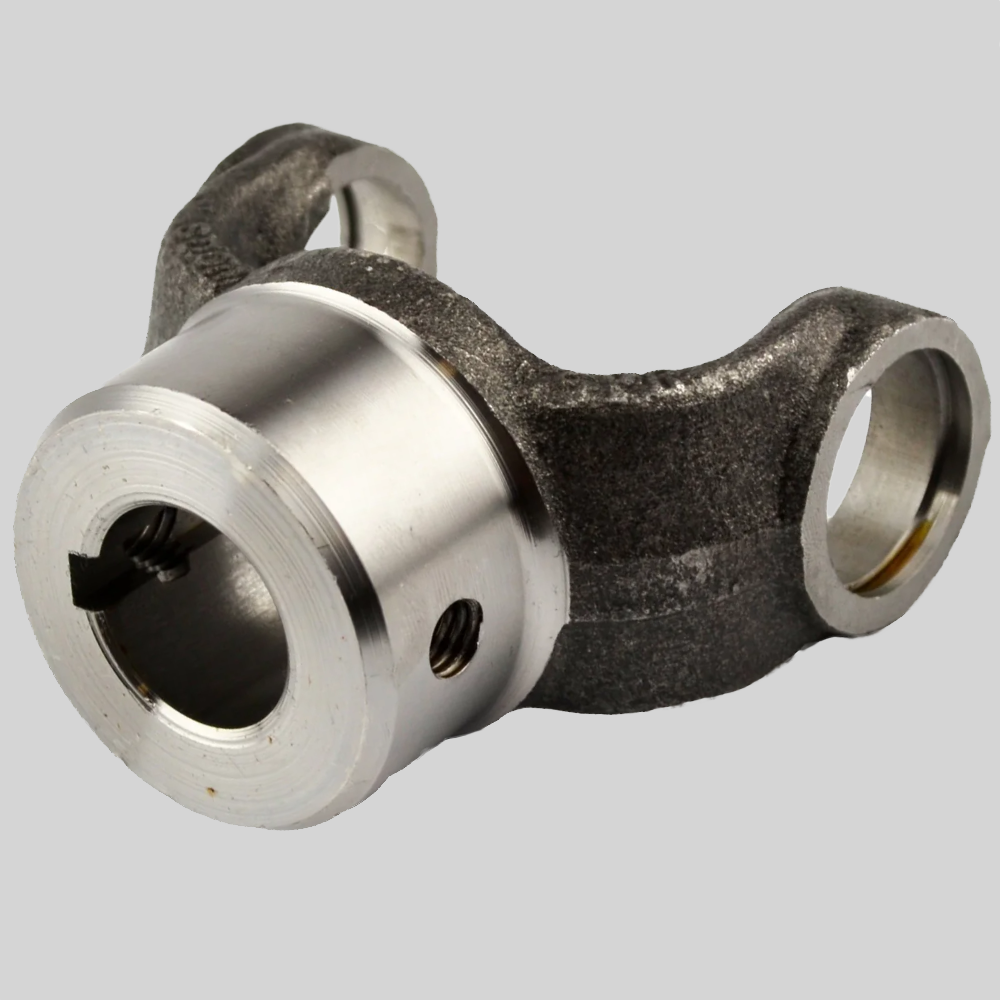

Genuine Spicer 1310 Series End Yoke PTO 1" Round Bore .250 Key 2-4-473
Specifications
|
Brand |
Spicer |
|
Series |
1310 |
|
Yoke Style |
SR |
|
Hub Diameter R |
2.125 |
|
C/L To End Hub S |
2.562 |
|
Type |
Straight Round Hole |
|
Outside Yoke Dimension (In) E |
3.469 |
|
Yoke Bearing Dimension (In) D |
1.062 |
|
Involute Spline |
N |
|
Hole Diameter (In) P |
1.000 |
|
Sae Keyway Width (In) X |
0.250 |
|
Set Screw Hole Diameter (In) |
0.375 |
|
Keyway Location W |
12 |
|
Set Screw Location W |
6 & 12 |
|
VMRS |
024001003 |
|
Material |
Steel |
|
Joint Angle #1 |
17 |
|
Hole Diameter - Max |
1.0005 |
|
Hole Diameter - Min |
0.9995 |
|
Keyway Width - Max |
0.253 |
|
Keyway Width - Min |
0.251 |
|
Country of Origin |
United States |
