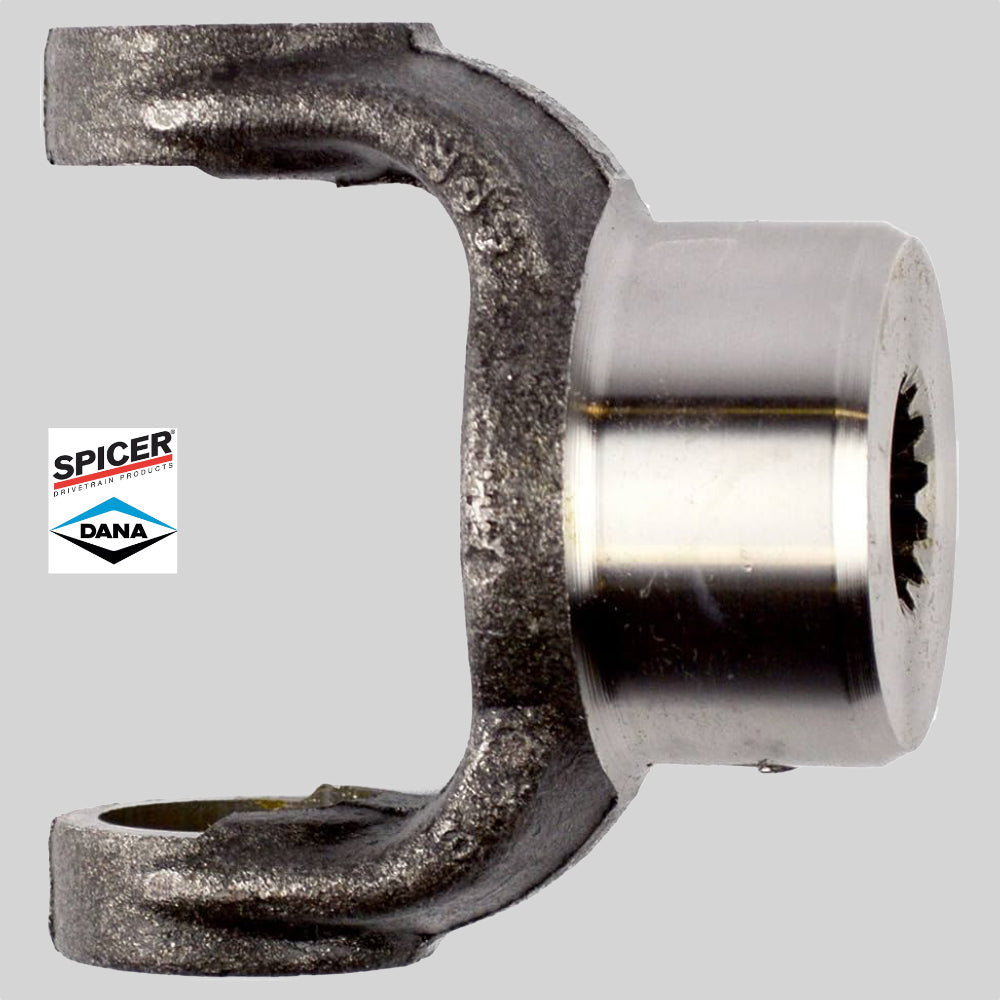

Genuine Dana Spicer 1310 Series End Yoke 13 Spline 2-4-3331
Specifications
Brand | Spicer |
Series | 1310 |
Spline Count | 13 |
Yoke Style | SR |
Hub Diameter R | 2.000 |
C/L To End Hub S | 2.562 |
Type | Splined Hole |
Outside Yoke Dimension (In) E | 3.469 |
Yoke Bearing Dimension (In) D | 1.062 |
Major Diameter | 0.878 |
Involute Spline | I |
VMRS | 24001003 |
Length Thru Hole Q | 1.567 |
