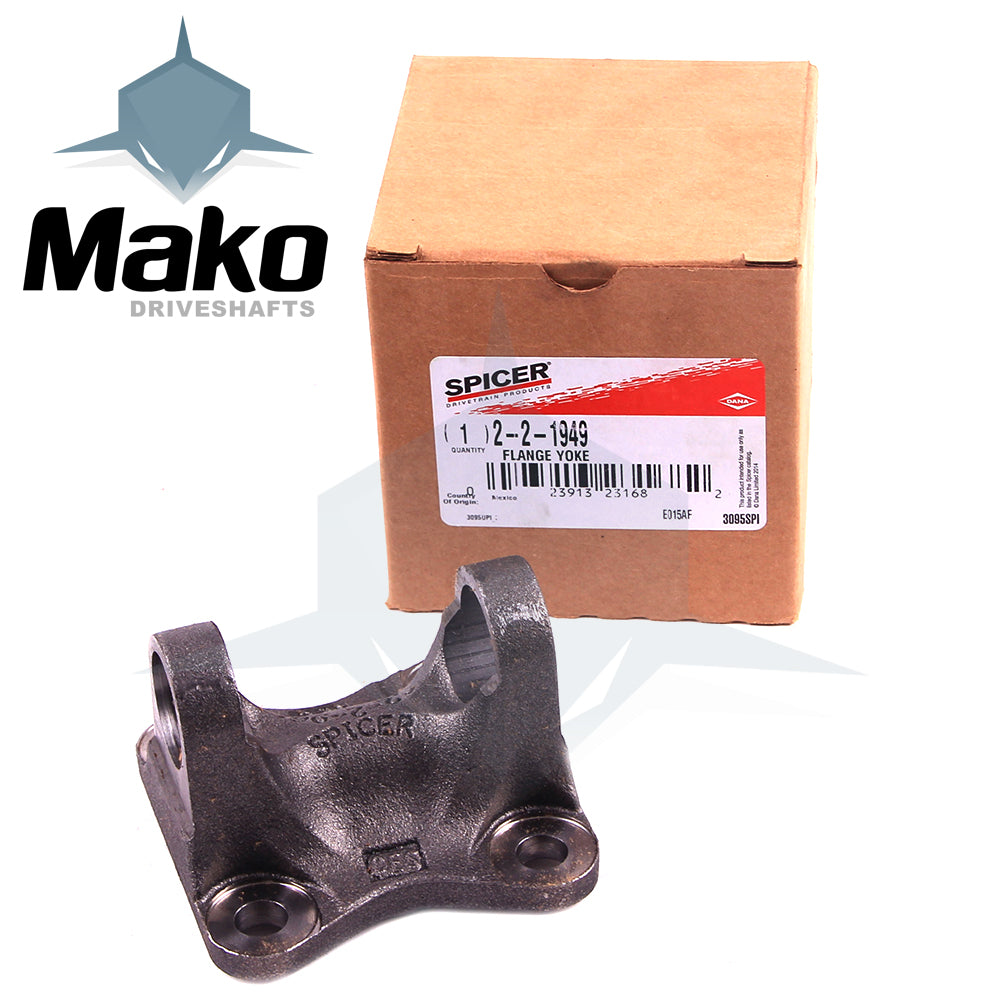

Driveshaft SPICER Flange Yoke 1310 series, 4xØ.481 Holes 221949 / 2-2-1169
Driveshaft SPICER Flange Yoke 1310 series, 4xØ.481 Holes 221949 / 2-2-1169
Couldn't load pickup availability
Brand New Spicer Flange Yoke - 1310 series
Interchangeable with:
2-2-1949, 221949, 2-2-1169
|
Series |
1310 |
|
Flange Or Swing Dia. In. (A) |
4.719 |
|
Bolt Circle Dia. In. (B) |
3.750 |
|
Bolt Hole Dia. In (B) |
.481 - DRILLED |
|
Number Of Bolt Holes |
4 |
|
Pilot Dia. M=Male F=Female (C) |
2.558 - MALE |
|
Flange Face To C/L In. (G) |
1.781 |
|
Material |
Steel |
|
Outside Yoke Dimension In (E) |
3.469 |
|
Yoke Bearing Dimension In. (D) |
1.062 |
|
Design |
Square |
|
Joint Angle #1 |
25 |
|
VMRS |
024002016 |
This is a High-Quality Spicer Brand Flange Yolk.
