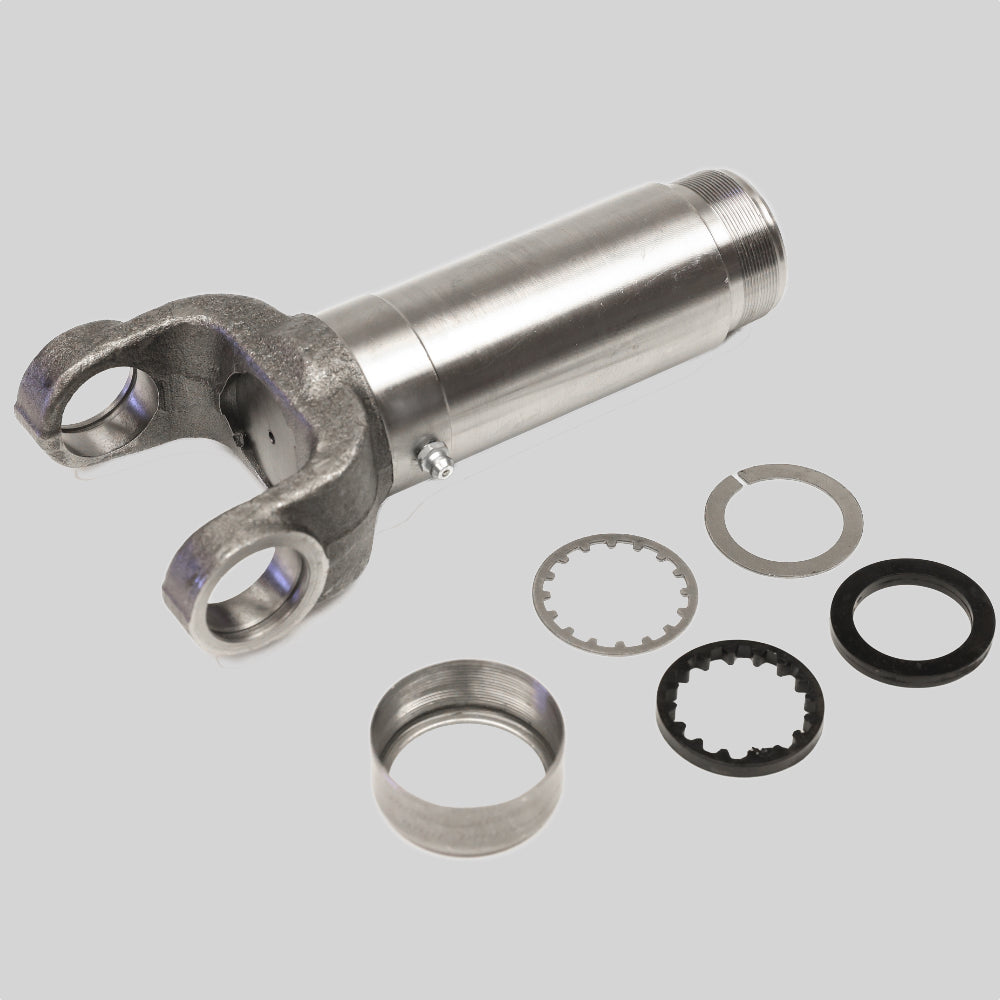

1310 Series - 16 Spline Driveshaft Slip Yoke - 1.375"x16 Spline 2-3-5221KX
Same as 2-3-8001KX but uses a screw style cap
|
General Design Type |
LD-MD Driveshaft |
|
U-Joint Series |
1310 |
|
Spline Major Diameter |
1,375 |
|
Spline Count |
16,000 |
|
Spline Type |
Parallel |
|
Max Joint Angle |
0,000 |
|
Universal Joint Retaining Width (E) |
3,469 |
|
Universal Joint Bearing Diameter (D) |
1,063 |
|
Centerline of Joint to End of Spline (J) |
6,875 |
|
Centerline of Joint to Fact of Plug (F) |
1,530 |
|
Compatible U-Joint kits |
5-153X, 5-1310, 5-1310-1X |
|
Style |
Snap Ring |
