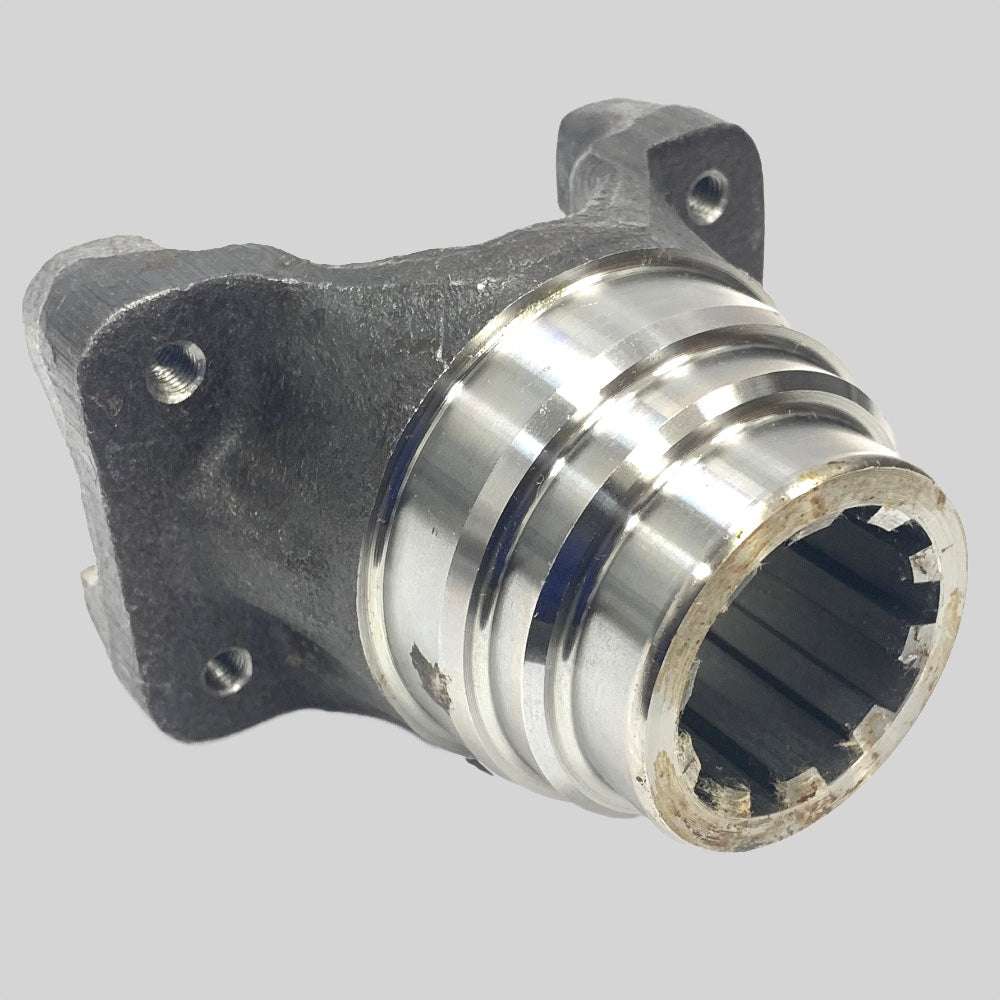

Driveshaft Splined End Yoke 1310 Series 2-4-2671-1, 1.375 x 10 Spline 1.750 Hub

Driveshaft Splined End Yoke 1310 Series 2-4-2671-1, 1.375 x 10 Spline 1.750 Hub

SKU: 2-4-2671-1EB-USA-M
Regular price
Sold out
Sale price
$56.00
Shipping calculated at checkout.

You are buying a Brand New End Yoke 2-4-2671-1

1.375 x 10 Spline

Designed for 1310 series universal joints - compatible with 5-153X

Flange Yoke Specifications:

U-Joint Series



1310

Universal Joint Retaining Width



3.469

Universal Joint Bearing Diameter

D

1.062

Flange Diameter

A

4.625

Bolt Circle Diameter

B

3.750

Horizontal Distance Between Holes (center to center)



2.410

Vertical Distance Between Holes (center to center)



2.873

Bolt Hole Diameter



.438-D

Bolt Hole Quantity



4.000

Pilot Diameter (M-Male, F-Female)

C

2.750M

Centerline of Joint to Flange Face

G

1.375
