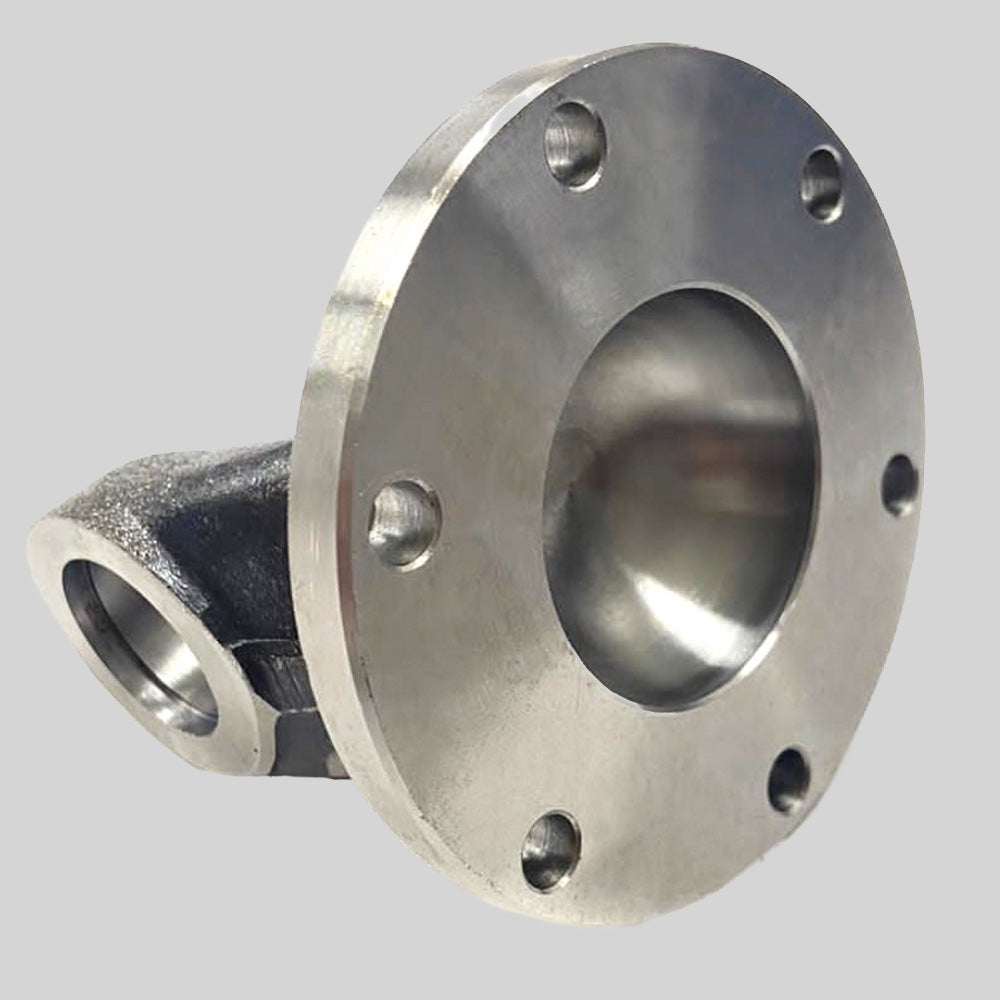

Driveshaft CV Eliminator Flange yoke 1310 series 6x 0.328" Holes on 3.937M pilot
Driveshaft CV Eliminator Flange yoke 1310 series 6x 0.328" Holes on 3.937M pilot
Driveshaft CV Eliminator Flange yoke 1310 series 6x 0.328" Holes on 3.937M pilot

Driveshaft CV Eliminator Flange yoke 1310 series 6x 0.328" Holes on 3.937M pilot

SKU: 2-2-206
Regular price
$59.00
Sale price
$59.00
Shipping calculated at checkout.

You are buying a Superior Quality Flange Yoke

Design Style

Snap Ring Design

U-Joint Series

1310

Universal Joint Retaining Width

3.469

Universal Joint Bearing Diameter D

1.062

Flange Diameter A

3.935

Bolt Circle Diameter B

3.386

Horizontal Distance Between Holes (center to center)

0.000

Vertical Distance Between Holes (center to center)

0.000

Bolt Hole Diameter

0.328-D

Bolt Hole Quantity

6.000

Pilot Diameter (M-Male, F-Female) C

3.935 OD

Centerline of Joint to Flange Face G

2.592
