Driveshaft Center Bearing & SPICER U-Joints for Toyota Tacoma 3x 5-213X+934-401
Driveshaft Center Bearing & SPICER U-Joints for Toyota Tacoma 3x 5-213X+934-401
Couldn't load pickup availability
Toyota Tacoma 2005-2015 Driveshaft Support Bearing & Spicer Universal Joints Set

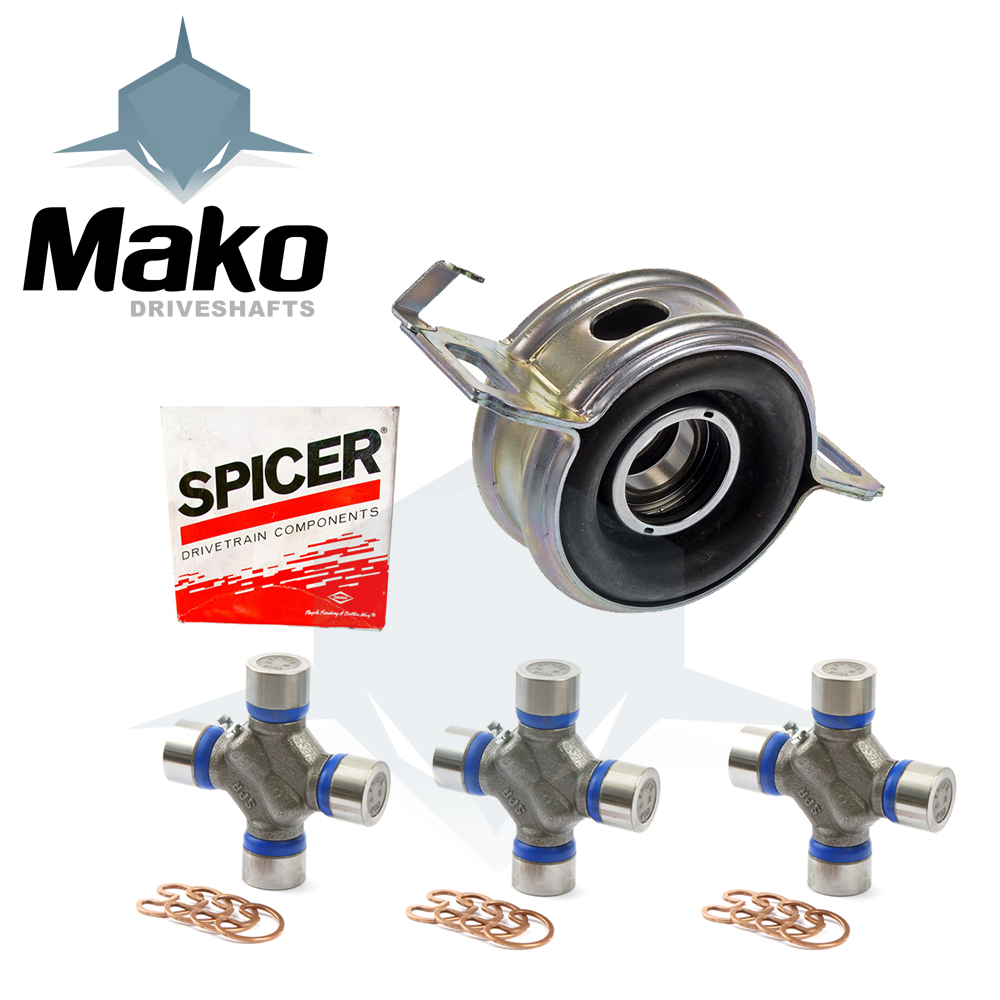

1x brand new center bearing & 3x brand new Spicer universal joints for:
Toyota Tacoma 2WD & 4WD 2005-2015
Full rebuild kit containing a brand new center support bearing and all three (front, middle, rear) universal joints
The center bearing comes with mounting hooks. These are to assist when fixing to the vehicle and play no other critical part.
Specifications:
Universal Joint 5-213X Spicer Premium Blue Seal
|
Brand |
Spicer |
|
Greaseable |
Y |
|
Type |
OSR Style |
|
OEM Series |
1330 |
|
Bearing Cap Diameter (1) |
1.062 |
|
Bearing Cap Diameter (2) |
1.062 |
|
Snap Ring (1) |
3.625 |
|
Snap Ring (2) |
3.625 |
|
Bearing Cap Type |
Round |
|
Snap Ring Type |
External |
|
Snap Ring Included |
Y |
|
Grease Fitting Location |
One straight lube fitting in cross |
|
Material |
Steel |
|
Model Number |
SPICER 1330 |
|
Bearing Cap Finish |
Ground |
|
Seal Material |
Rubber |
|
Seal Color/Finish |
Blue |
|
Coating Type |
None |
|
Pre Greased |
N |
|
Grease Type |
N.L.G.I. Grade 2 |
|
Grease Zerk Included |
Y |
|
Hardware Included |
N |
|
Length A (In) |
3.625 |
|
Length B (In) |
3.625 |
|
Length A (mm) |
92.1 |
|
Length B (mm) |
92.1 |
|
Bearing Cap Type A |
OSR |
|
Bearing Cap Type B |
OSR |
|
Bearing Cap Diameter A (mm) |
1.062 |
|
Bearing Cap Diameter B (mm) |
1.062 |
Center bearing
......................................................................................
The below is a description of the Center Bearing only: For your reference
Toyota Tundra / Tacoma / T100 Center Support
| Center Bearings | |
| Internal Diameter | 1.181 |
| Width | 0.511 |
| Hole Centers | 5.750 |
