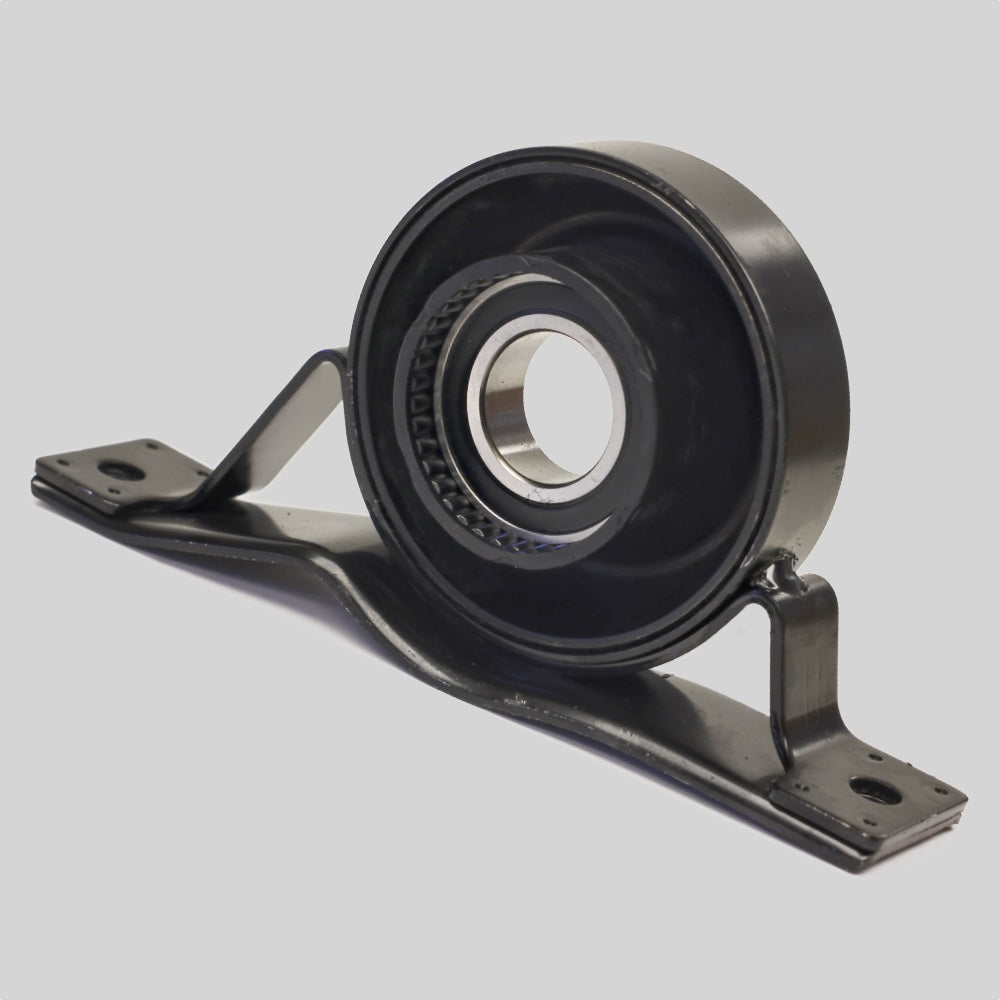

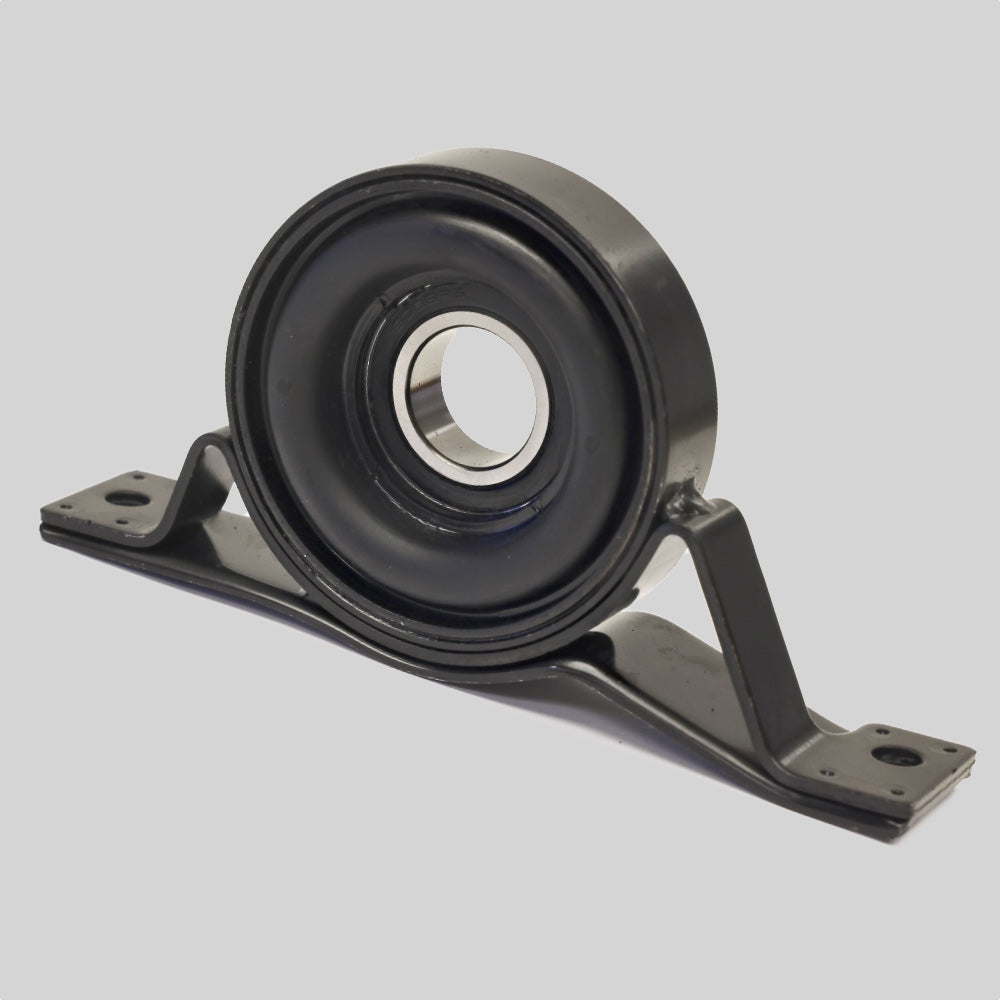

Driveshaft Center Support Carrier Bearing for Dodge Charger 2015-2018

2015-2020 Dodge Charger Carrier Bearing Replacement

Engine 3.6L / V6, 5.7L / V8


Center of mounting hole to center of mounting hole: 7.372"

Bracket width: 1.623"

Internal diameter: 1.181"


Please note that this carrier bearing will require a drive-line shop or someone with prior knowledge working on driveshafts

The process requires tapping off the dust cap attached to the center shaft CV Joint, in order to access the spline.
The spline will have a hidden snap ring that needs to be removed in order to release the two halves of the driveshaft.
If you cannot see the snap ring, you could remove a few ball bearings which would expose the snap ring position.
Thereafter the shaft will separate and you can gain access to remove the old carrier bearing.
If you have a machine press in the workshop, the shaft can also be separated by destroying the old snap ring through forced separation.


Shaft Interchange Ref OE: 53010735AB, 52123974AH, 52123974AC, 52123974AD, 52123974AG, 52123974AE,

52123974AF, 68272626AB, 68272626AA, 52123980AG, 52123980AC, 52123980AF, 52123980AE,

52123980AD, 52123977AB, 52123977AC, 52123977AD, 52123977AE, 52123977AF, 52123977AG,

68212031AB, 68212031AC, 68212031AD, 68261528AA, 68261528AB, 68261528AC, 68261528AD,

68212030AB, 68212030AC, 68212030AD, 68212030AE, 68212030AF, 68212030AG, 68212030AH,

52123973AB, 52123973AC, 52123973AD, 52123973AE, 52123973AF, 52123973AG, 52123973AH, 53010846AB

3180-31, 986-031, 976-987, 986-220, 986-031
