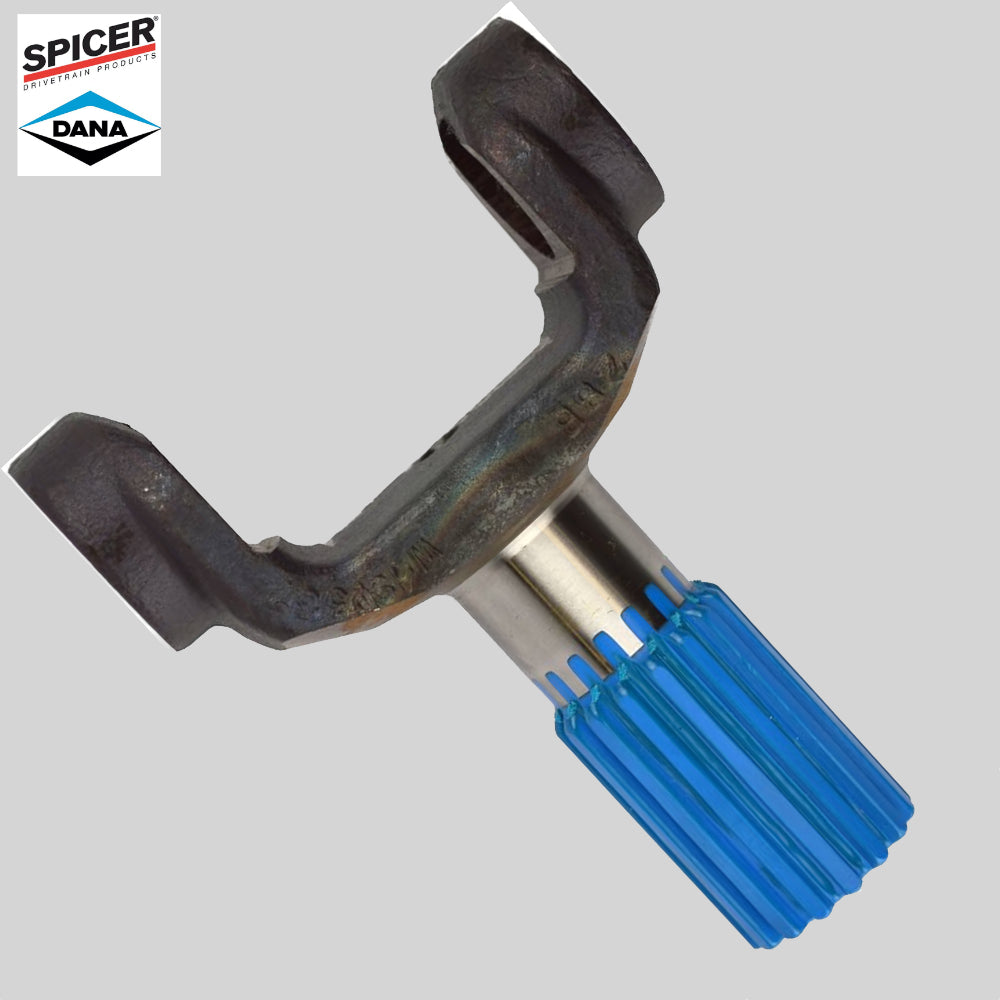

Dana Spicer 3-82-1191 Driveshaft Yoke Shaft 1410 Series 1.500 x 16 spline 4.969"
Dana Spicer 3-82-1191 Driveshaft Yoke Shaft 1410 Series 1.500 x 16 spline 4.969"
Brand: Spicer
Couldn't load pickup availability
Made in USA
Brand Spicer
Series 1410
Outside Yoke Dimension (E) In. 4.969
Bearing Cap Diameter (D) In. 1.188
Major Spline Diameter 1.500
Spline Count 16
Involute Spline N
Centerline To End Of Splne (K) 4.969
End/Spline To Point/Rad. (R) 3.250
Spline Length (L) In 2.000
Angle #1 16.0
Style SR
Spline Hole Minor Diameter 1.281
Spline Width 0.141
Fast shipping from Florida - tracking number provided.
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
All orders received before 1pm EST should ship out on the same day that the purchase has been completed
Shipping is calculated on Business Days Only
We do not ship on weekends nor do we offer weekend deliveries
We offer Next Day shipping options, however do not accept liability
for delays encountered outside of our control such as courier delays or
weather conditions
For a shipping requirement not shown on the checkout page please contact us for more options
We do offer an LTL Freight service if required for large orders
We do offer International Shipping however we may be restricted depending on your region
Share
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
For orders with a cart value over $1000 contact us using the chat button below to reduce your shipping costs using our freight service
