DANA Spicer 3-28-257 Weld-on-Tube Yoke 1350 series Tube 3.500 x 0.065 Welded
DANA Spicer 3-28-257 Weld-on-Tube Yoke 1350 series Tube 3.500 x 0.065 Welded
DANA Spicer 3-28-257 Weld-on-Tube Yoke 1350 series Tube 3.500 x 0.065 Welded

DANA Spicer 3-28-257 Weld-on-Tube Yoke 1350 series Tube 3.500 x 0.065 Welded

SKU: 3-28-257S-EB-USA-M-1
Regular price
$58.41
Sale price
$58.41
Shipping calculated at checkout.

DANA Spicer

3-28-257 Weld-on-Tube Yoke 1350 series Tube 3.500 x 1.188 x 3.875

Interchange: 135N-28-257, N3-28-257, 74082872

Compatible with U-Joints: SP-5-178X, SPI5-1350X, SPL30-1X

Series - 1350 (1.188 x 3.625)

Tube - 3.500 x 0.065" Welded

Brand Spicer

Series 1350

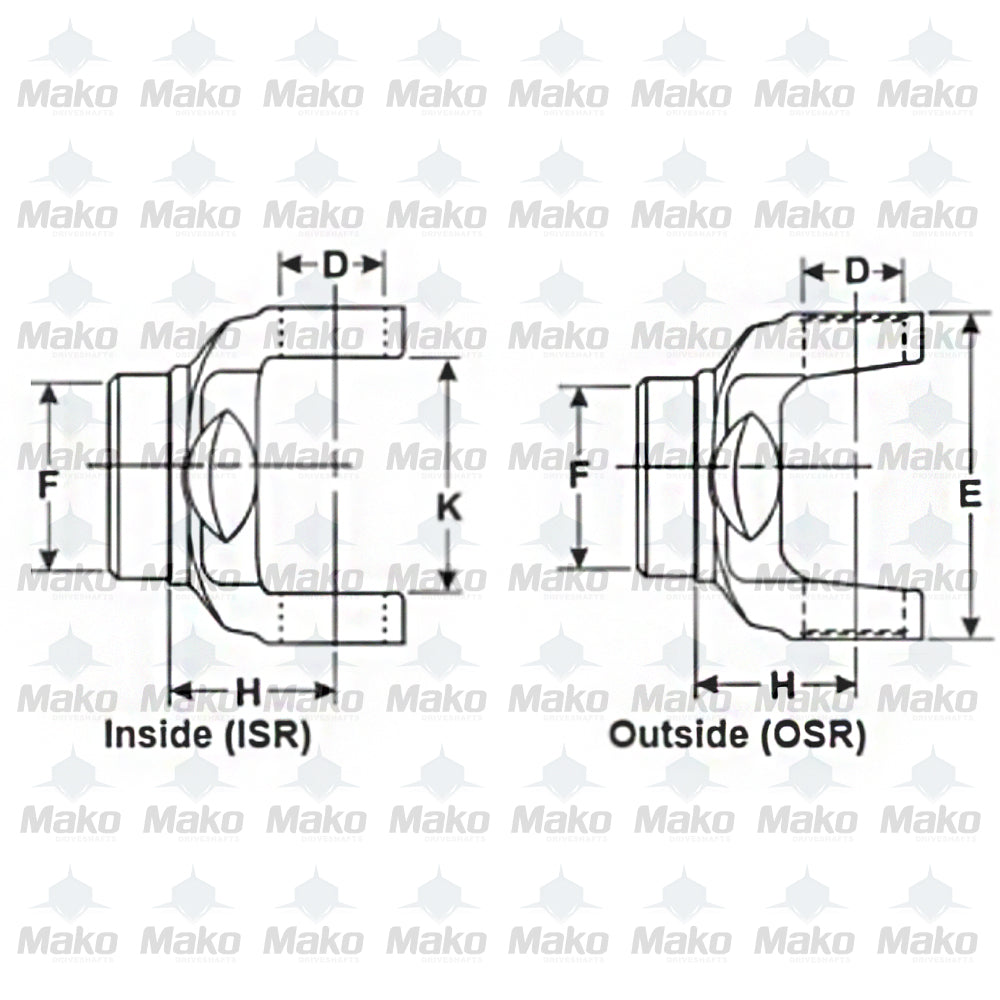

Outside Yoke Dimension (E) In. 3.875

Bearing Cap Diameter (D) In. 1.188

Fits Tube Diameter (In) 3.500

Fits Tube Wall (S=Seam W=Weld) .065-WELDED

Butt Diameter (F) In. 3.381

C/L To Weld (H) In. 1.812

Design SR

Material Steel

Joint Angle #1 20

Heavy duty Flange
