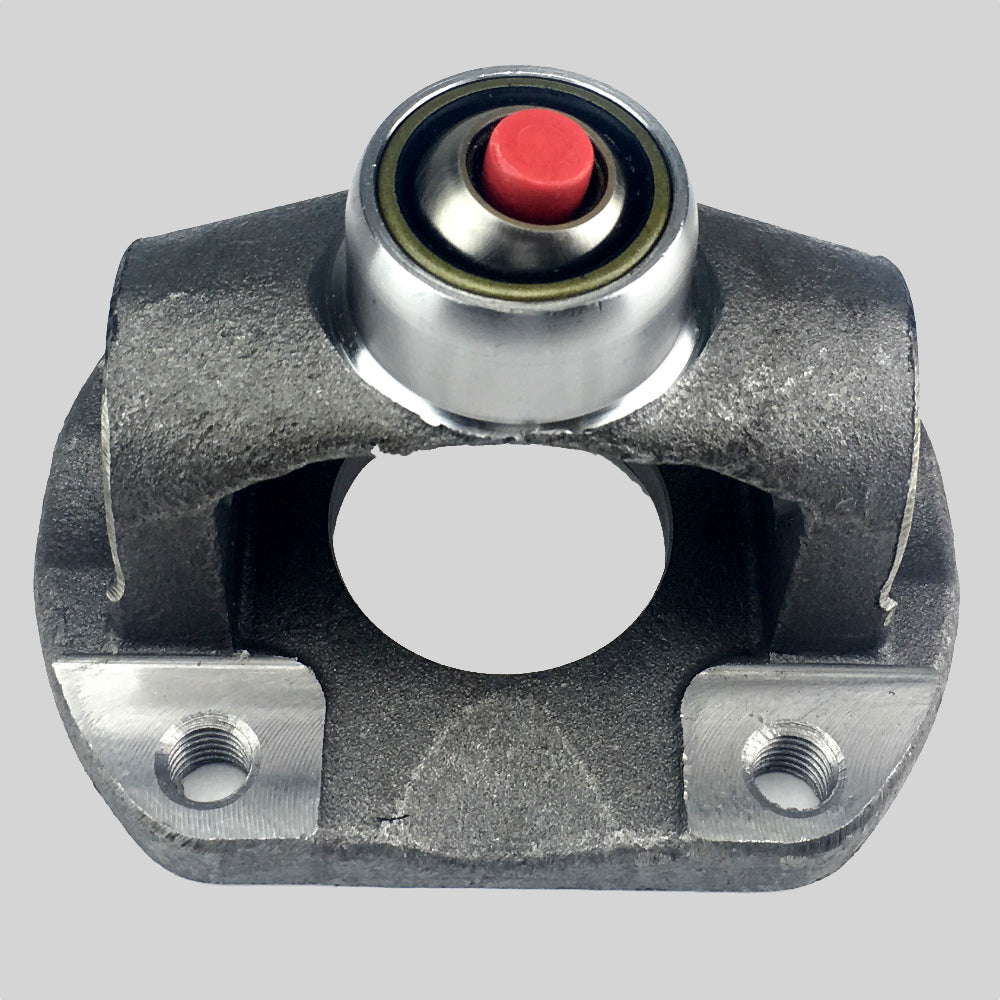

1350 Series 3-21-2024 CV Flange Transfer Case Rear Output F150 F250 F350 FORD
1350 Series 3-21-2024 CV Flange Transfer Case Rear Output F150 F250 F350 FORD
Brand: Mako
Couldn't load pickup availability
Double Cardan CV Flange Yoke 1350 series fits FORD
4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange
212024X / N3-83-024X
1350 CV Centering Flange
Bolt Circle - 4.25 inches measured diagonally
Pilot Diameter - 2 inches
Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)
Dodge Ram 2500
1994 - 2010
Dodge Ram 3500
1994 - 2010
Dodge Ram 1500
1994 - 2001
Ford Excursion
2000 - 2004
F-250 Super Duty
1999 - 2004
F-350 Super Duty
1999 - 2004
F-450 Super Duty
1999 - 2004
F-550 Super Duty
1999 - 2004
U-Joint Series 1350
Bolt Circle Diameter 4.250
Hole Pattern Width A 3.000
Hole Pattern Height B 3.000
Bolt Hole Diameter C M12X1.75 T
Pilot Diameter (Female standard, M = Male) D 2.000
Centerline of Joint to End of Spline E 1.625
Ball Stud Size 0.500
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
CV Head Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
