90-4-11-1 Mako Driveshaft End Yoke 34 Spline SPL90 Ø1.790x34
90-4-11-1 Mako Driveshaft End Yoke 34 Spline SPL90 Ø1.790x34
Brand: Mako
Couldn't load pickup availability

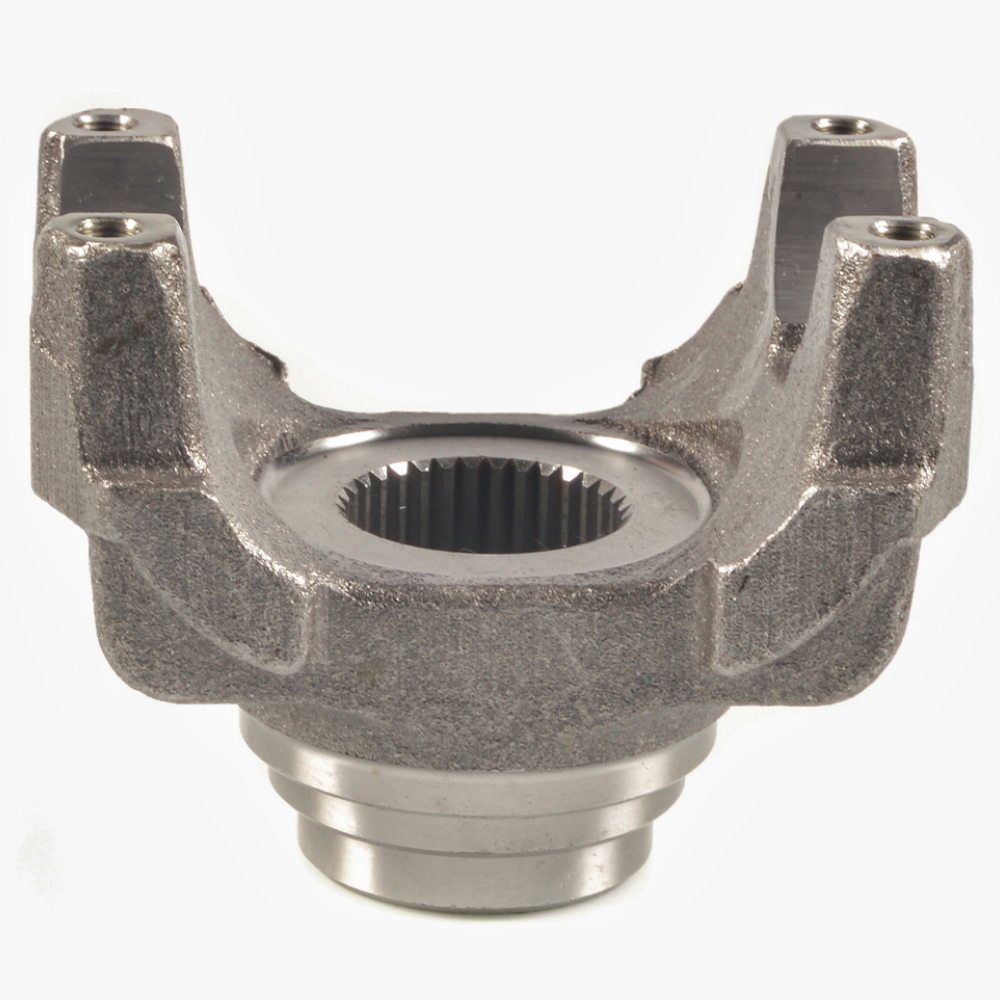

90-4-11-1 Drive Shaft End Yoke 34 Spline SPL90
Brand DSP
Series SPL90
Spline Count 34
Yoke Style BS
C/L To End Hub S 4.062
Type Splined Hole
Outside Yoke Dimension (In) E 5.375
Yoke Bearing Dimension (In) D 1.625
Major Diameter 1.790
Involute Spline I
Length Thru Hole Q 2.250
C-Bore Depth 0.500
Includes Slinger/Plug N
Assembly N
Material Steel
Joint Angle #1 15
C-Bore Diameter 1.810
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
End Yoke Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
