6.5-2-329-1 SPICER Flange Yoke 1810 Strap Style 8.000" Swing Diam 7.250BC 7.750M
6.5-2-329-1 SPICER Flange Yoke 1810 Strap Style 8.000" Swing Diam 7.250BC 7.750M
6.5-2-329-1 SPICER Flange Yoke 1810 Strap Style 8.000" Swing Diam 7.250BC 7.750M

6.5-2-329-1 SPICER Flange Yoke 1810 Strap Style 8.000" Swing Diam 7.250BC 7.750M

SKU: 6.5-2-329-1S
Regular price
$202.00
Sale price
$202.00
Shipping calculated at checkout.

Brand Spicer

Strap Style


Series 1810

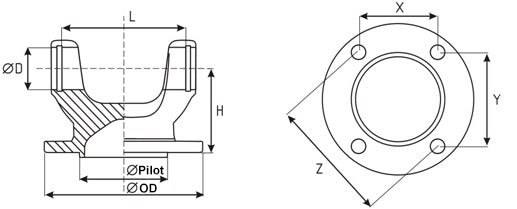

Flange Or Swing Dia. In.          (A) 8.000

Bolt Circle Dia. In.                    (B) 7.250

Bolt Hole Dia. In (B)         .438 - DRILLED

Number Of Bolt Holes 12

Pilot Dia. M=Male F=Female    (C) 7.750 - MALE

Flange Face To C/L In.             (G) 3.375

Material Steel

Outside Yoke Dimension In.     (E) 7.547

Yoke Bearing Dimension In.     (D) 1.938

Design Circular

Joint Angle #1 3

VMRS 024002016

Weight 12.5 LB

Country of Origin Mexico




Compatible with Universal Joints 5-281X / 5-676X - Contact us for a KIT!



Heavy duty Flange

Fast and Free Shipping

Superior Quality

One Year Warranty
