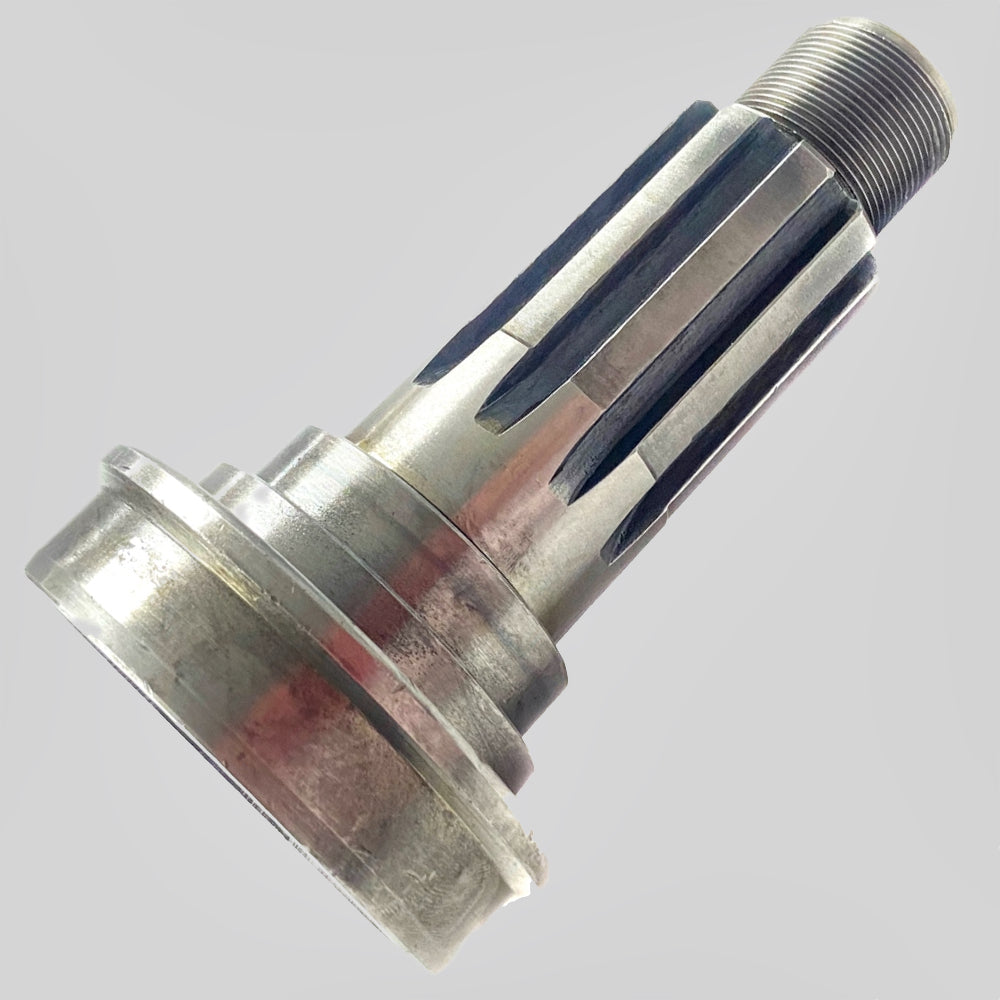

You are buying a Superior Quality Brand New Midship Stub Shaft
|
For Use With |
End Yoke Or Companion Flange |
|
Series |
1550-1610 |
|
Spline O.D. |
1.750 |
|
Number Of Splines |
10 |
|
Involute |
No |
|
Fits Tube Diameter |
3.500 |
|
Fits Tube Wall |
.095 |
|
Spline End To Brg Shoulder (Y) |
3.188 |
|
Spline End To Weld (K) In. |
4.281 |
|
Spline Length (L) In. |
2.000 |
|
Thread Size |
1.250-18 |
|
Shoulder Diameter (B) In. |
2.188 |
|
Shoulder Length (G) In. |
.812 |
|
Bearing Diameter (C) In. |
1.771 |
|
Butt Diameter |
3.234 |
|
Style |
2 |
|
Bearing Diameter (Max) |
1.7717 |
|
Bearing Diameter (Min) |
1.7712 |
