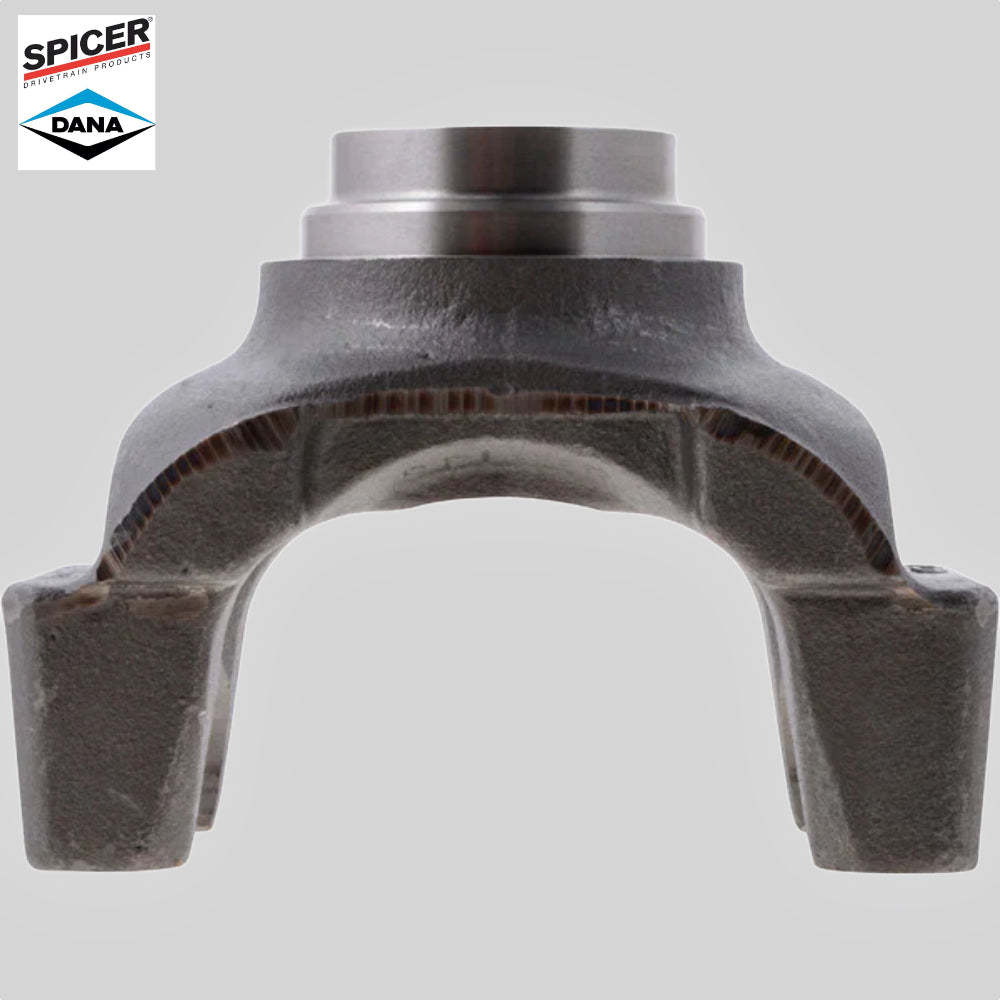

5-4-7171-1 SPICER Driveshaft End Yoke Splined Bore 1610 1.790" x 34 spline
5-4-7171-1 SPICER Driveshaft End Yoke Splined Bore 1610 1.790" x 34 spline
Brand: Spicer
Couldn't load pickup availability
Series 1610
Spline Count 34
Invoice END YOKE
Yoke Style HR
Hub Diameter R 2.188
C/L To End Hub S 4.125
Type Splined Hole
Outside Yoke Dimension (In) E 5.312
Yoke Bearing Dimension (In) D 1.875
Major Diameter 1.790
Involute Spline I
VMRS 022003072
Length Thru Hole Q 2.250
C-Bore Depth 0.500
Includes Slinger/Plug N
Assembly N
Material Steel
Joint Angle #1 22
C-Bore Diameter 1.810
Fast shipping from Florida
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
Share

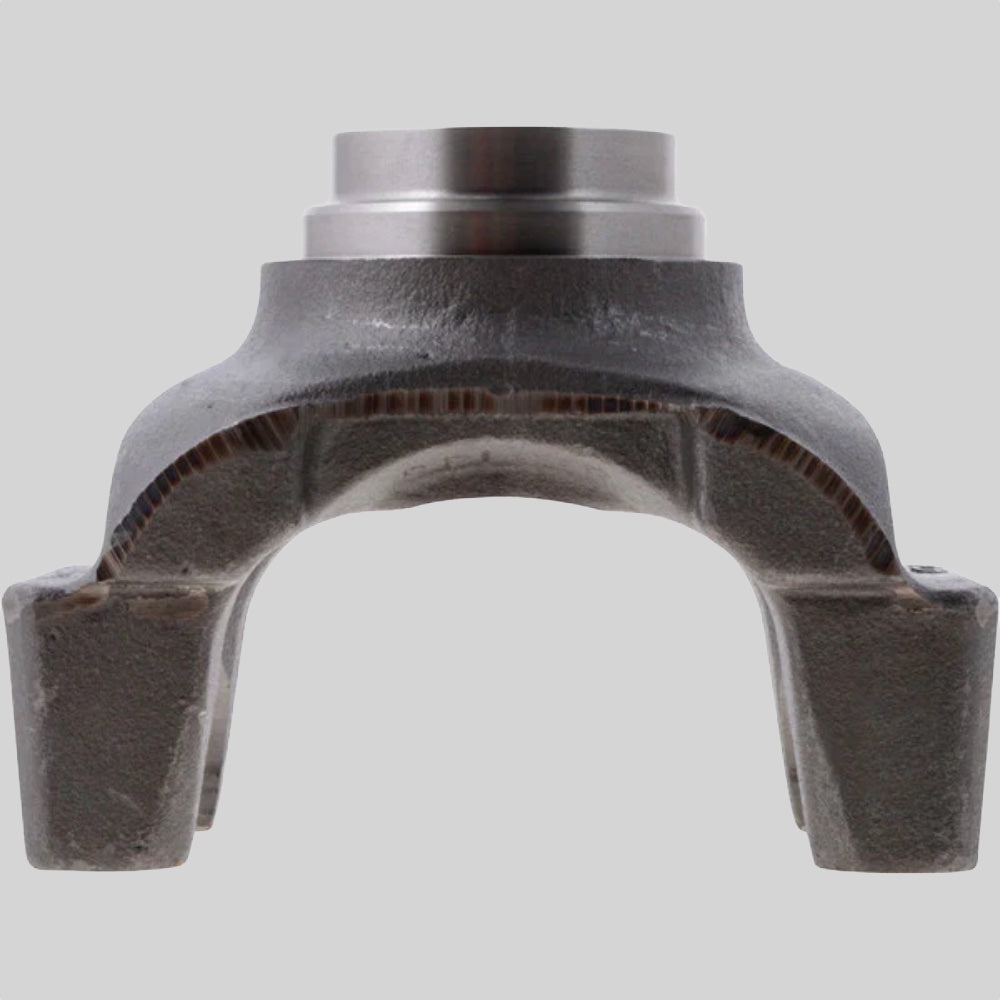

![5-4-7171-1 SPICER Driveshaft End Yoke Splined Bore 1610 1.790" x 34 spline](http://makodriveshafts.com/cdn/shop/files/5-4-7171-1S_2db378da-90d4-4c30-8b54-e55154dcd756.jpg?v=1718814402&width=1445)
![](http://makodriveshafts.com/cdn/shop/files/End_Yoke_Diagram_1000x2500_cf029a1d-bc76-4e89-a582-4ea2366cbbaa.jpg?v=1698013668&width=1500)
End Yoke Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
