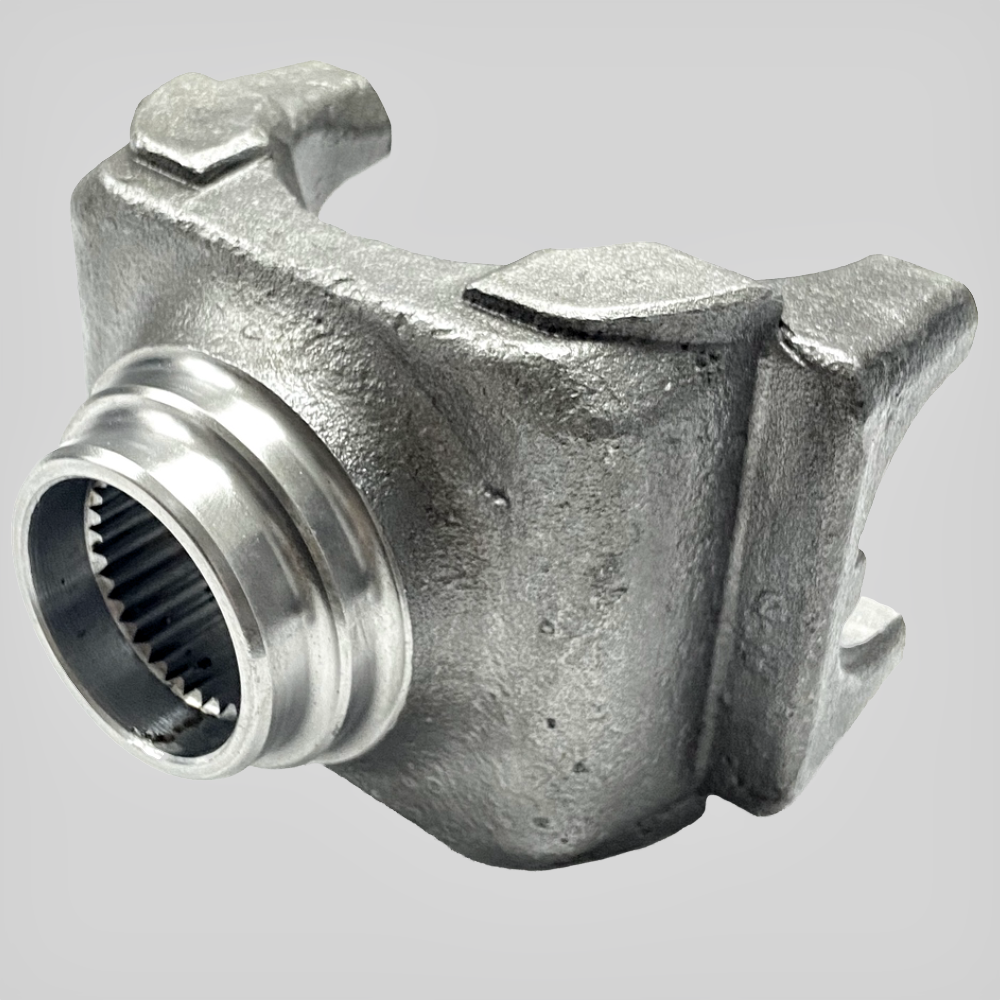

5-4-7171-1 Drive Shaft End Yoke Splined Bore 1610 Series 1.790" x 34 spline
5-4-7171-1 Drive Shaft End Yoke Splined Bore 1610 Series 1.790" x 34 spline
5-4-7171-1 Drive Shaft End Yoke Splined Bore 1610 Series 1.790" x 34 spline

5-4-7171-1 Drive Shaft End Yoke Splined Bore 1610 Series 1.790" x 34 spline

SKU: 5-4-7171-1-EB-USA-M--1-1
Regular price
$78.00
Sale price
$78.00
Shipping calculated at checkout.

You are buying a Brand New End Yoke

Series

1610

Spline Count

34

Yoke Style

HR

Hub Diameter R

2.188

C/L To End Hub S

4.125

Type

Splined Hole

Outside Yoke Dimension (In) E

5.312

Yoke Bearing Dimension (In) D

1.875

Major Diameter

1.790

Involute Spline

I

Length Thru Hole Q

2.250

C-Bore Depth

0.500

Includes Slinger/Plug

N

Assembly

N

Material

Steel

Joint Angle #1

22

C-Bore Diameter

1.810

Package Qty

1

Weight

7.45 LB

Compatible with Universal Joints: 5-674X

and Strap kit: 6.5-70-18X

Grease: SPL1051

Contact us for a KIT


Fast and Free shipping to USA Continental

Superior Quality Guaranteed

One Year Warranty
