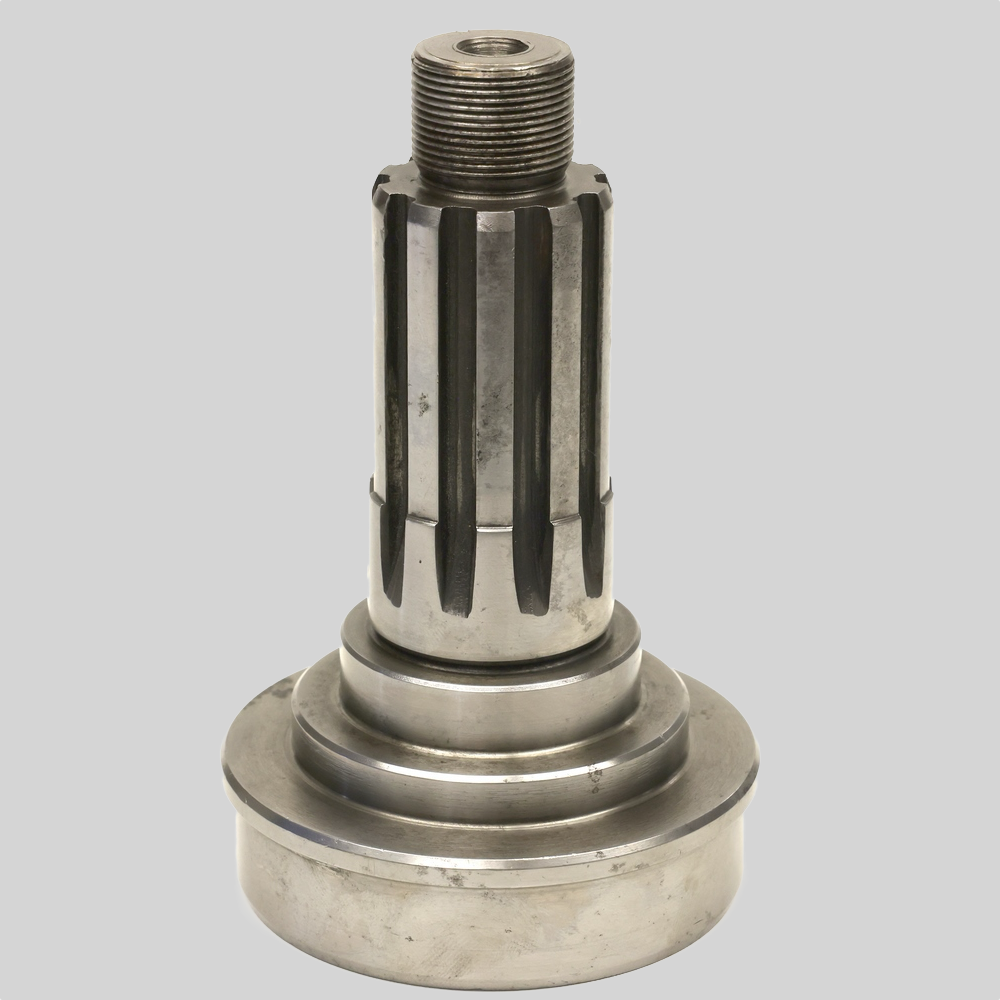

You are buying a Brand-New Midship Stub Shaft
|
For Use With |
End Yoke Or Companion Flange |
|
Spline O.D. |
1.500 |
|
Number Of Splines |
10 |
|
Involute |
No |
|
Fits Tube Diameter |
3.500 |
|
Fits Tube Wall |
.095 |
|
Spline End To Brg Shoulder (Y) |
2.969 |
|
Spline End To Weld (K) In. |
4.031 |
|
Spline Length (L) In. |
2.000 |
|
Thread Size |
1.000-20 |
|
Shoulder Diameter (B) In. |
1.938 |
|
Shoulder Length (G) In. |
.812 |
|
Bearing Diameter (C) In. |
1.574 |
|
Butt Diameter |
3.321 |
|
Style |
2 |
|
Bearing Diameter (Max) |
1.5748 |
|
Bearing Diameter (Min) |
1.5743 |
