4-4-2451-1 Driveshaft End Yoke Splined Bore 1550 Series 2.000 x 10 spline
4-4-2451-1 Driveshaft End Yoke Splined Bore 1550 Series 2.000 x 10 spline
Brand: Mako
Couldn't load pickup availability
|
Series |
1550 |
|
Spline Count |
10 |
|
Yoke Style |
BS |
|
Hub Diameter R |
2.746 |
|
C/L To End Hub S |
4.500 |
|
Type |
Splined Hole |
|
Outside Yoke Dimension (In) E |
4.964 |
|
Yoke Bearing Dimension (In) D |
1.375 |
|
Major Diameter |
2.000 |
|
Involute Spline |
N |
|
Length Thru Hole Q |
2.453 |
|
Material |
Steel |
|
Joint Angle #1 |
22 |
|
Package Qty |
1 |
|
Weight |
5.56 LB |
Compatible with Universal Joints 5-155X and SPL70X
and Strap kit 3-70-38X
Contact us for a KIT
Fast shipping
Superior Quality Guaranteed
One Year Warranty
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase

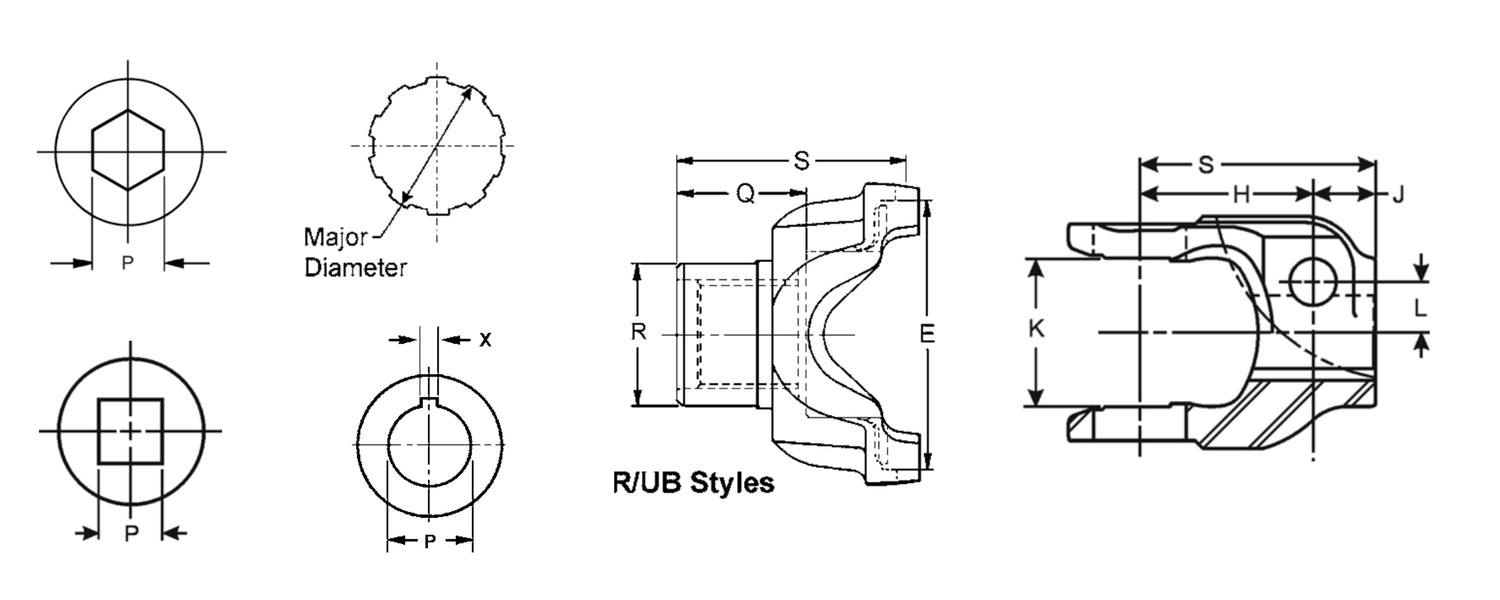

End Yoke Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
