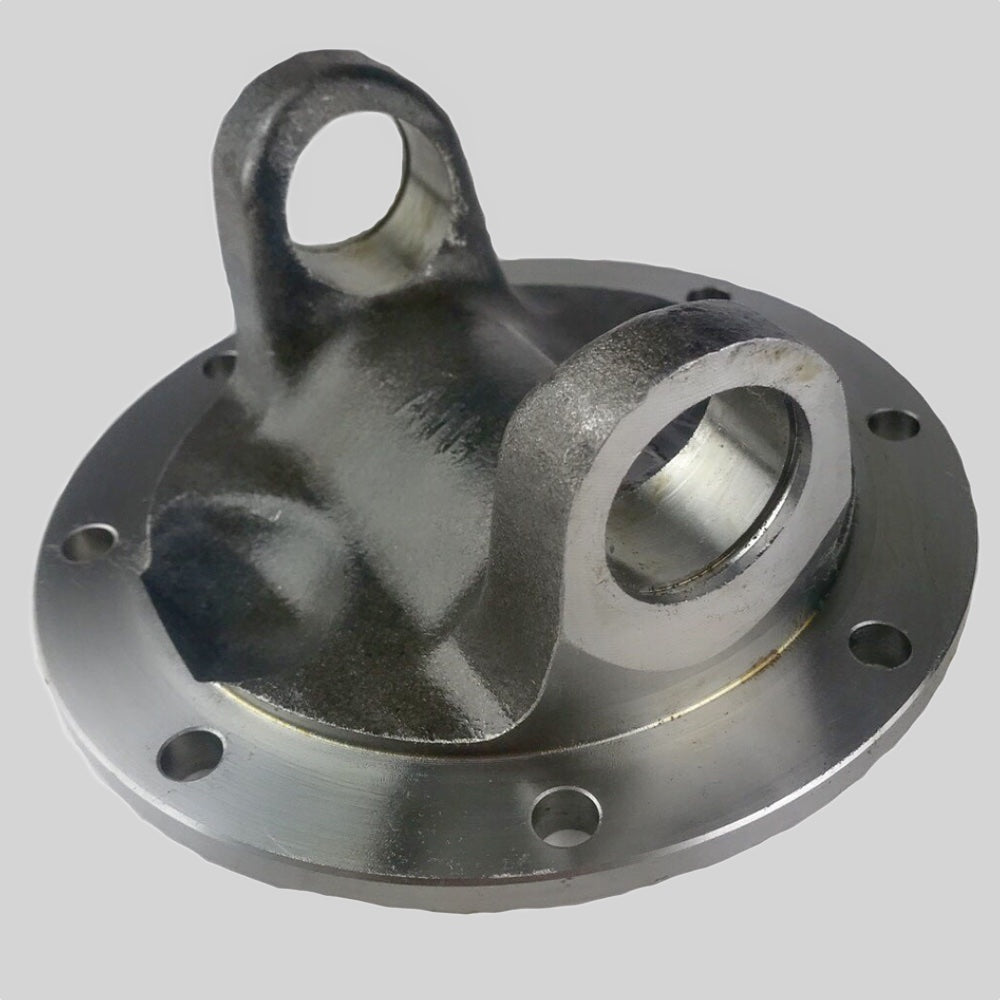

4-2-689 Driveshaft Flange Yoke 1550 8x .375 Holes on 6.125BC, 6.625M pilot
4-2-689 Driveshaft Flange Yoke 1550 8x .375 Holes on 6.125BC, 6.625M pilot
Couldn't load pickup availability
4-2-689 Driveshaft Flange Yoke 1550
Flange Specs below – AAP DSP 4-2-689
|
Series |
1550 |
|
Flange Or Swing Dia. In. (A) |
6.875 |
|
Bolt Circle Dia. In. (B) |
6.125 |
|
Bolt Hole Dia. In (B) |
.375 - DRILLED |
|
Number Of Bolt Holes |
8 |
|
Pilot Dia. M=Male F=Female (C) |
6.625 - MALE |
|
Flange Face To C/L In. (G) |
2.000 |
|
Outside Yoke Dimension In.(E) |
5.25 |
|
Yoke Bearing Dimension In. (D) |
1.375 |
|
Design |
Circular |
|
Joint Angle #1 |
22 |
