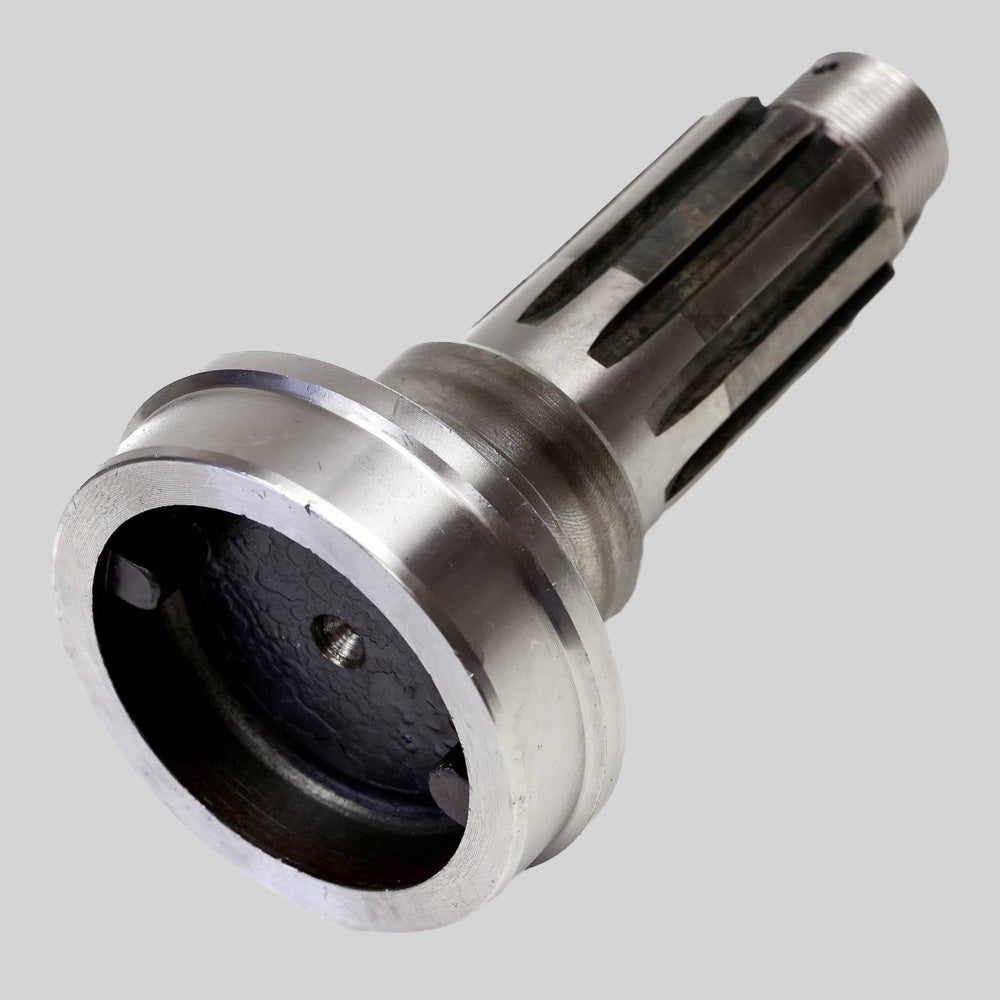

3-54-611 Midship Spline 1410 Series for Tube 3.000 x .083 Spline to Weld End 4"
3-54-611 Midship Spline 1410 Series for Tube 3.000 x .083 Spline to Weld End 4"
Brand: Mako
Couldn't load pickup availability
For Use With End Yoke Or Companion Flange
Series 1410
Material Steel
Spline O.D. 1.375
Number Of Splines 10
Involute N
Fits Tube Diameter 3.000
Fits Tube Wall .083
Spline End To Brg Shoulder (Y) 2.656
Spline End To Weld (K) In. 4.000
Spline Length (L) In. 1.688
Thread Size 1.000-20
Shoulder Diameter (B) In. 1.719
Shoulder Length (G) In. 1.125
Bearing Diameter (C) In. 1.378
Butt Diameter 2.845
Style 2
Bearing Diameter (Max) 1.3784
Bearing Diameter (Min) 1.3779
Fast shipping from Florida.
Care Instructions
Care Instructions
All of our parts are packaged to the best of our ability. If you receive an item with inferior packaging, please let us know so that we can improve the delivery and our service to you as the customer
Shipping & Returns
Shipping & Returns
This item can be returned within 30 days of purchase. You are responsible for returning the item. No returns are accepted if rubber boots have been torn or damaged during installation. Please contact us if you are unsure of fitment prior to purchase
![3-54-611 Midship Spline 1410 Series for Tube 3.000 x .083 Spline to Weld End 4"](http://makodriveshafts.com/cdn/shop/files/3-54-611.jpg?v=1715693125&width=1445)
![3-54-611 Midship Spline 1410 Series for Tube 3.000 x .083 Spline to Weld End 4"](http://makodriveshafts.com/cdn/shop/products/midshipdiagram_862bf0e2-537f-441c-8f57-05bb3bf2ae02.jpg?v=1715693125&width=1445)
![](http://makodriveshafts.com/cdn/shop/files/Correct_2023_Slip_Yokes_Splines_Yoke_Shafts.jpg?v=1697582509&width=1500)
Slip Component Diagram
-
-
Check the OEM # of your part before you purchase
If you have no idea what the original part number is for your Driveshaft, CV Joint or Component - contact us for the appropriate diagram or for assistance. We are here to help!
