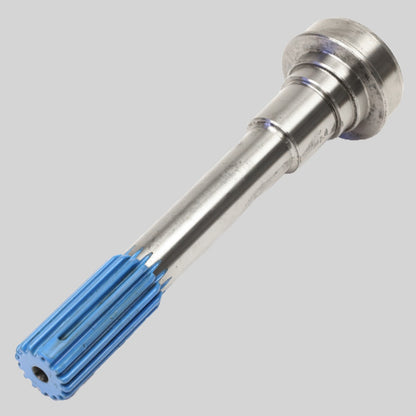

3-53-1951 Driveshaft Midship Stub Shaft 1.500" x 15/16 Spline 1310-1410 Series
3-53-1951 Driveshaft Midship Stub Shaft 1.500" x 15/16 Spline 1310-1410 Series

3-53-1951 Driveshaft Midship Stub Shaft 1.500" x 15/16 Spline 1310-1410 Series

SKU: 3-53-1951
Regular price
$66.33
Sale price
$66.33
Shipping calculated at checkout.

You are Buying a Brand-New Midship Stub Shaft



Brand

DSP

For Use With

Outboard Slip Yoke

Series

1310-1410

Spline O.D.

1.5000

Number Of Splines

15/16

Involute

N

Fits Tube Diameter

3

Fits Tube Wall

0.083

Spline End To Brg Shoulder (Y)

9.500

Spline End To Weld (K) In.

10.625

Spline Length (L) In.

3.000

Shoulder Diameter (B) In.

1.810

Shoulder Length (G) In.

0.875

Bearing Diameter (C) In.

1.575

Butt Diameter

2.845

Style

2

Bearing Diameter (Max)

1.5752

Bearing Diameter (Min)

1.5747

Bearing Diameter Length

1.5

Bearing Diameter Radius

0.19



Superior Quality

Fast and Free shipping to US Contiguous

No hassle returns

One year warranty
