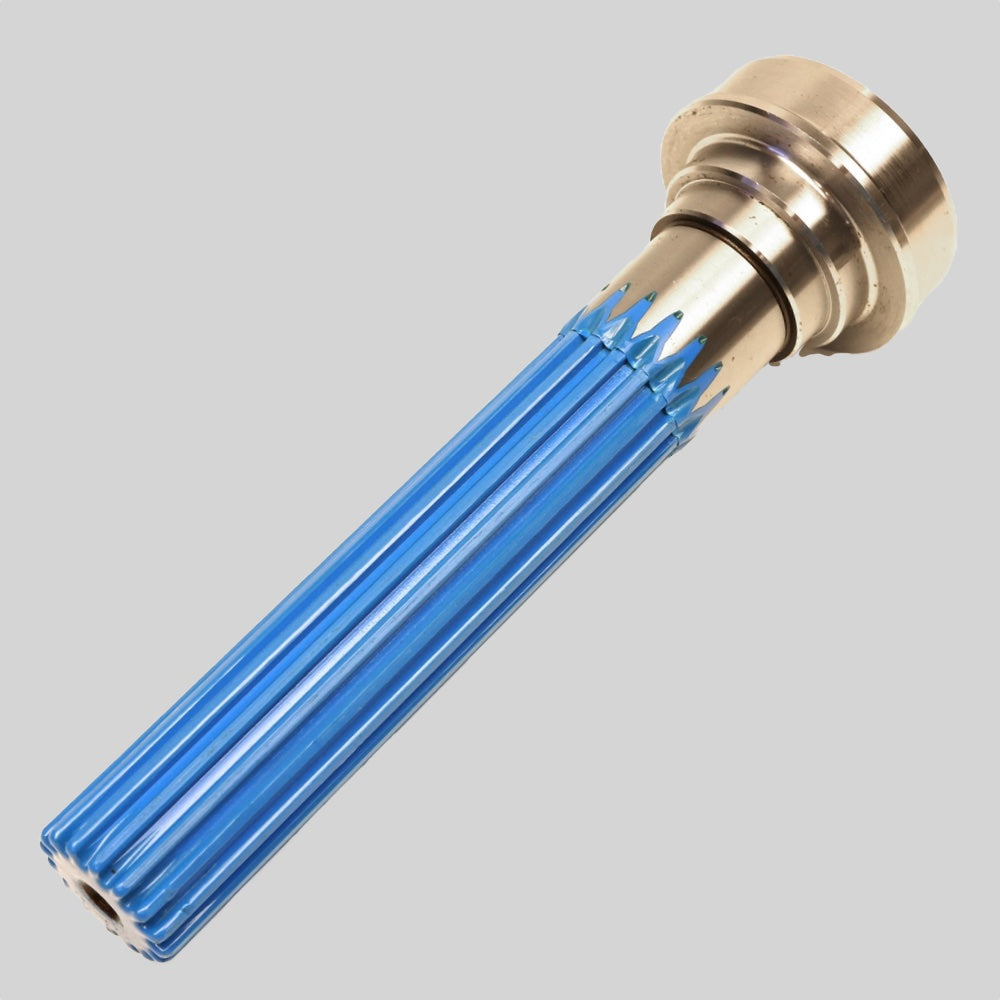

3-53-1531 Driveshaft Midship Stub Shaft 1310-1410 Series fits Tube Dia 3.000x083
3-53-1531 Driveshaft Midship Stub Shaft 1310-1410 Series fits Tube Dia 3.000x083

3-53-1531 Driveshaft Midship Stub Shaft 1310-1410 Series fits Tube Dia 3.000x083

SKU: 3-53-1531
Regular price
$52.00
Sale price
$52.00
Shipping calculated at checkout.

Splined Midship Tube Shaft 1.500x16 spline, Ø3.000 X .083 tube 1.575" Bearing




To be used with an Outboard Slip Yoke




Brand

DSP

For Use With

Outboard Slip Yoke

Series

1310-1410

Material

Steel

Spline O.D.

1.5000

Number Of Splines

16

Involute

N

Fits Tube Diameter

3

Fits Tube Wall

0.083

Spline End To Brg Shoulder (Y)

8.080

Spline End To Weld (K) In.

9.200

Spline Length (L) In.

6.580

Shoulder Diameter (B) In.

1.810

Shoulder Length (G) In.

0.875

Bearing Diameter (C) In.

1.575

Butt Diameter

2.845

Style

1

Bearing Diameter (Max)

1.5752

Bearing Diameter (Min)

1.5747

Bearing Diameter Length

1.5
