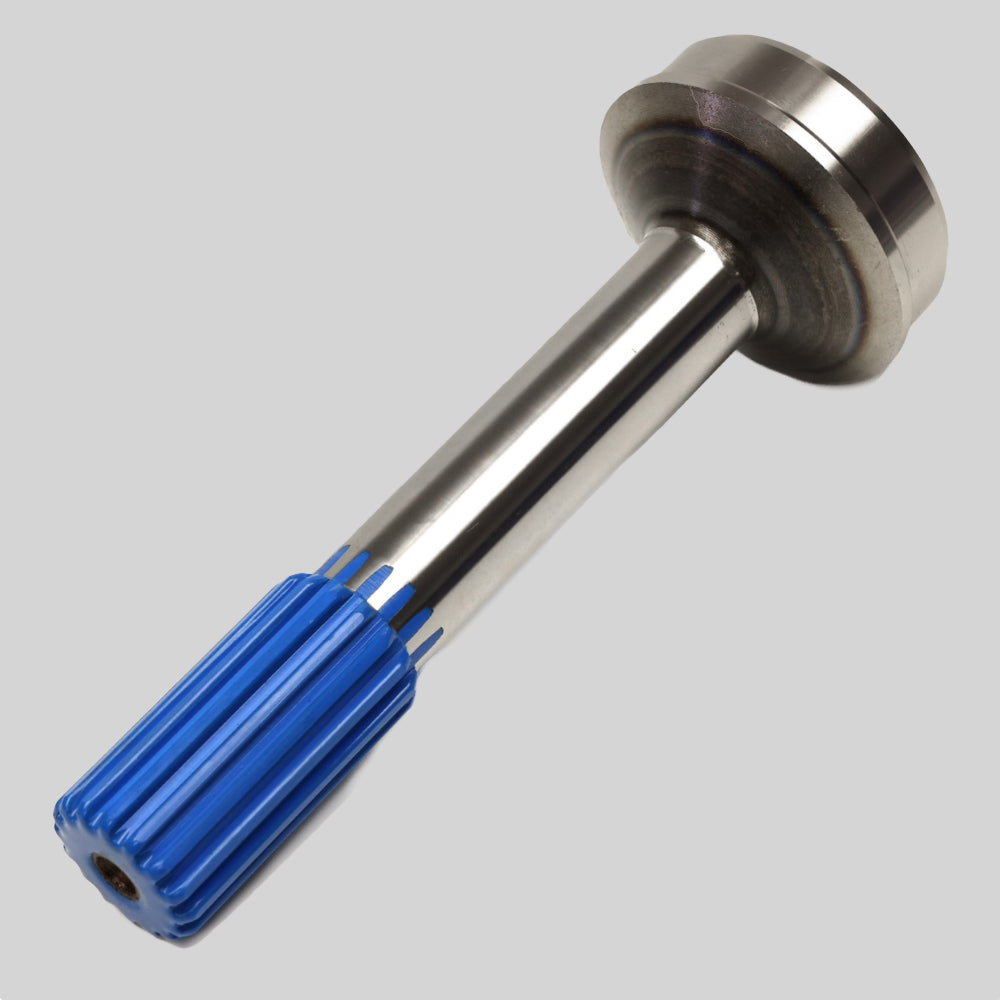

3-40-1871 Stub Shaft 1410-1480 Series 1.562x16 Spline - 3.500 X .083 Tube
3-40-1871 Stub Shaft 1410-1480 Series 1.562x16 Spline - 3.500 X .083 Tube
3-40-1871 Stub Shaft 1410-1480 Series 1.562x16 Spline - 3.500 X .083 Tube

3-40-1871 Stub Shaft 1410-1480 Series 1.562x16 Spline - 3.500 X .083 Tube

SKU: 3-40-1871
Regular price
$60.00
Sale price
$60.00
Shipping calculated at checkout.

You are buying a Brand New Driveshaft Stub Shaft



Series

1410-1480

Glidecote Spline

Y

Major Diameter

1.562

Spline Count

16

Involute Spline

N

Fits Tube Diameter

3.500

Fit Tube Wall Thickness

.083

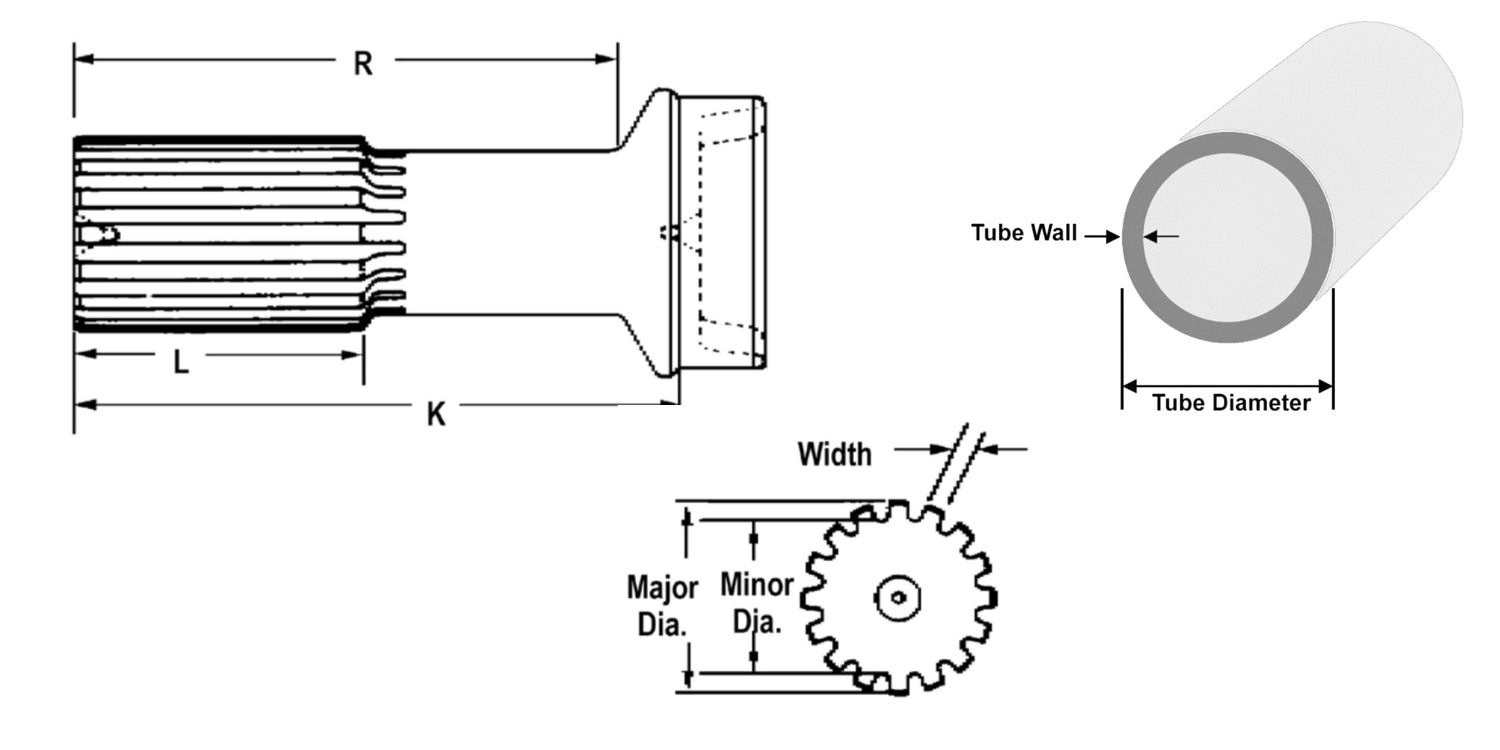

End Of Spline To Weld (K)

8.750

Length Of Spline (L)

3.000

End Of Spline To Radius (R)

7.810

Butt Diameter

3.345

Neck Diameter (Max)

1.305

Package Qty

1

Weight

4.89 LB
