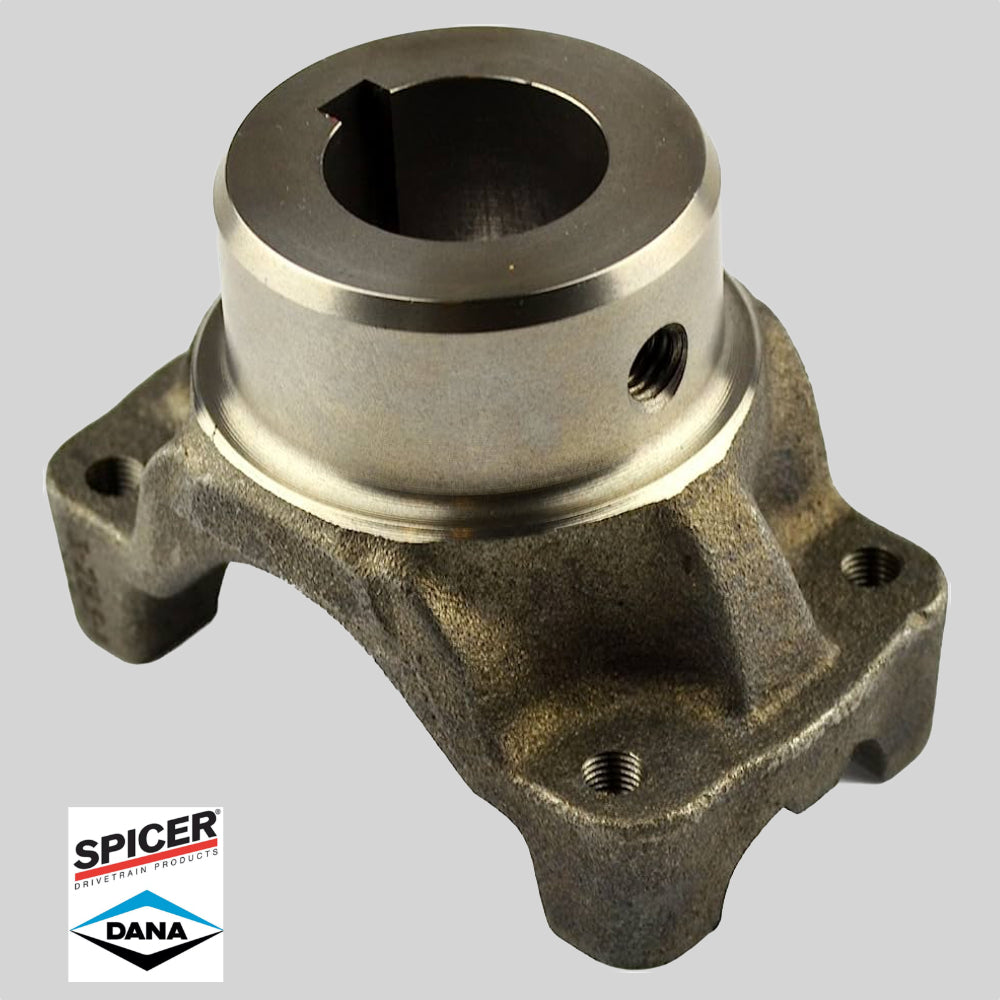

3-4-283-1 Spicer End Yoke Round Bore 1350 Series 1.250 Bore 3.000" C/L to End
3-4-283-1 Spicer End Yoke Round Bore 1350 Series 1.250 Bore 3.000" C/L to End
Brand: Spicer
Made in USA
Brand Spicer
Series 1350
Invoice END YOKE
Yoke Style BS
Hub Diameter R 2.250
C/L To End Hub S 3.000
Type Straight Round Hole
Outside Yoke Dimension (In) E 3.625
Yoke Bearing Dimension (In) D 1.188
Involute Spline N
Hole Diameter (In) P 1.250
Sae Keyway Width (In) X 0.314
Set Screw Hole Diameter (In) 0.375
Keyway Location W 12
Set Screw Location W 6
VMRS 022003072
Length Thru Hole Q 1.500
Material Steel
Joint Angle #1 22
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Fast shipping from Florida.
