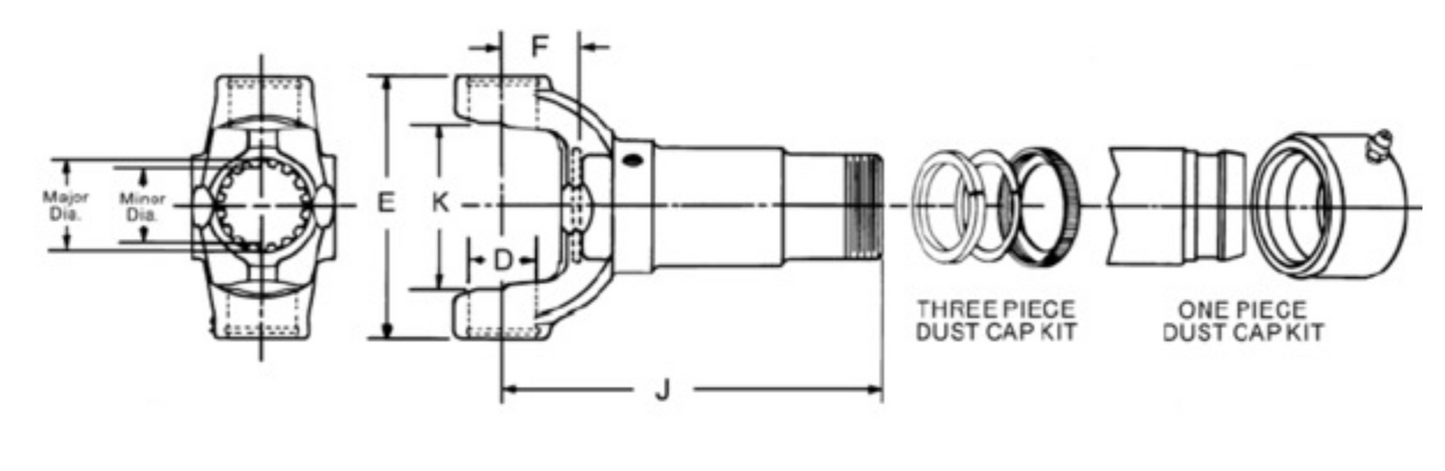

3-3-488KX Driveshaft Slip Yoke 1350 series 1.500x16 spline 7.312 Center to End
Slip Yoke Specs Below
|
Brand |
DSP |
|
Series |
1350 |
|
Material |
Steel |
|
Outside Yoke Dimension (E) In. |
3.875 |
|
Bearing Cap Diameter (D) In. |
1.188 |
|
C/L To End Of Spline (J) In. |
7.312 |
|
C/L To Face Of Plug (F) In. |
1.188 |
|
Spline O.D. |
1.500 |
|
No. Of Splines |
16 |
|
Involute |
N |
|
Style |
SR |
|
Joint Angle #1 |
20.0 |
Can be used with: 5-178X, 5-1350X, SPL30-1X
